Intelligent Aluminum Door and Window Production Line

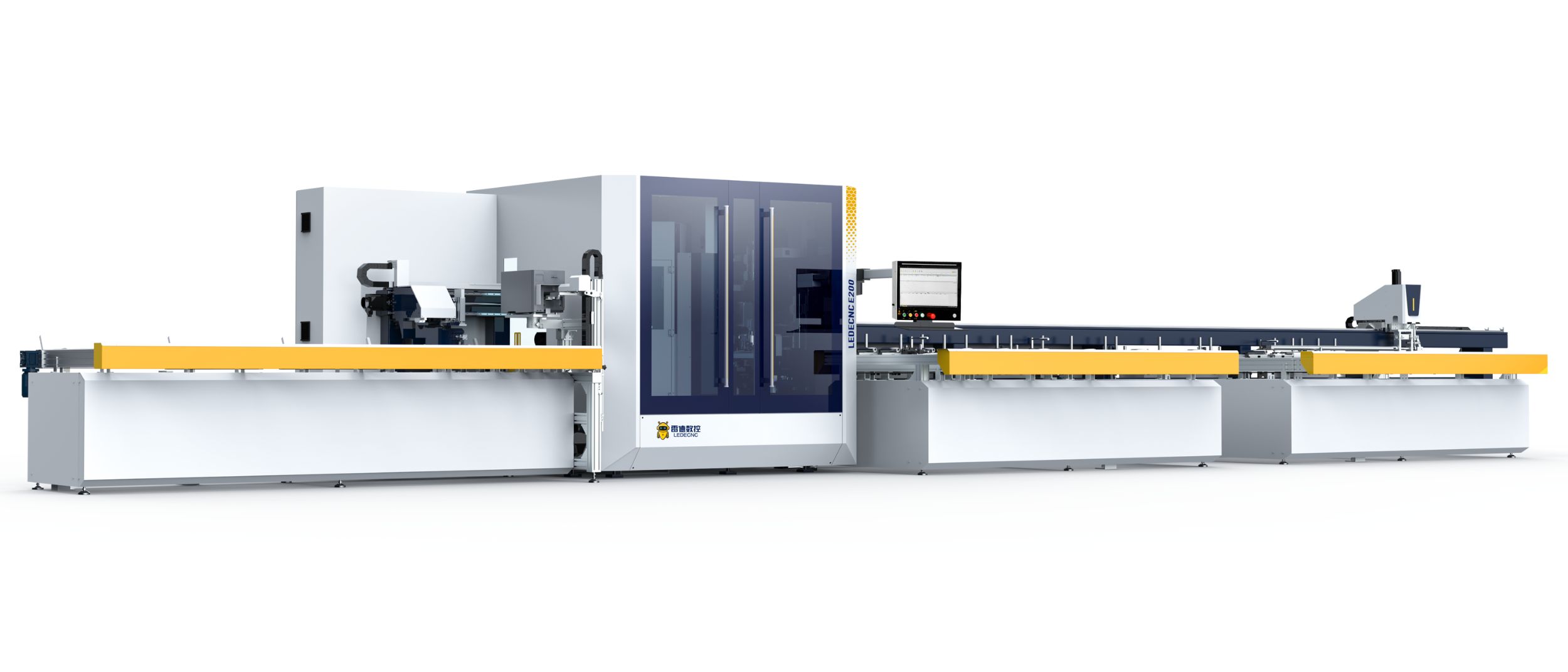

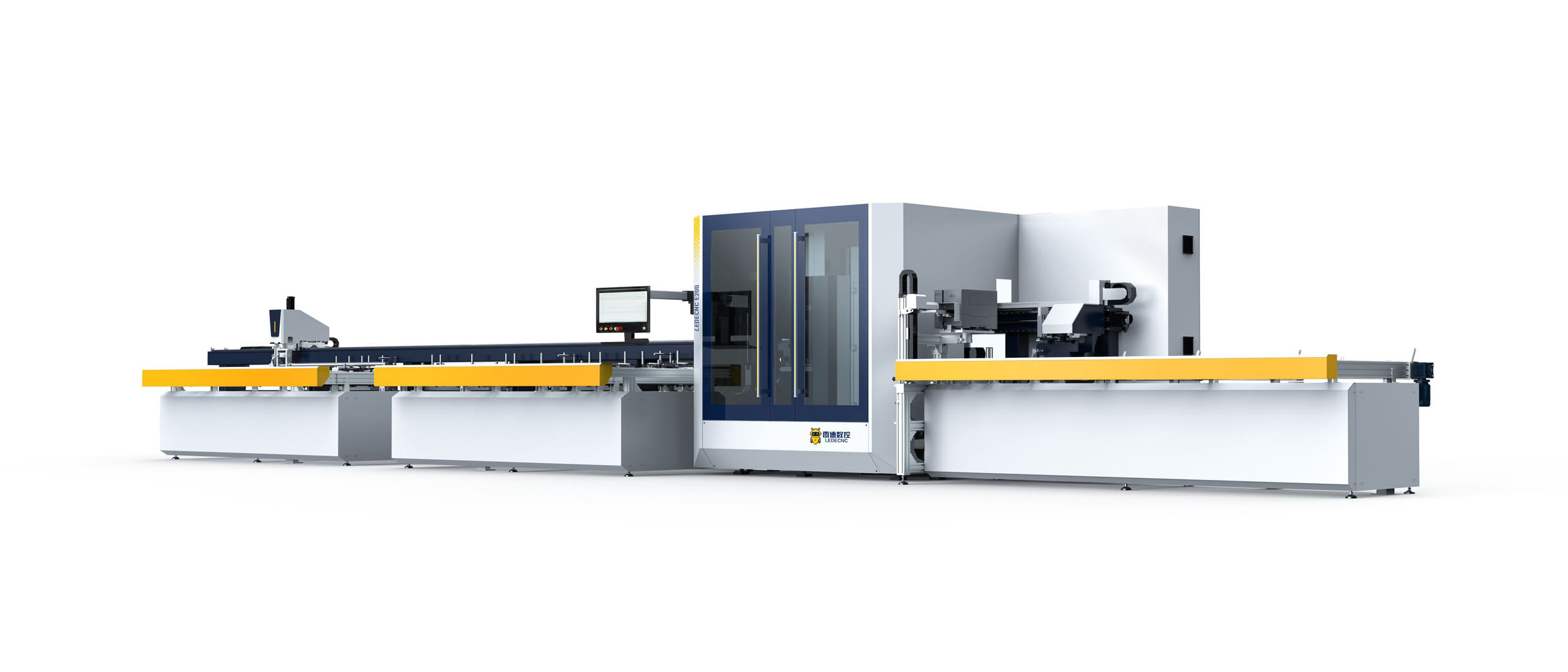

UX260 Versaframe CNC Machining Center with Laser

Versaframe Cnc Machining Center with Laser

Model: UX 260

UX260 – A High-Performance Laser-Equipped Cutting and Milling Machining Center.

Designed for milling, drilling, cutting, and laser machining operations on aluminum and light alloy profiles, the UX260 combines advanced automation, precision, and efficiency for modern manufacturing needs.

Key Features:

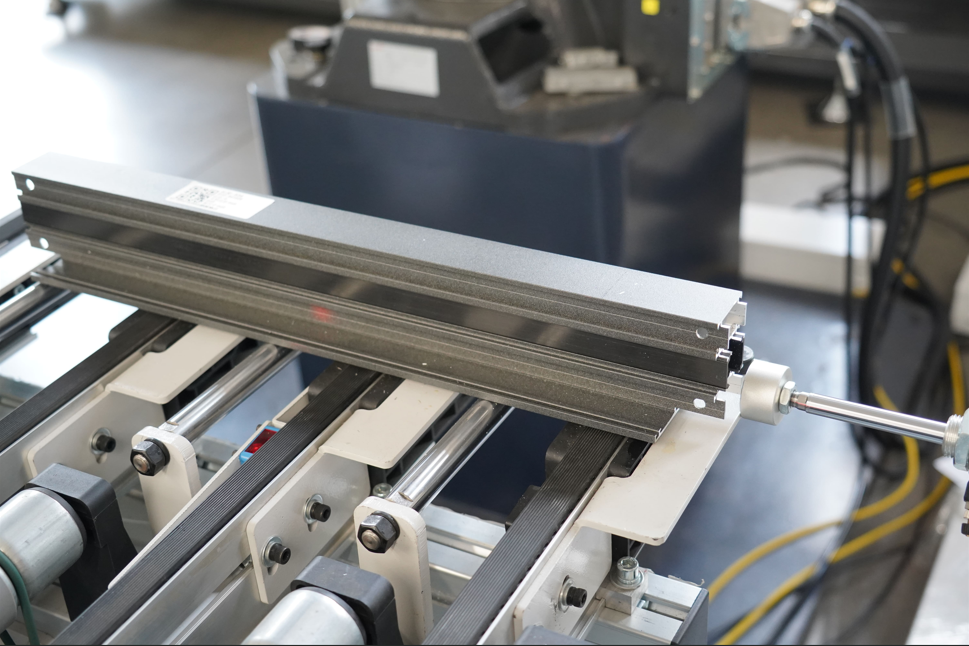

  • Automatic Loading and Feeding System: Utilizes linear direct drive motor technology for seamless operation.
  • Multi-Functional Machining Modules:
    • Milling Module: 4-axis CNC milling with four electric spindles for simultaneous multi-surface machining.
    • Cutting Module: 600 mm diameter saw blade with three-axis CNC-controlled movement for synchronized cutting and milling.
    • Laser Processing: Two high-precision laser units for marking and milling assistance.
  • End Milling Function (Optional): Modular horizontal cutting and end milling unit with a 350 mm saw blade and ±90° cutting range.
  • Automatic Unloading System: Transfers finished profiles to the unloading magazine, supporting lengths up to 4000 mm.
  • Fully Enclosed Central Cabinet: Ensures soundproofing and operator safety.

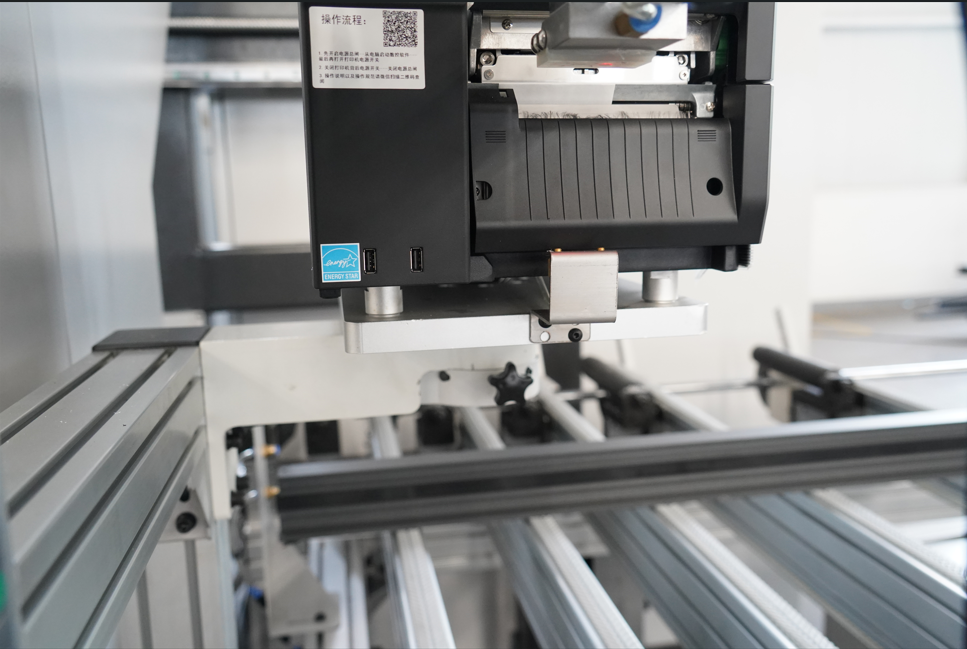

  • Automatic Labeling: Servo motor-driven labeling system minimizes manual intervention.

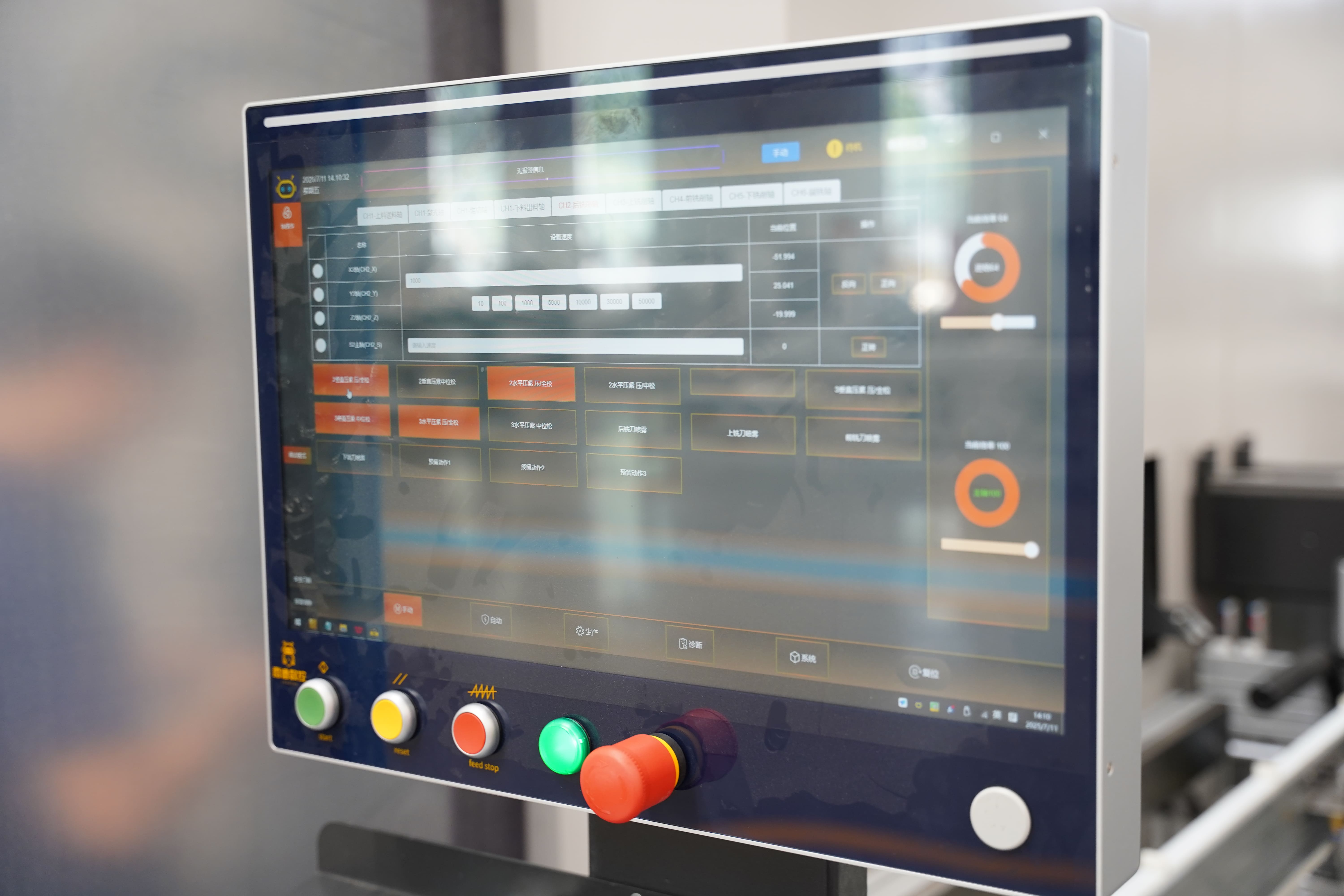

  • Smart Integration and High Efficiency: Simultaneous operation of four spindles and cutting processes for maximum productivity.

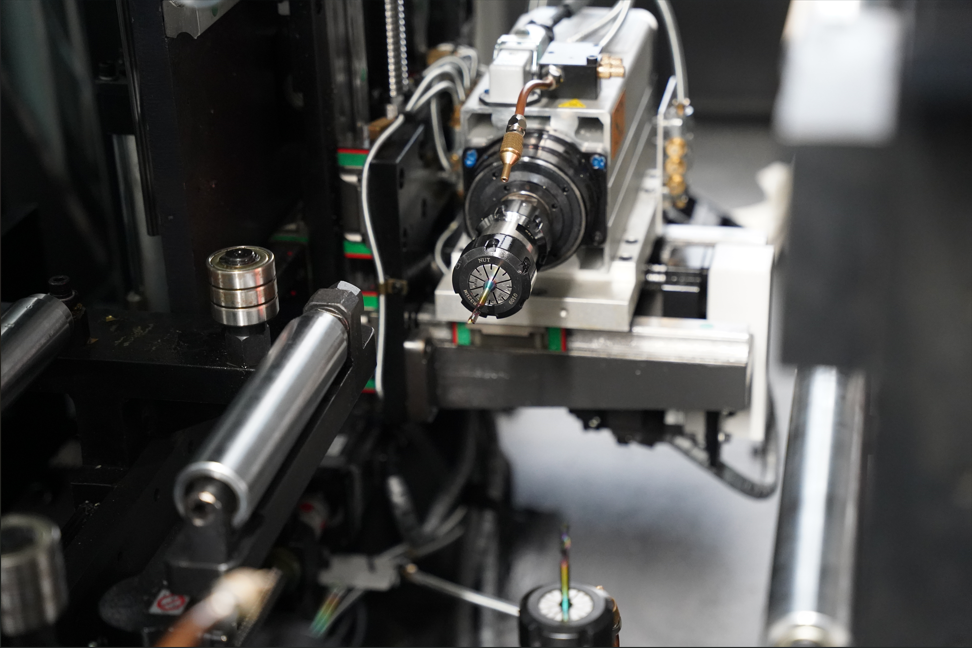

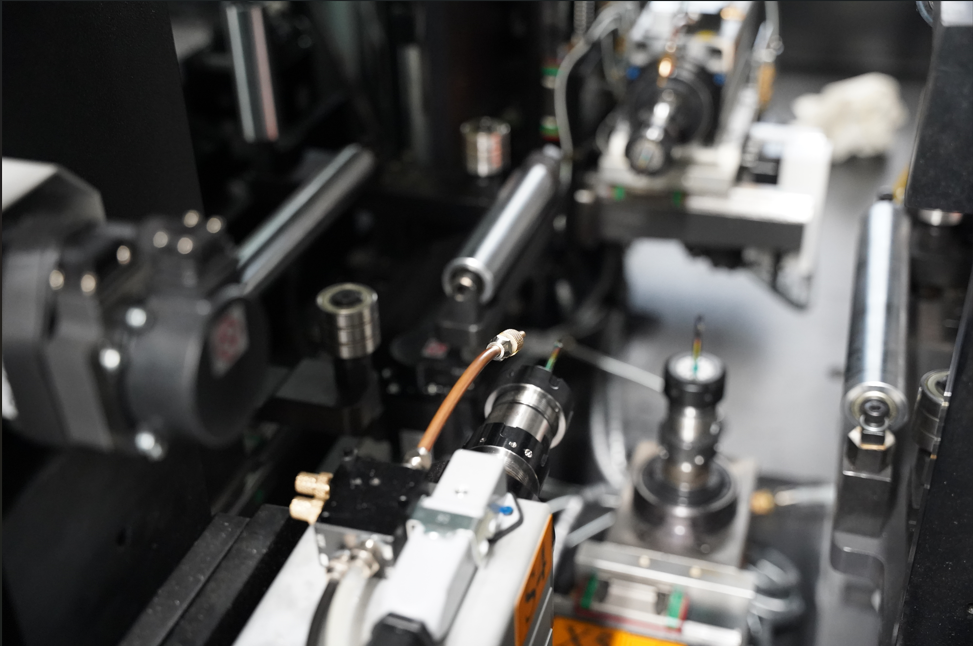

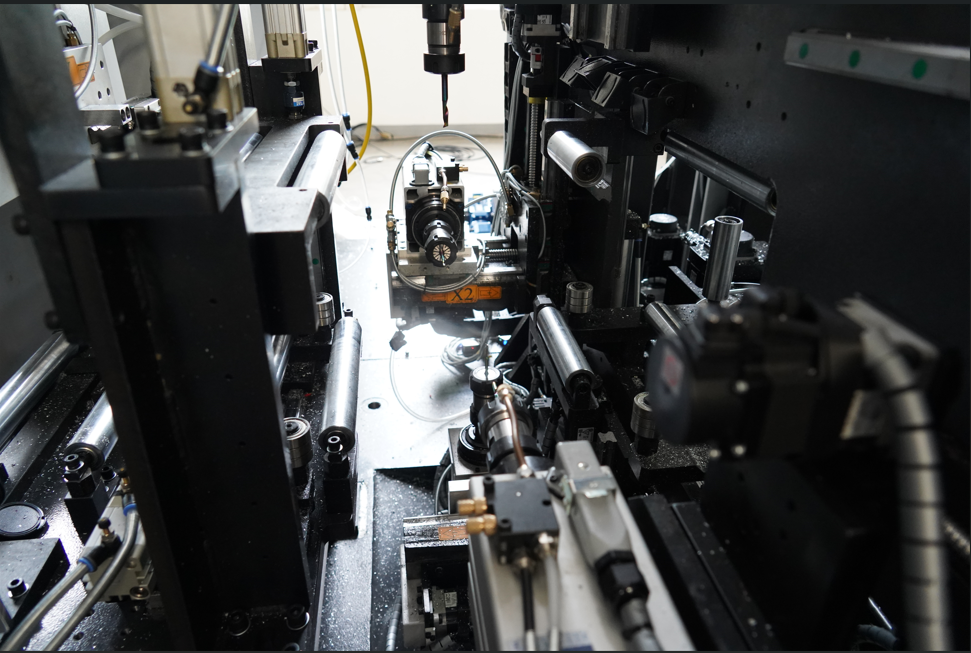

Four Electric Spindles
Laser Unit

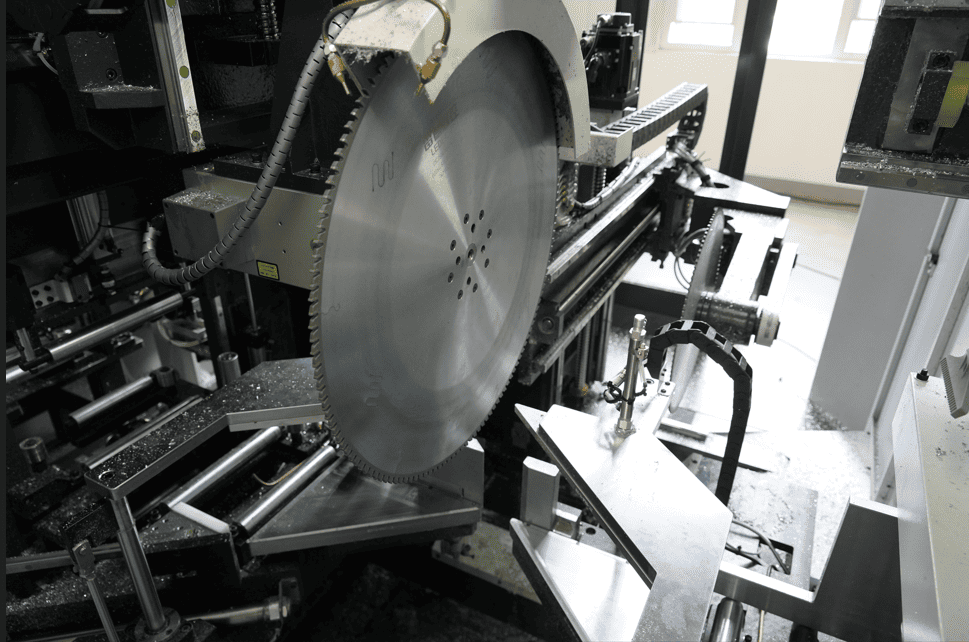

Cutting Unit

Specifications:

Machining Specifications Parameter Value
Max. Profile Cross-Section W×H = 190×260 mm
Min. Profile Cross-Section (depending on gripper position) W×H = 30×20 mm
Raw profile length L = 600–7,000 mm
Finished part length L = 300–7,000 mm
Feed Magazine Parameter Value
Number of swing arms 4
Mounting positions 7
Infeed Parameter Value
Drive Linear
Motorized gripper adjustment Y/Z
Gripper rotation Standard
Residual piece measurement Optional
Residual piece processing Fully automatic
Machining Station Parameter Value
Axes 5
Router spindles 4 (servo-assisted)
Laser 2 (1.5KW cutting and 0.03KW engraving)
Saw Parameter Value
Axes 3
Saw blades (diameter) 1*600mm (optional)
Sawing angles 40° - 140°
Notching Optional
Outfeed Clamping Carriages Parameter Value
Axis 1
Cycle operation (short parts) Laser Optional
Gripper rotation Standard
Outfeed Conveyor Parameter Value
Lifting station YES
Outfeed conveyor width 4,000 mm (can be extended)
General Parameters Parameter Value
Power supply 400V/50Hz
Rated Power / Power 25kw / 39kw
Pressure 0.5~0.8 Mpa
Gas consumption 300 L/min
Weight 10,000 kg
Overall dimensions 18,000×6,500×2,500 mm (including workbenches on both sides)
