UX 150 Laser-Equipped Cutting and Milling Machining Center

Laser-Equipped Cutting and Milling Machining Center

Model: UX 150

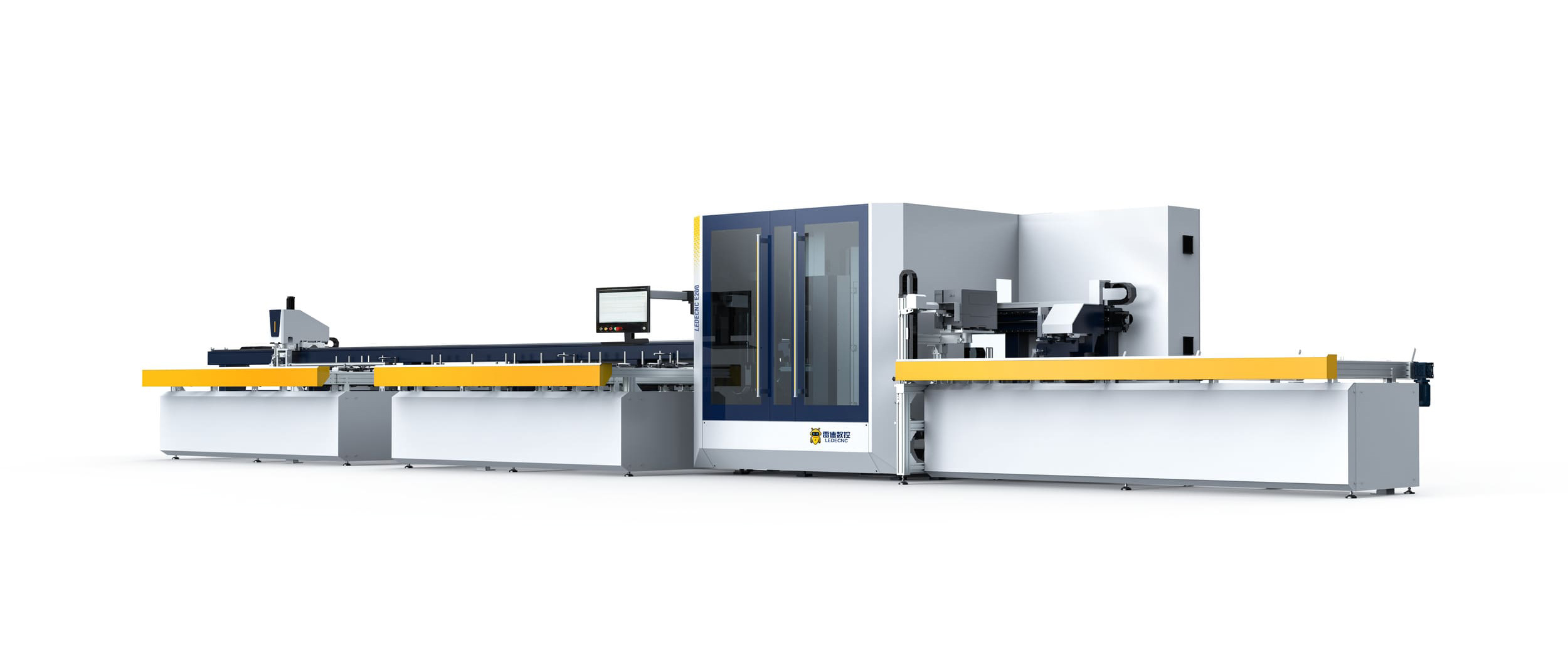

UX 150 – A high-performance Laser-Equipped Cutting and Milling Machining Center.

Designed for milling, drilling, cutting, and laser machining operations on the heads and ends of aluminum and light alloy profiles.

Key Features:

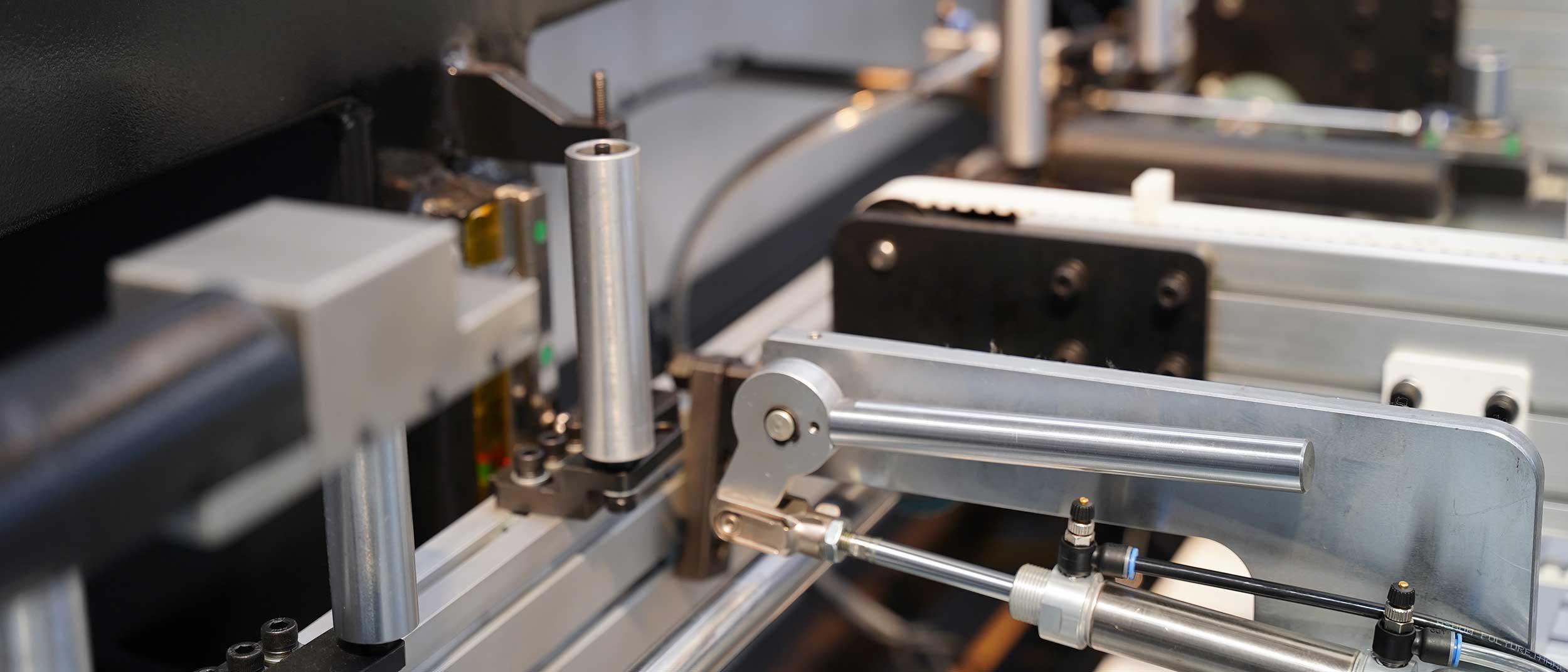

  • Automatic Loading and Feeding System: Linear Direct Drive Motor Technology.
  • Multi-Functional Machining Modules:
    • Milling Module: 4-axis CNC milling module with four electric spindles for simultaneous machining.
    • Cutting Module: Three 550 mm diameter saw blades with three-axis CNC-controlled movement.
    • Laser Processing: Two high-precision laser units for marking and engraving.
  • Automatic Unloading System: Transfers finished profile segments to the unloading magazine.
  • Fully Enclosed Central Cabinet: Ensures soundproofing and operator safety.

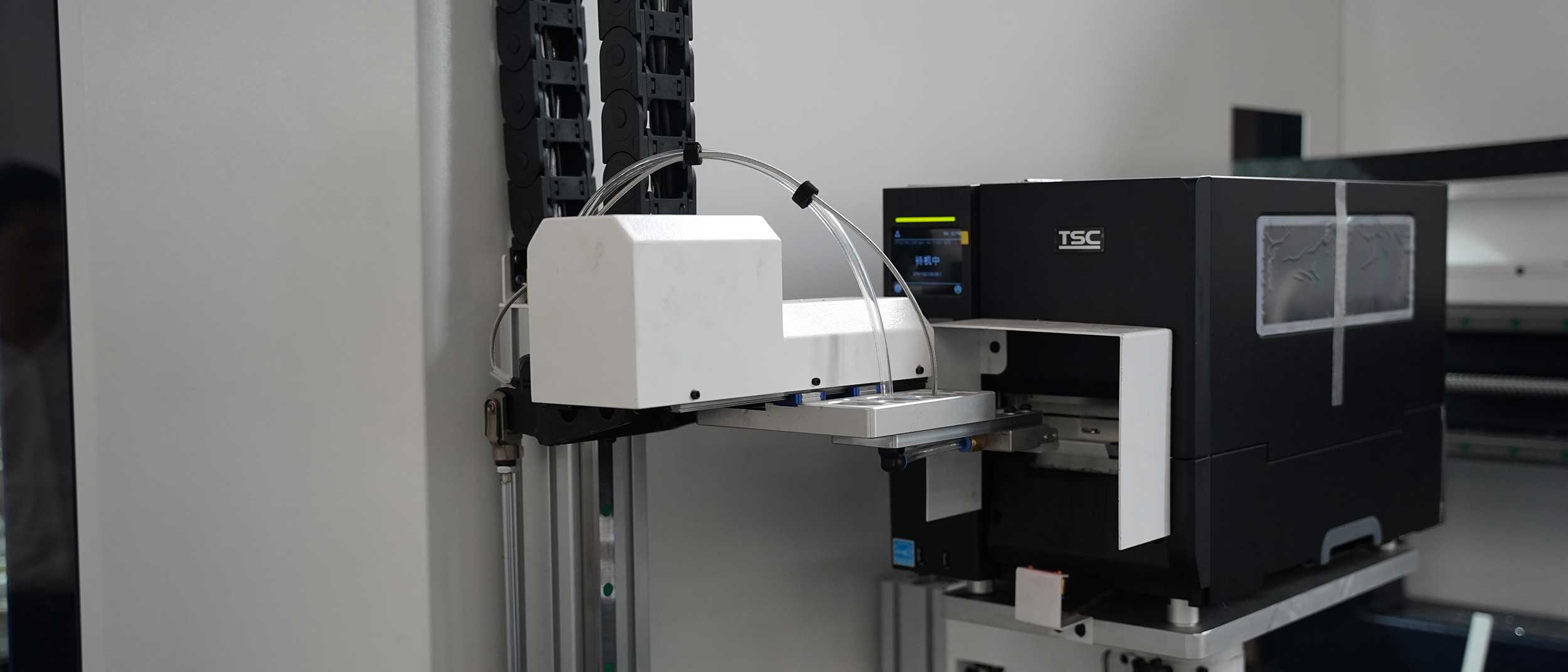

  • Automatic Labeling: Servo motor-driven system for minimal manual intervention.
  • Smart Integration and High Efficiency: Simultaneous operation of spindles and cutting processes.

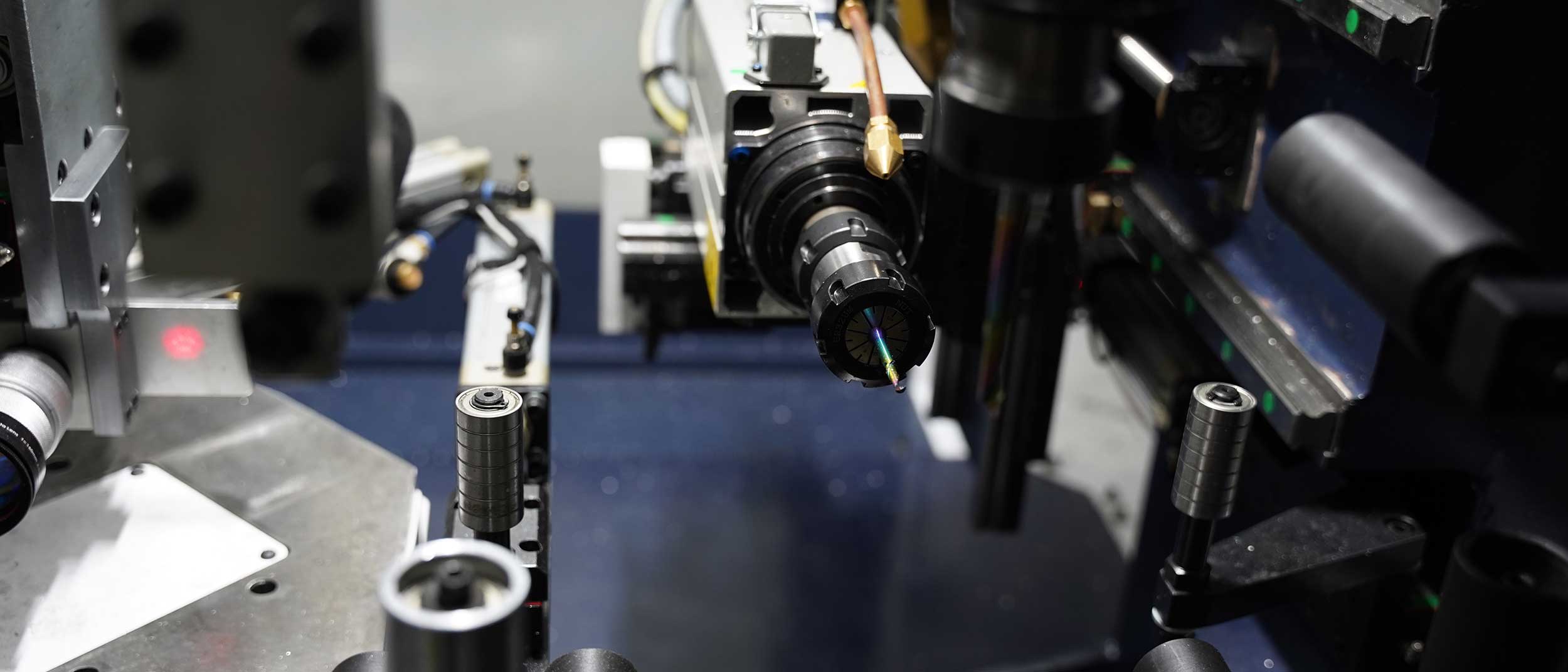

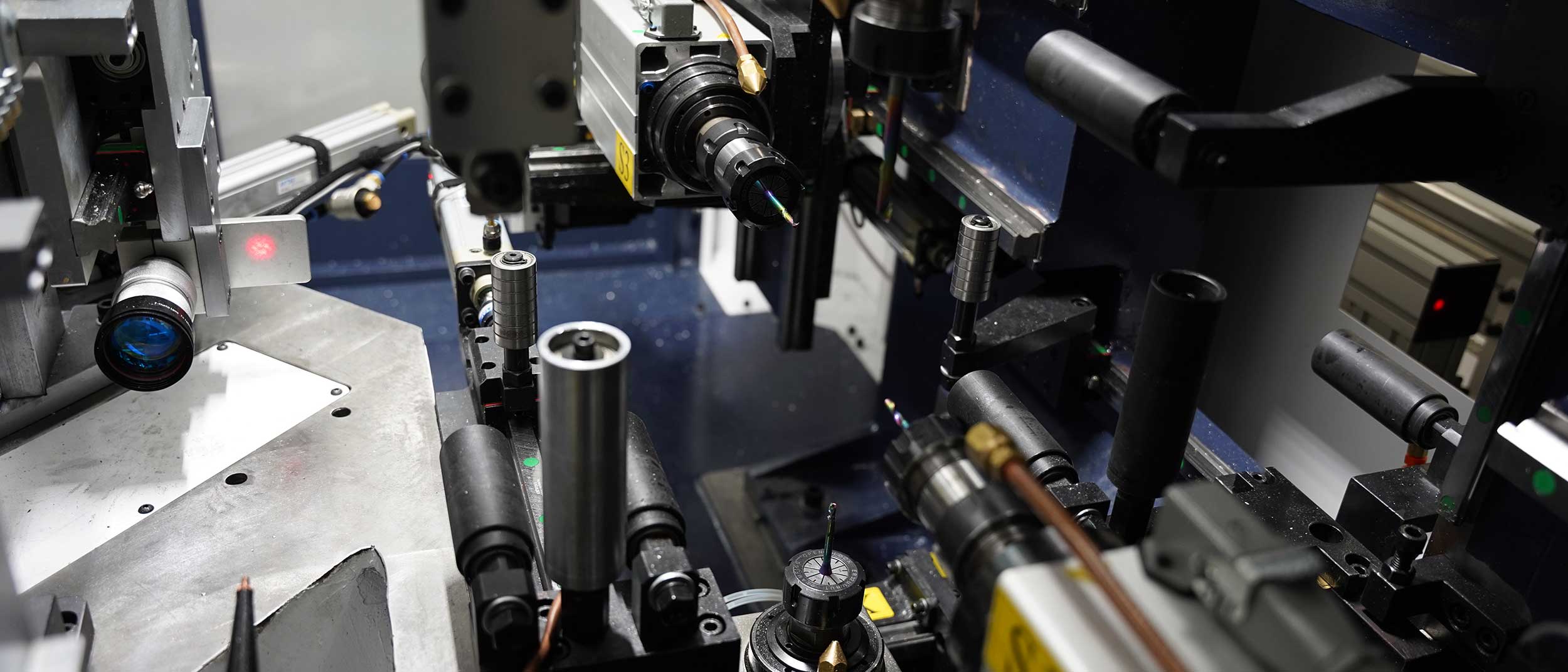

Four Electric Spindles
Laser Unit

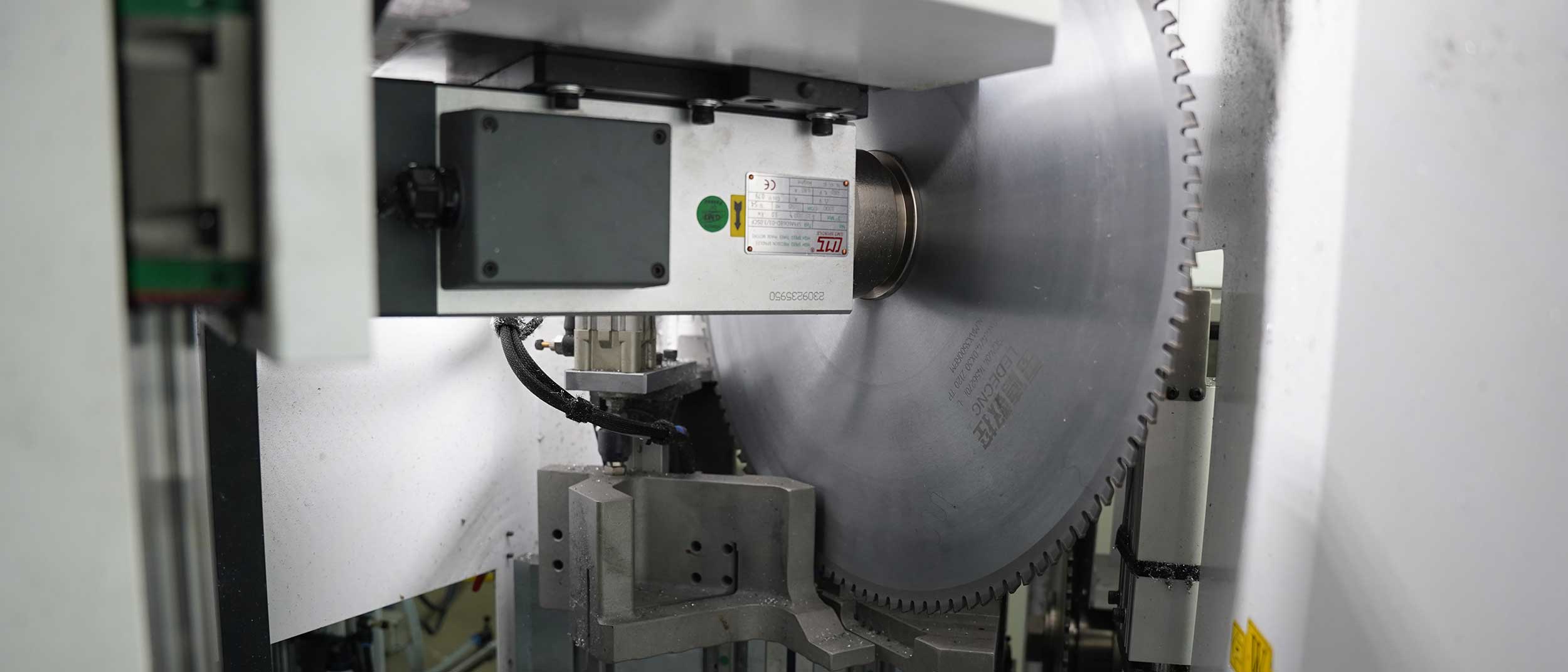

Cutting Unit

Machining Specifications:

Parameter Value
Max. Profile Cross-Section W*H = 150 × 150 mm
Min. Profile Cross-Section W*H = 30 × 20 mm
Raw Profile Length L = 600 – 7,000 mm
Finished Part Length L = 300 – 7,000 mm

Feed Magazine Specifications:

Parameter Value
Number of Swing Arms 4
Mounting Positions 7

Infeed Specifications:

Parameter Value
Drive Linear
Motorized Gripper Adjustment Y/Z
Gripper Rotation Standard
Residual Piece Measurement Optional
Residual Piece Processing Fully Automatic

Machining Station Specifications:

Parameter Value
Axes 4
Router Spindles 4 (servo-assisted)
Laser 2 (Milling and engraving)

Saw Specifications:

Parameter Value
Axes 3
Saw Blades (Diameter) 3*550mm
Sawing Angles +45°, -45°, 90°

Outfeed Clamping Carriages Specifications:

Parameter Value
Axis 1
Cycle Operation (Short Parts) Laser Optional

Outfeed Conveyor Specifications:

Parameter Value
Lifting Station YES
Outfeed Conveyor Width 4,000 mm (can be extended)

General Parameters:

Parameter Value
Power Supply 400V/50Hz
Power 25kw
Pressure 0.5~0.8Mpa
Gas Consumption 300L/min
Weight 8,900kg
Overall Dimensions 19,500 × 4,900 × 2,300 mm (including workbenches on both sides)
