Laser-Equipped Cutting and Milling Machining Center

Model: S200

S200 Series CNC Production Line – Designed for High-Volume Aluminum Window and Door Production.

The S200 series ensures detailed material flow organization, strict quality control, and reduced labor and management costs. Each profile is labeled with a sticker containing specifications and a QR code for traceability.

Key Features:

High Flexibility: Additional machines, such as a buffer station, can be integrated for increased capacity.
Customizable Configuration: Machines are recommended based on manufacturer needs.
Efficient Material Flow: Detailed organization and quality control for seamless production.
Automated Labeling: Each profile is labeled with specifications and a QR code.

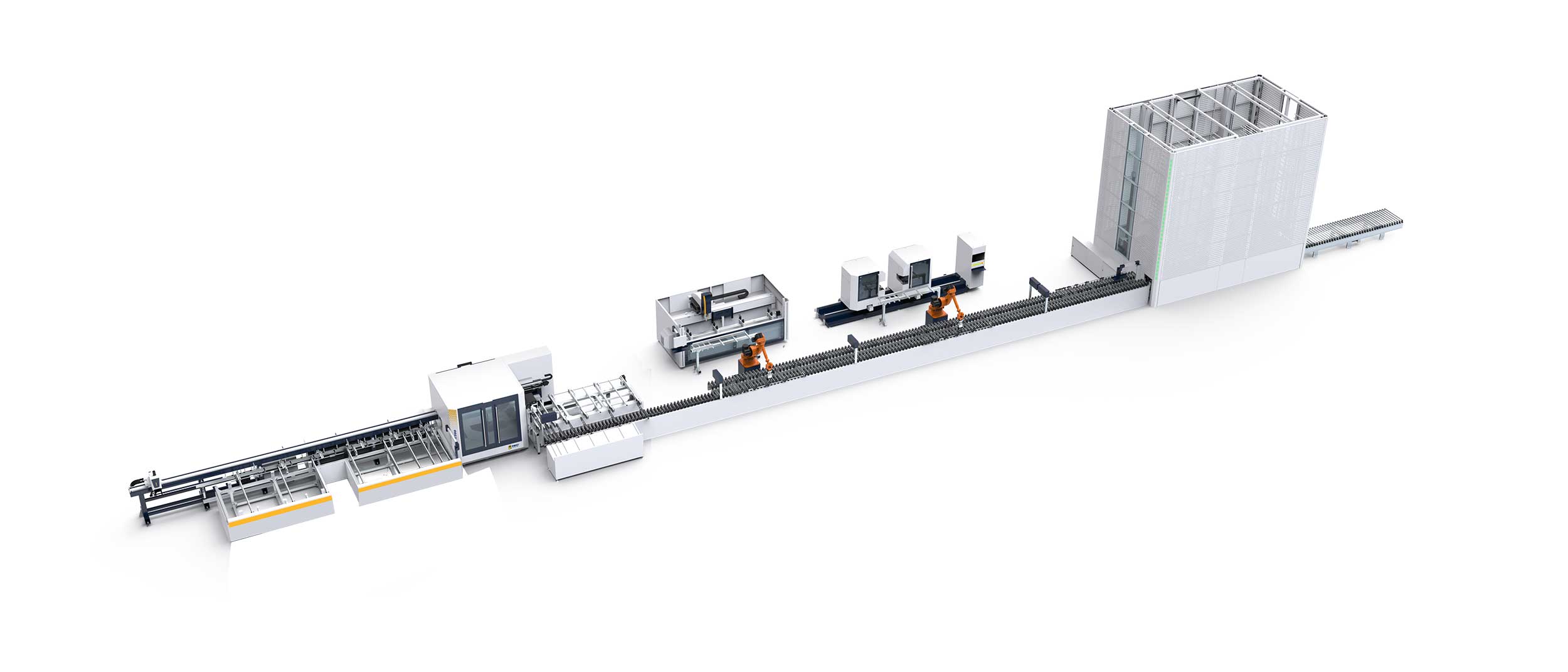

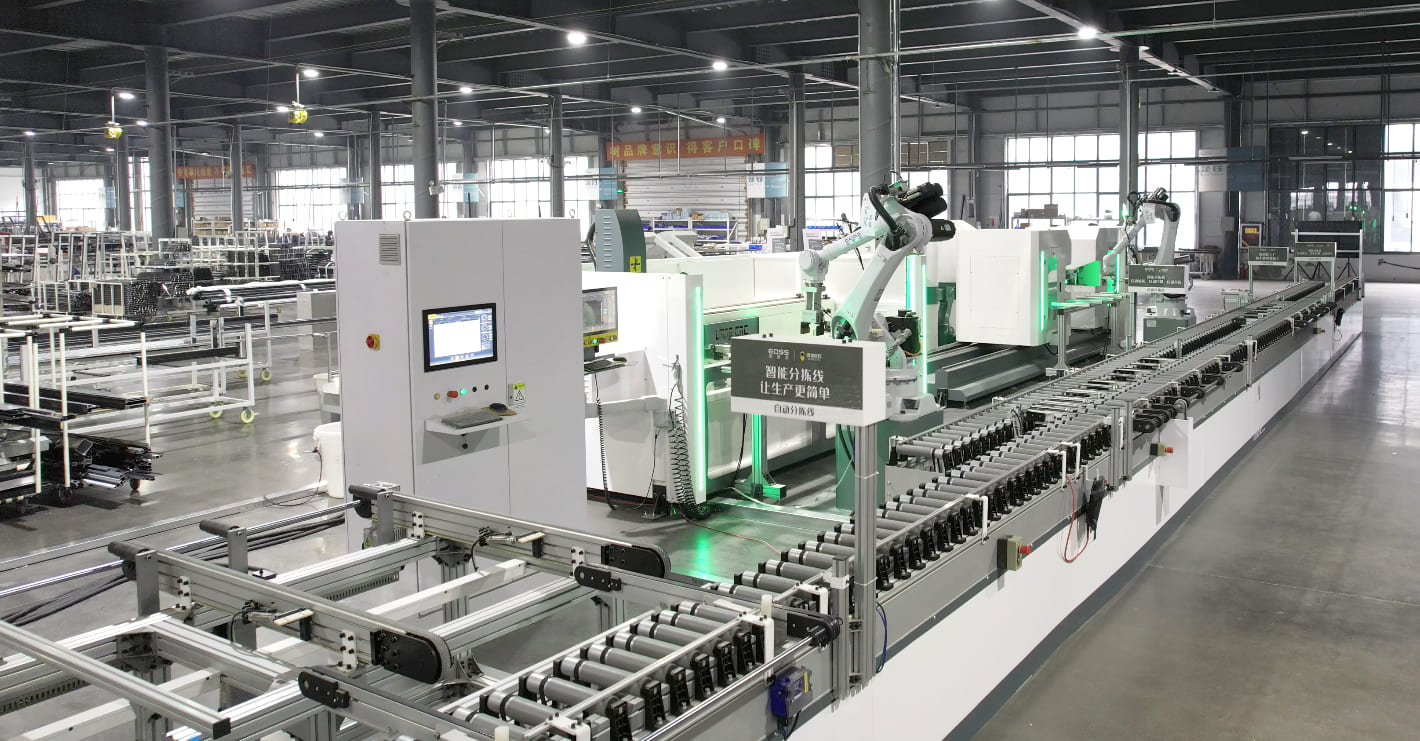

Comprehensive Line Components:

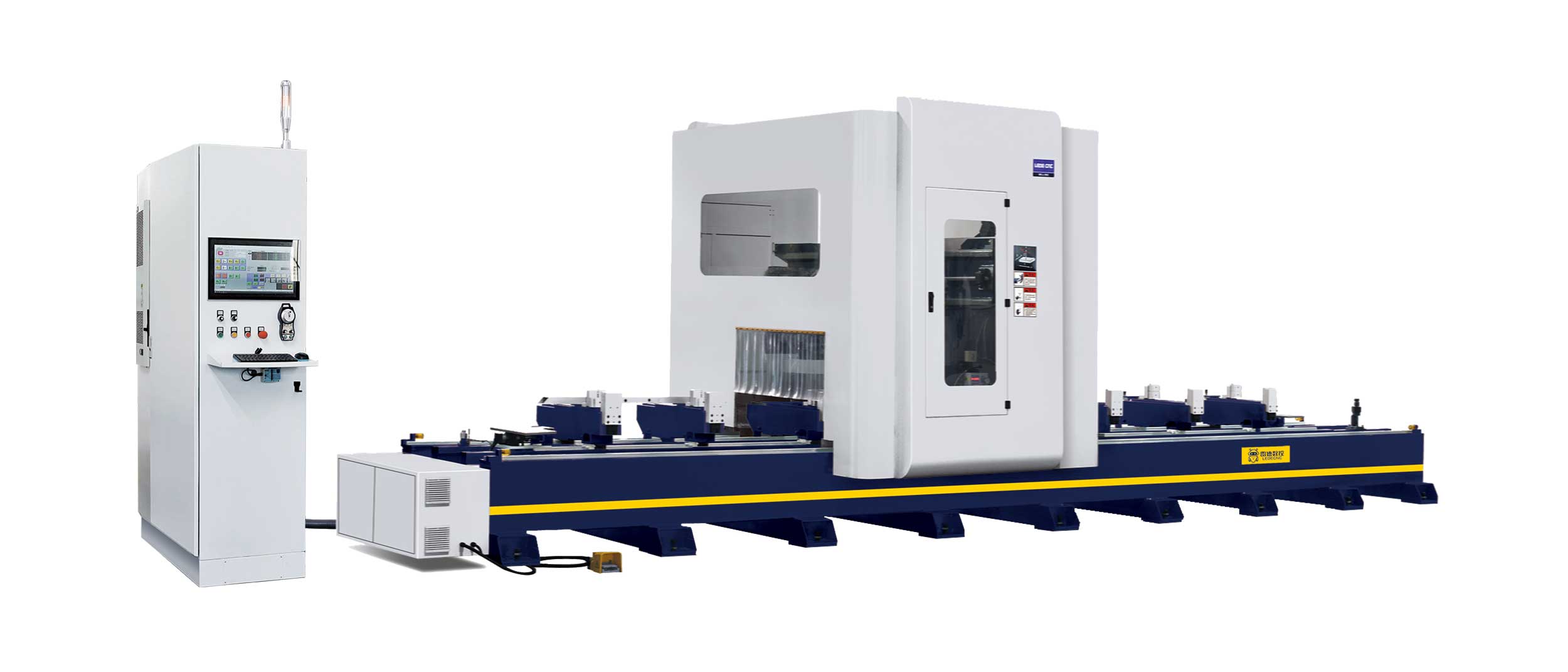

- CNC machining center x 1
- 3+1 CNC machining center x 1
- Double head end milling x 1

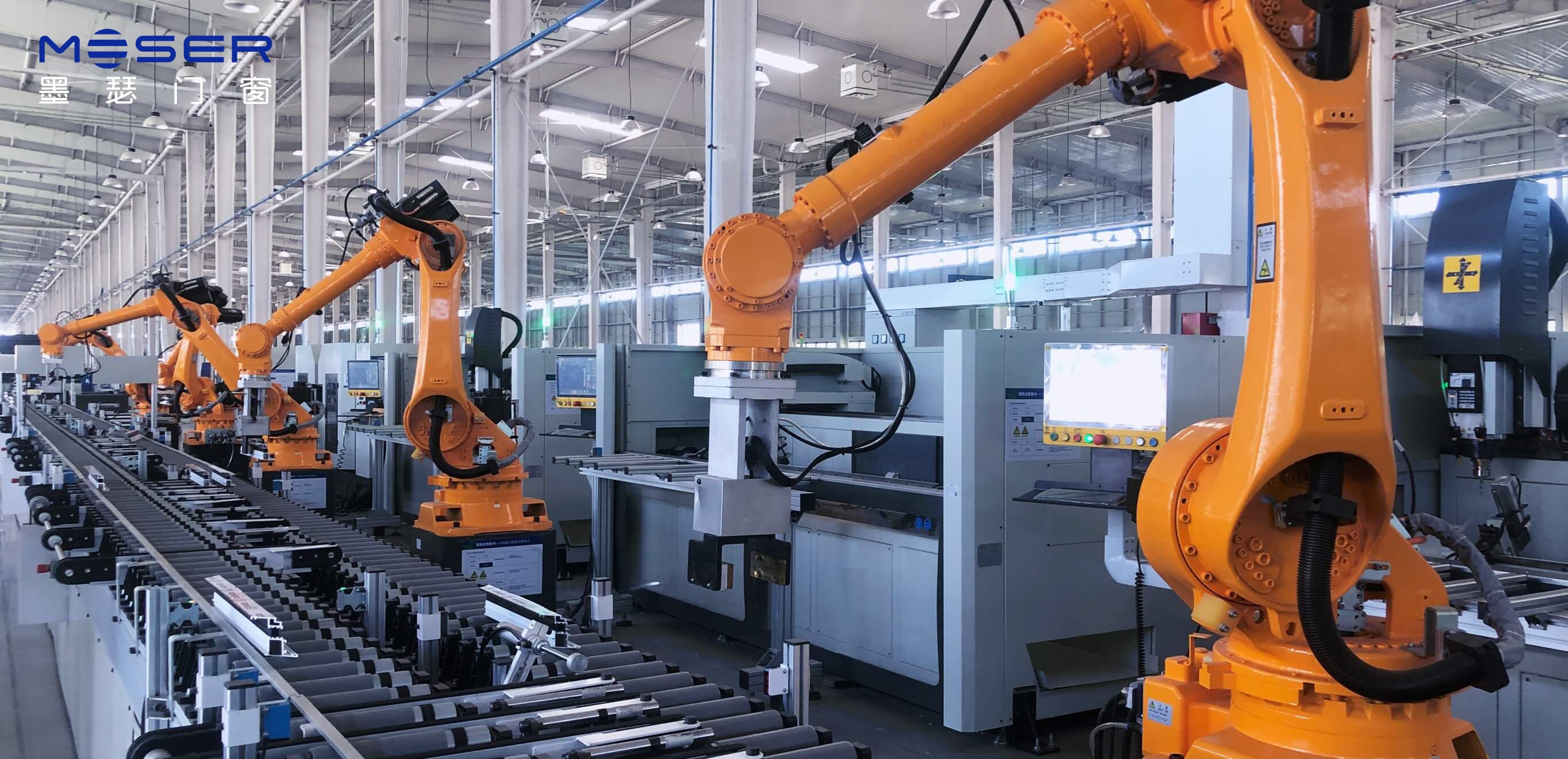

- Robotic arm x 3
- Sorting & allocating line x 1
- Buffer station x 1

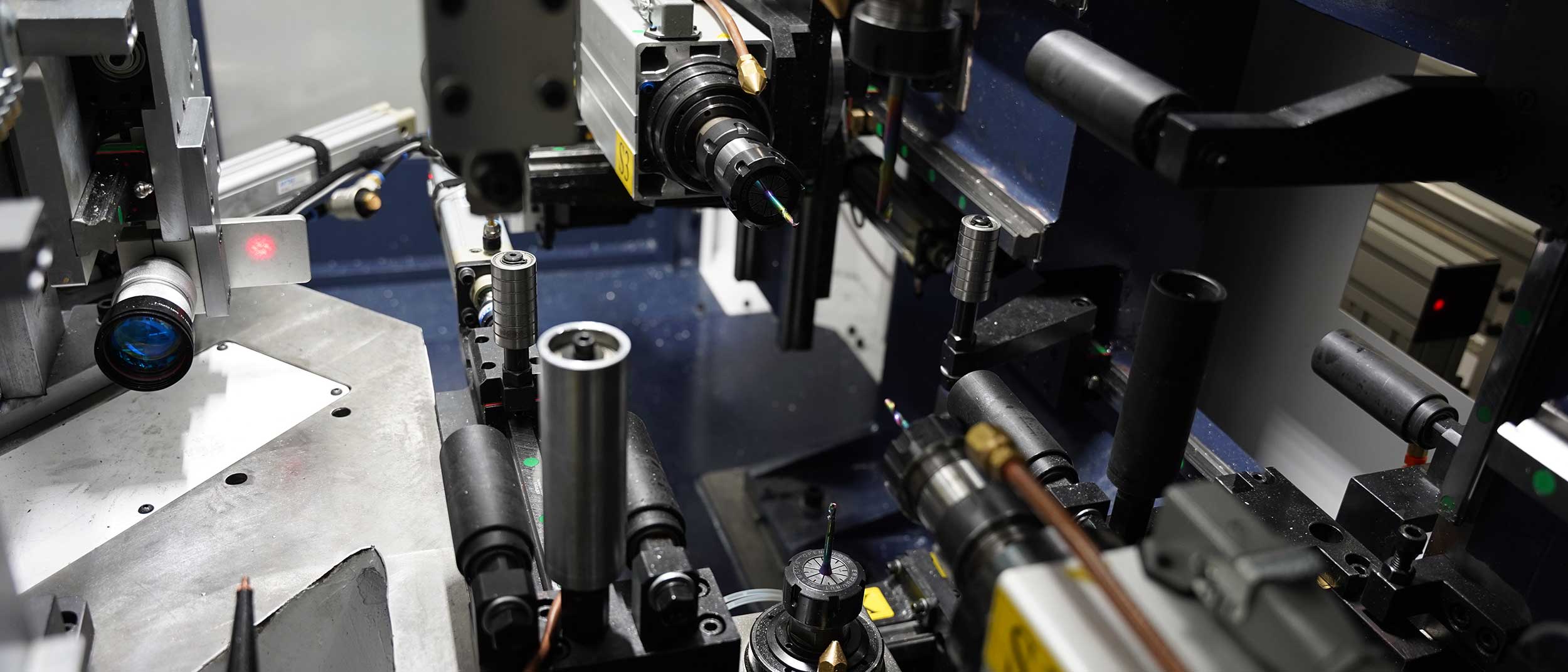

Four Electric Spindles

Laser Unit

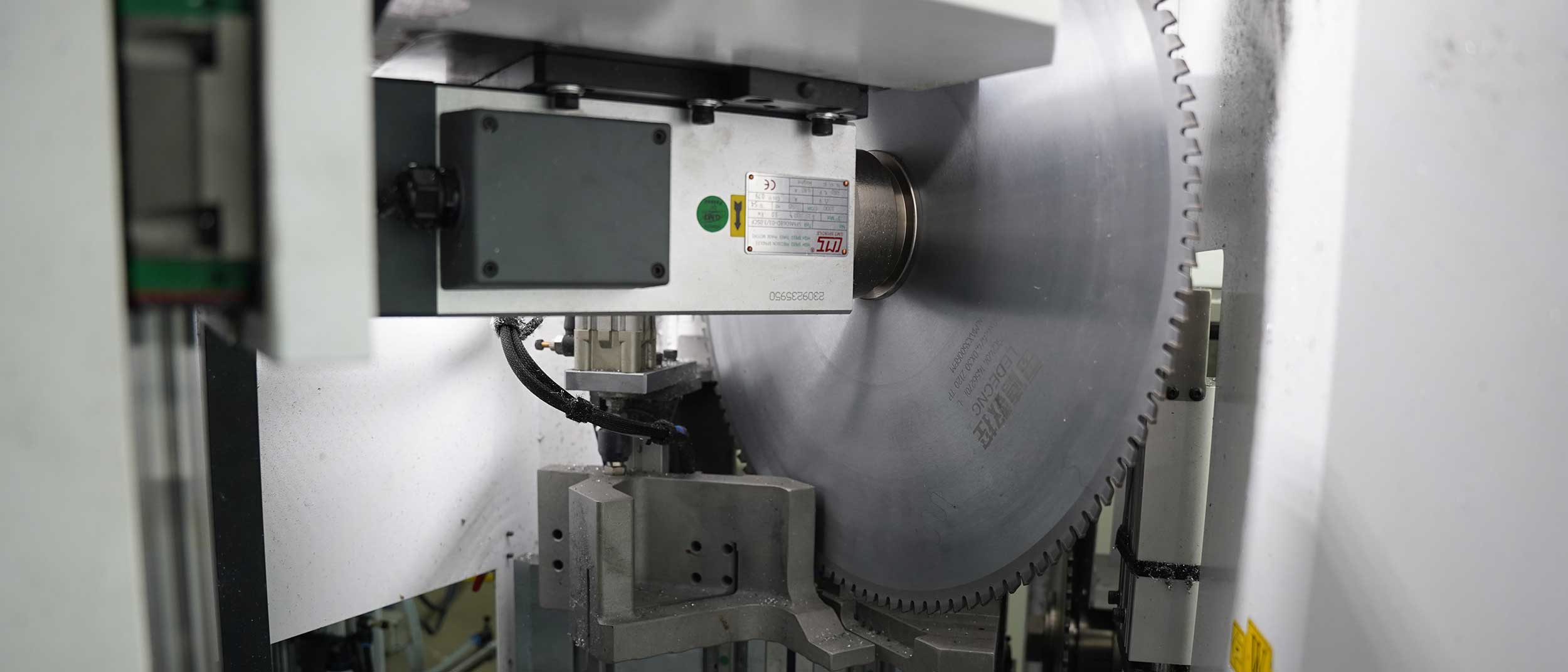

Cutting Unit

Specifications:

S200	Capacity
Max. number of profiles processed	2.5 PCS/Min ; 150 PCS/Hours ; 1,200 PCS/8 Hours
L×W = 2,250 × 2,250 mm (10 PCS/Windows)	607 ㎡/Day ; 182,100 ㎡/Year
L×W = 2,250 × 2,250 mm (14 PCS/Windows)	430 ㎡/Day ; 129,093 ㎡/Year
Calculation formula	(1,200 PCS / 10 PCS) × (2.25 × 2.25) × 300 Days

S200	Layout Dimension
Production line Length	42,000 mm
Production line Width	72,000 mm
Production line Height	2,500 mm

Traditional Factory Problems	Solution
LEADING TIME Over 25-45 days	Shortened to 7-12 days
Favors skilled workers with high salaries	General laborers can work with low salaries
Easy to make errors such as dimensional deviations in material placement and machining	Intelligent link, zero error, 100% qualified
Average daily capacity: 5-6 ㎡	Average daily capacity: 8-10 ㎡
3,000 ㎡ factory produces 3,000 ㎡ of windows per month	Five-fold increase: 3,000 ㎡ of factory space produces 15,000 ㎡ of windows can be produced
Production labor cost per ㎡ is about $58-98	Two times reduced: Labor cost per ㎡ is about $25~35
Disorganization of processes within the factory and accumulation of products	Intelligent and streamlined production, thoroughly realizing an automated production mode
High demand for technical positions; factory replication not possible	Intelligent factory construction enables replication of factories nationwide
High manufacturing costs without comprehensive competitiveness	Reduce manufacturing costs by 8%~10%, improving overall competitiveness of enterprises
Factory homogenization is strong without outstanding highlights	Intelligent factory construction empowers investment promotion work to increase enterprise value
