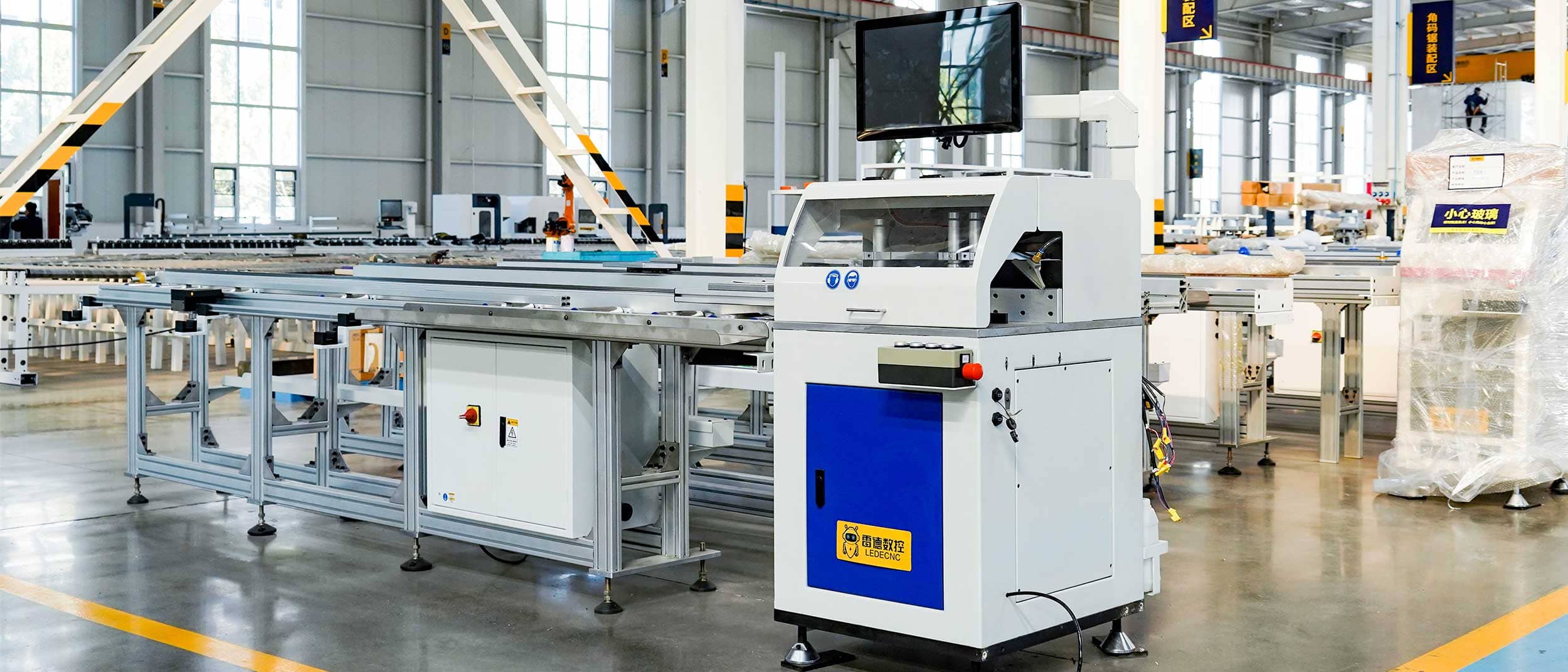

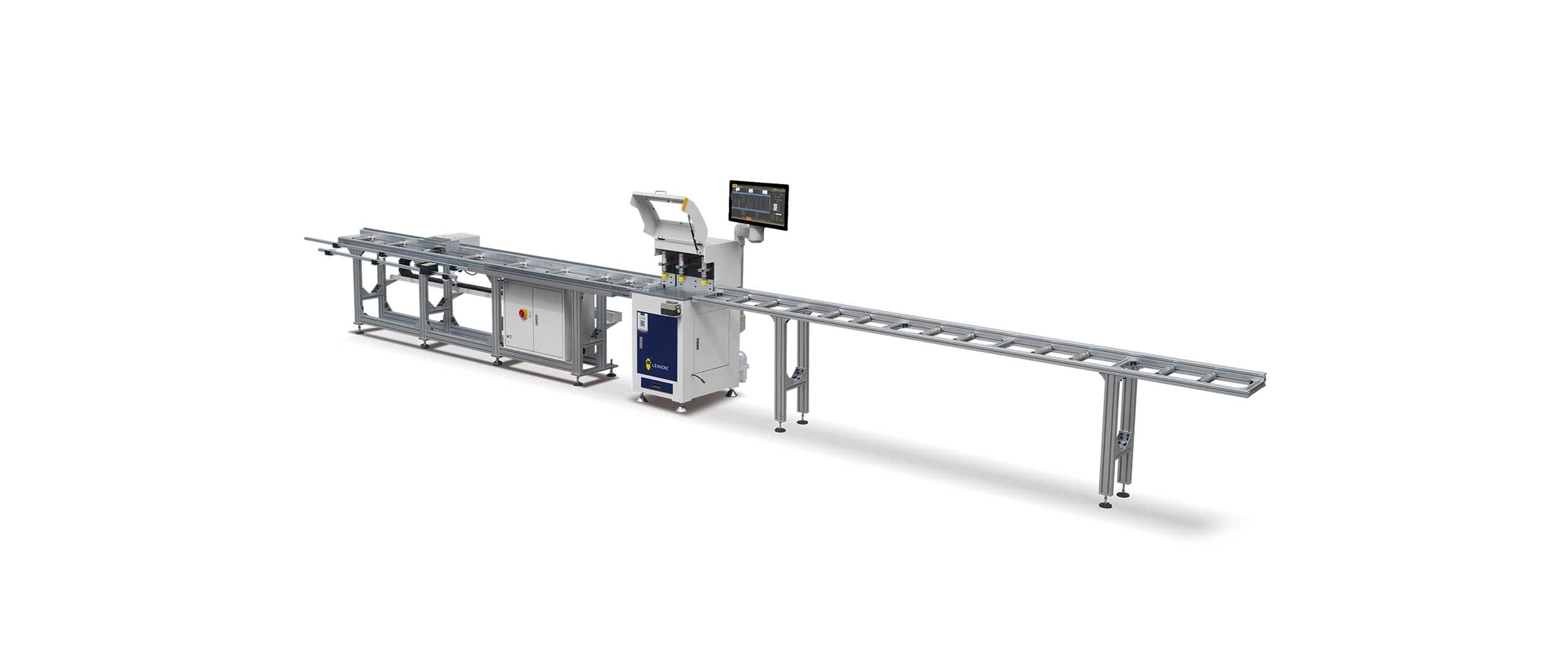

Turquoise 350 CNC Cutting center with wireless measurement for depression bar

CNC Cutting center with wireless measurement for depression bar

Model: Turquoise 350

Turquoise 350R – Specialized for Cutting Glazing Beads in Aluminum Alloy Windows and Doors

Key Features:

  • Professional for aluminum doors and Windows press line profile 90 ° cutting
  • User-Friendly Operation: Features wireless measurement and automatic data transmission for precise CNC-based sizing. Cuts glazing beads to the required dimensions in one step, eliminating the need for additional trimming.
  • High Efficiency: Saves the need for an experienced craftsman, doubling the efficiency compared to traditional cutting methods.
  • High Precision: Equipped with a handheld wireless measuring device for real-time bead size measurement and a high-precision spindle saw blade motor, achieving a processing accuracy of 0.1mm.
  • Unique Chip Removal Design: Includes a waste collection box, ensuring a cleaner workspace.

  • Tool Management and Maintenance: Comes standard with a tool life management system and automatic maintenance reminder function.

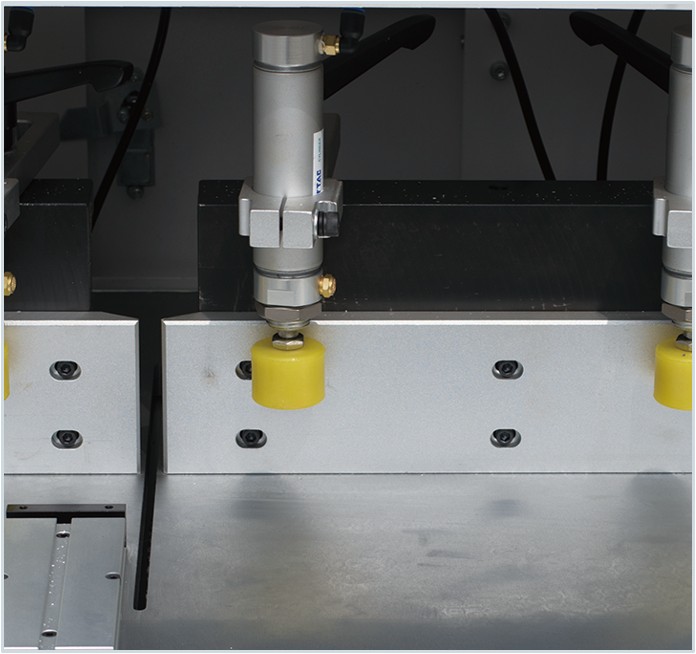

Saw

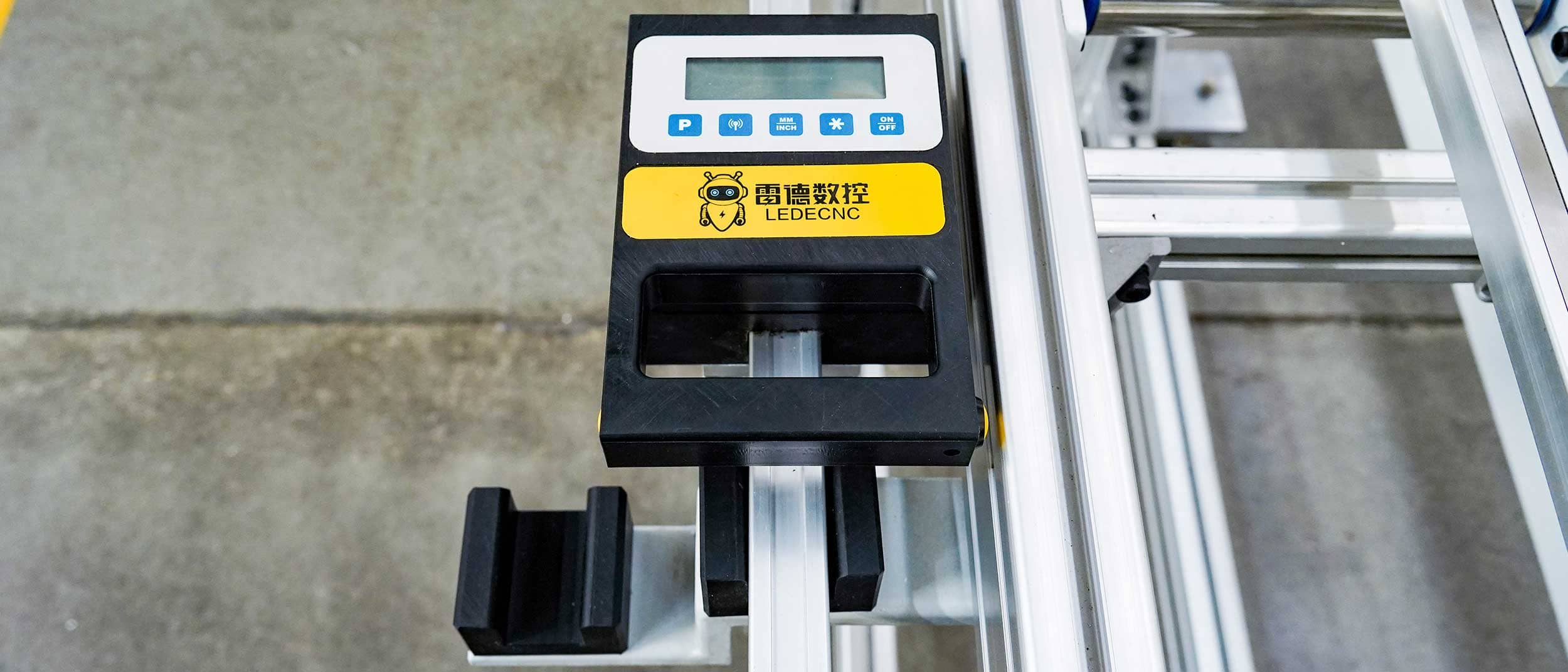

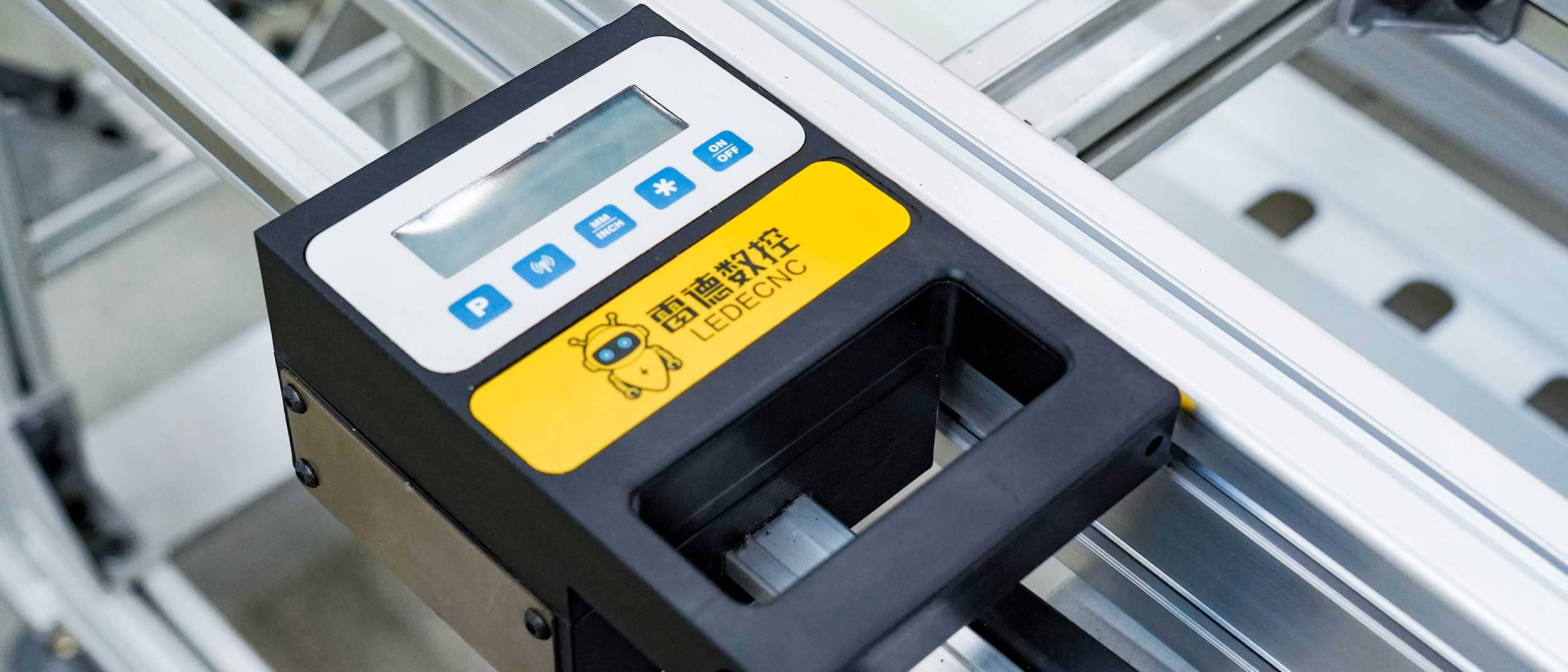

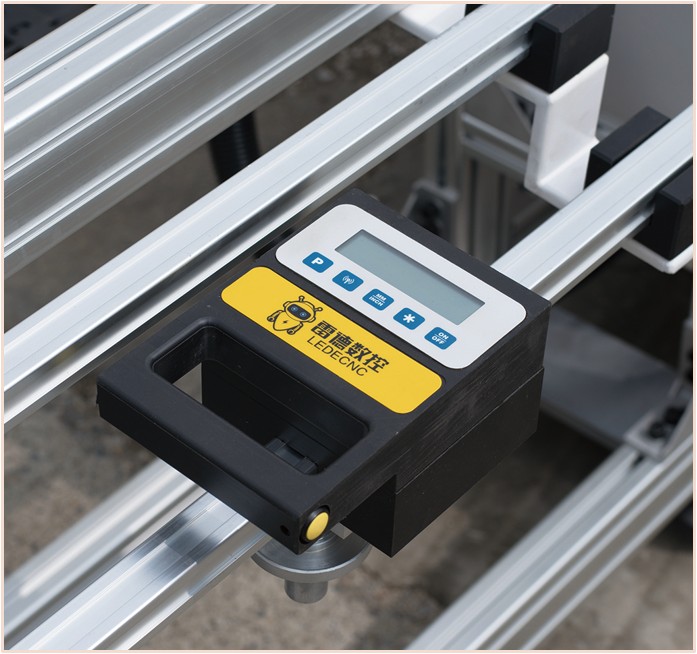

Wireless Measurement Organization

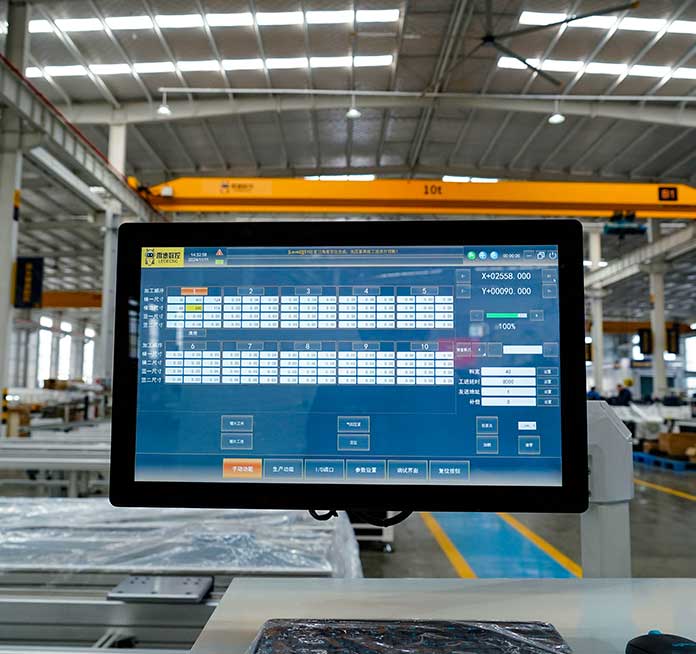

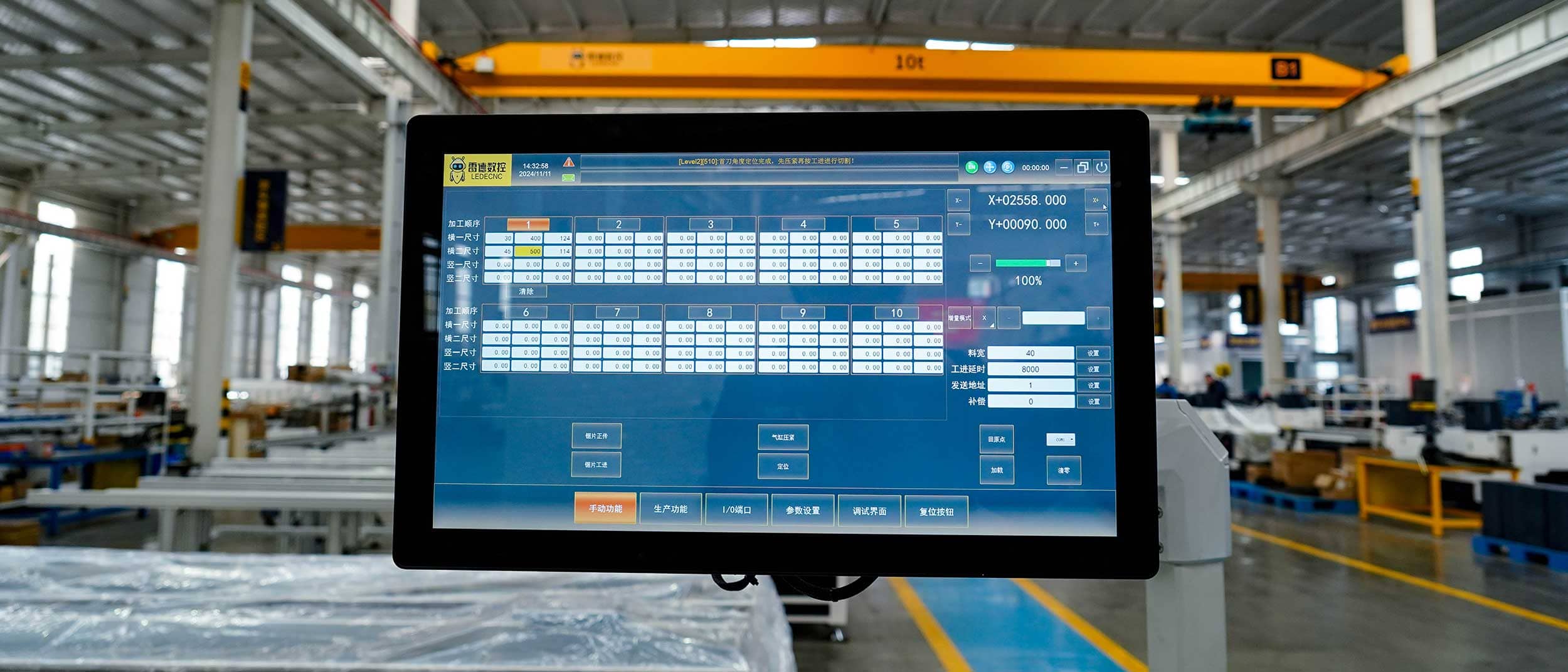

     Interactive Interface



Specifications:

Machining Specifications  Parameter Value
Saw Blade Size ø350×3.2×ø25 Z=100
Profile Size

Square tube: 70 × 70mm

Rectangular tube: 80 × 70mm

Saw blade speed 2800 r / min
Motor power 1.3 KW
Bluetooth Measuring Tape Parameters  Parameter Value
Fixed-Length Range 0~3000mm
Measuring Range 125~2500 mm
Positioning speed 1 m / s
Measurement Accuracy 0.1 mm
General Parameters Parameter Value
Power supply 380V 50HZ
Power 2.0 Kw
Air pressure 0.5~0.8 MPa
Air consumption 8 L / min
Weight 710 Kg
Overall dimensions(L*W*H) 8200×90 0×1700mm (include track)
