Aluminium Door and Window Machine

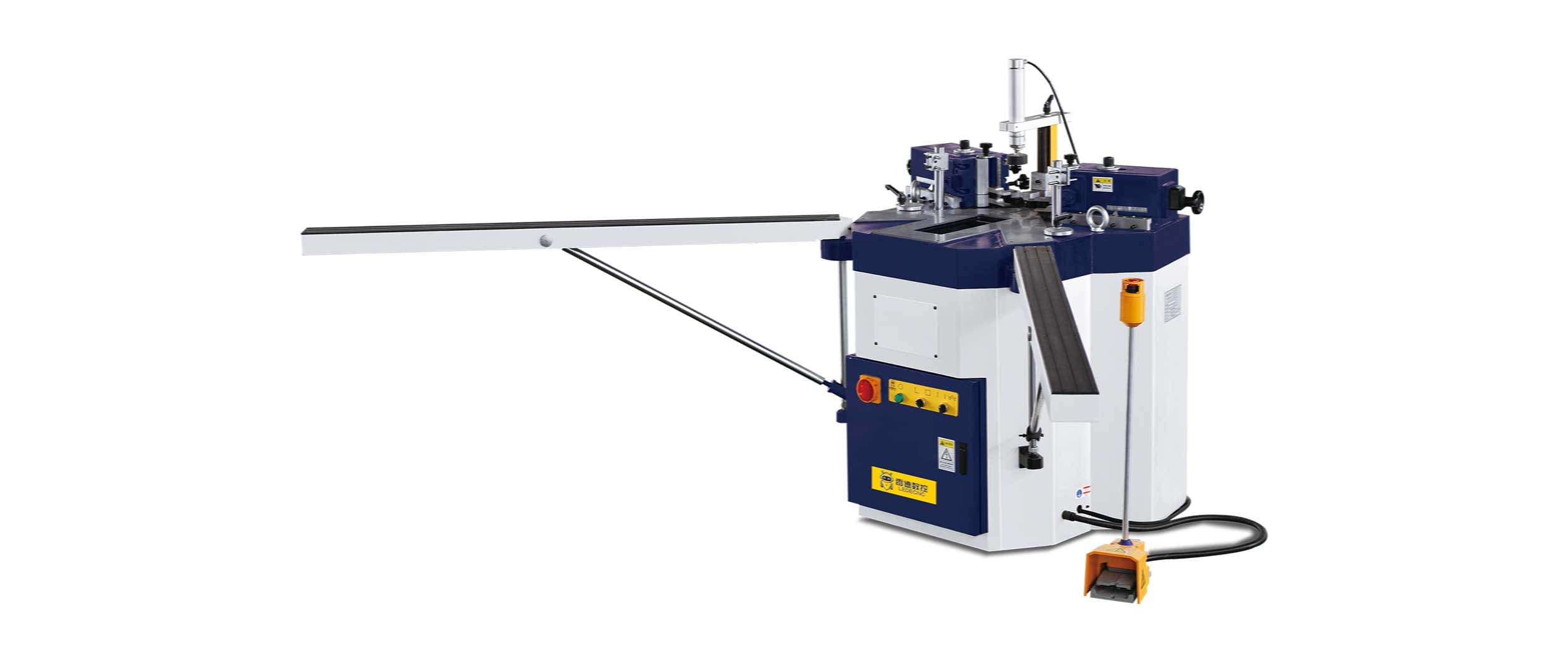

Spinel 160 Pneumatic Crimping Machine

Pneumatic Corner Crimping Machine

Model: Spinel 160

Spinel 160-The aluminum door and window pneumatic corner crimping machine is well used for jointing the door/window corners with little manual interference.

Key Features:

  • User-Friendly Operation: Significantly reduce the skill and experience requirement of workers. All adjustment points are equipped with data-based adjustment features.
  • High Efficiency: Fast operation, assembling four corners in just one minute.
  • High Precision: Ensures no light penetration at the corner after assembly.
  • Wide Range of Applications:

     1. Supports corner heights up to 160mm( Could customized for a bigger profile).

     2. Features synchronized pneumatic-to-mechanical transmission for powerful corner assembly. With an air pressure of just 0.4MPa, it can easily handle profiles with wall thicknesses up to 5mm. Ensures smooth, misalignment-free corners and comes with a universal misalignment knife as standard.

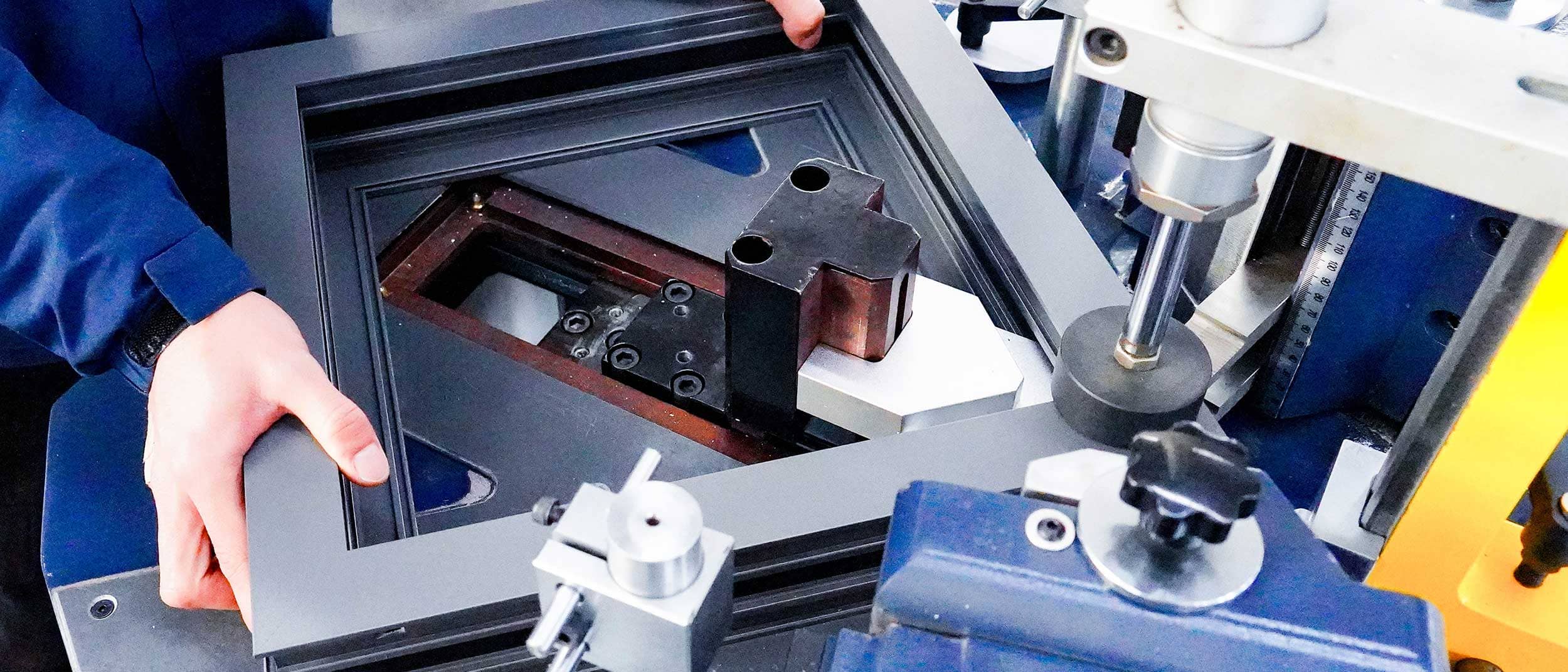

  • Convenience for Large-Scale Corners: Equipped with a rotating, self-adjusting support rack with angle-locking capabilities for easier assembly of large corners.

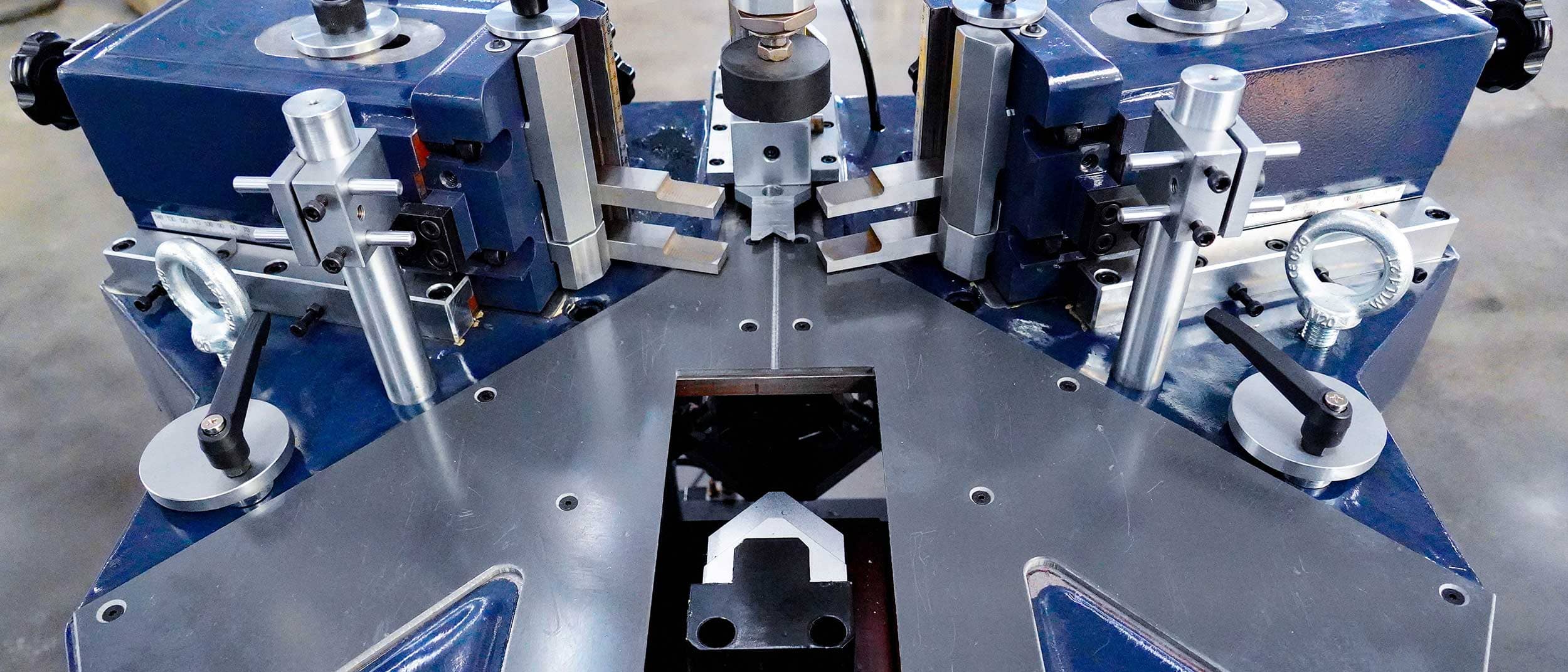

 Positioning device underneath

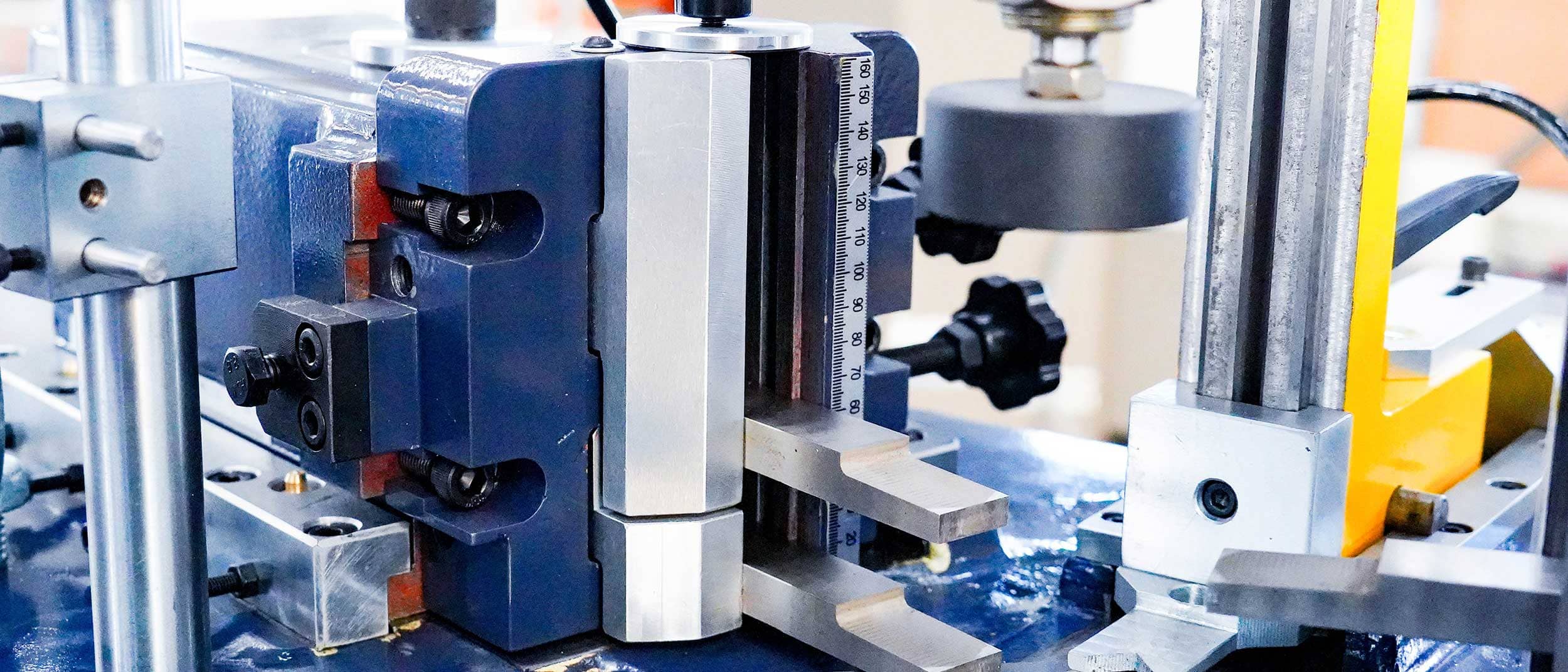

Quick blade-fastening device

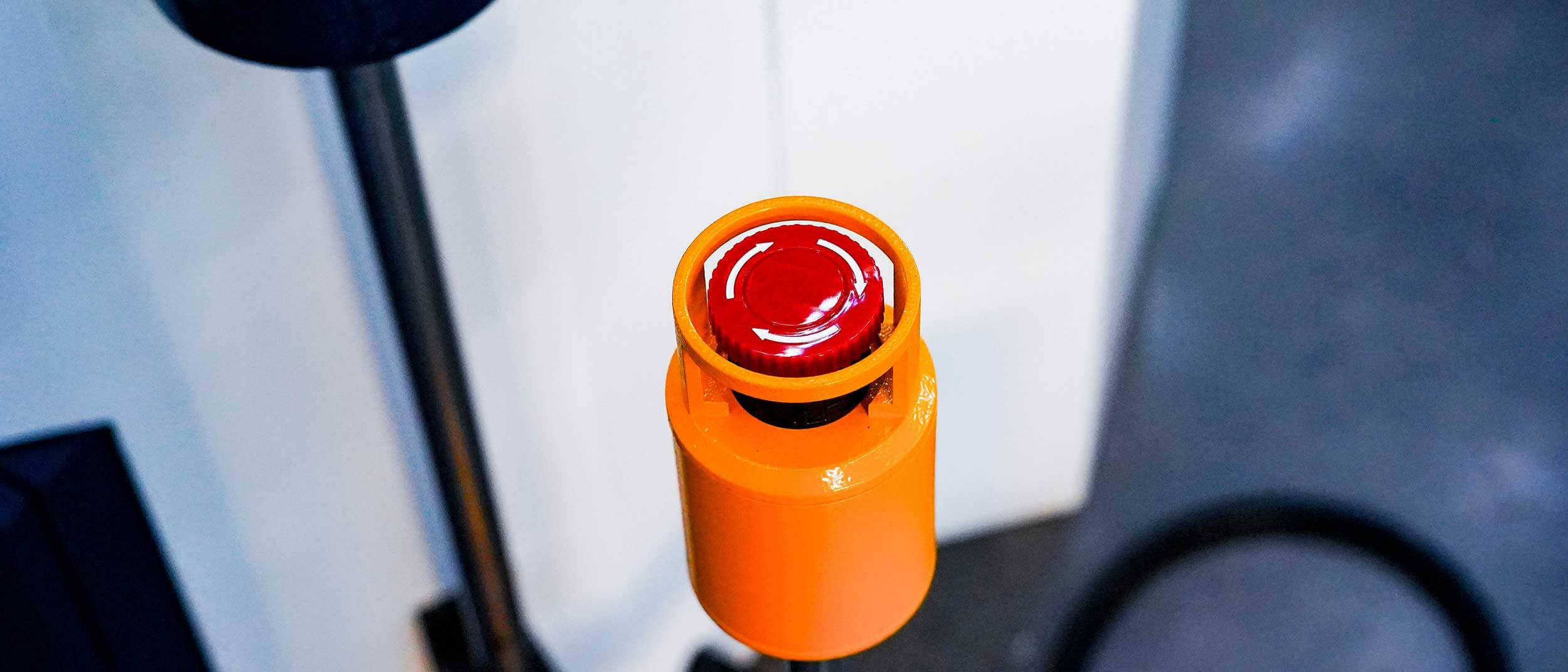

Emergency button

Specifications:

Machining Specifications  Parameter Value
Pressing height 160 mm
Pressing force  50 KN
Inner positioning corner movement range 130 mm
Adjustable range of corner crimping head 70 mm
Corner crimping tools working stroke 0~13 mm
General Parameters Parameter Value
Power supply 220V 50HZ
Power 90 W
Air pressure 0.6~0.8 MPa
Air consumption 120 L / min
Weight 500 Kg
Overall dimensions(L*W*H)

1100×1000×1300mm

(Including stands: 3400×1000×1300mm)
