Aluminium Door and Window Machine

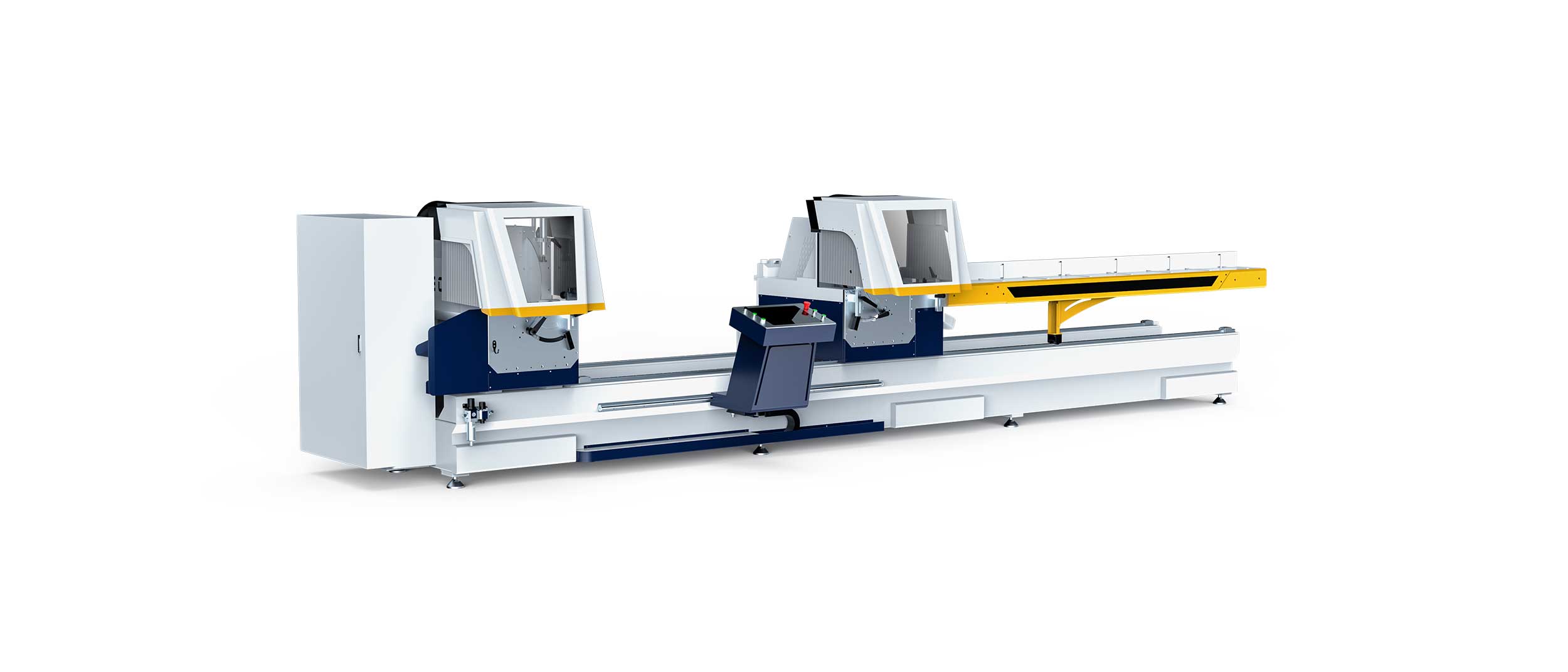

Ruby 550D CNC Double-Head Cutting Saw

CNC Double-Head Cutting Saw

Model: Ruby 550D

Ruby 550D – Professional Cutting Solution for Aluminum Profiles.

Designed for ease of use, requiring no skilled workers, addressing labor shortages in factories. Features an automatic height measurement device, eliminating concerns over profile height discrepancies. Equipped with an error-proofing function that prevents cutting when profile deviations exceed allowable ranges.

Key Features:

  • User-Friendly Operation: Designed for ease of use, requiring no skilled workers, addressing labor shortages in factories. Features an automatic height measurement device, eliminating concerns over profile height discrepancies. Equipped with an error-proofing function that prevents cutting when profile deviations exceed allowable ranges.
  • High Precision: Incorporates an integrated cast worktable, high-precision spindle saw blade motor, cutting length tolerance of ±0.1mm, surface flatness of ≤0.10mm, and angular error of 5′.
  • Wide Application Range: Refer to the cutting curve chart for specifications.
  • Short Material Cutting Capability: Capable of cutting profiles as short as 260mm (short edge length at 45° with dual-head operation).
  • Versatile Angle Adjustment: Standard configuration includes manual angle adjustments between 45° and 90°.
  • Adjustable Saw Blade Speed: The saw blade speed is frequency-adjustable, allowing for optimal matching with the profile wall thickness.
  • Data Import Methods:
     1.Software Integration: Connects with software systems like ERP, Logikal,  TSD-CAD and KLAES.
     2.Import Options: Data can be imported via network or USB drive.
     3.Manual Input: Direct data entry is also supported.
  • Environmentally Friendly: Features a unique chip removal and dust collection design with an 80% dust collection efficiency, ensuring a cleaner workspace, reducing cleaning frequency, and improving work efficiency
  • Network Bus Control: Provides strong anti-interference capability, ensuring high repeatability and cutting precision.

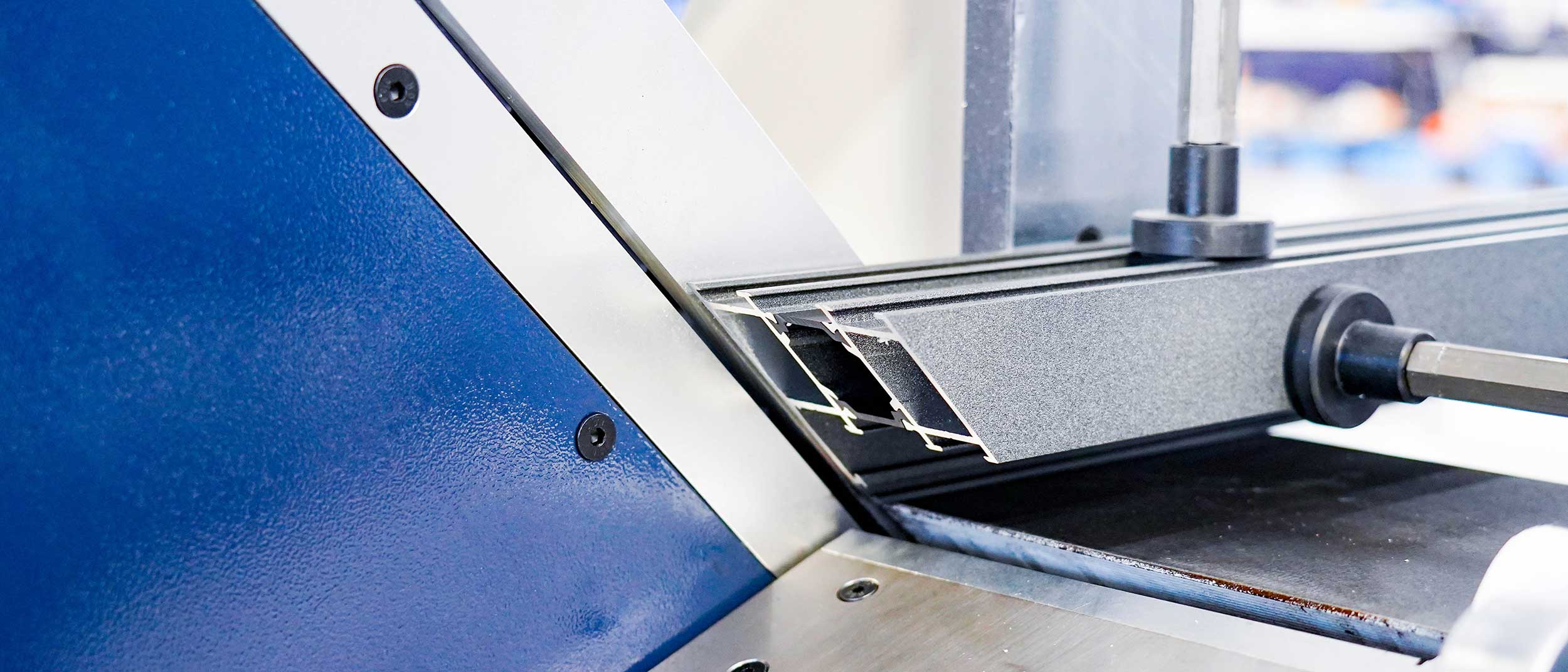

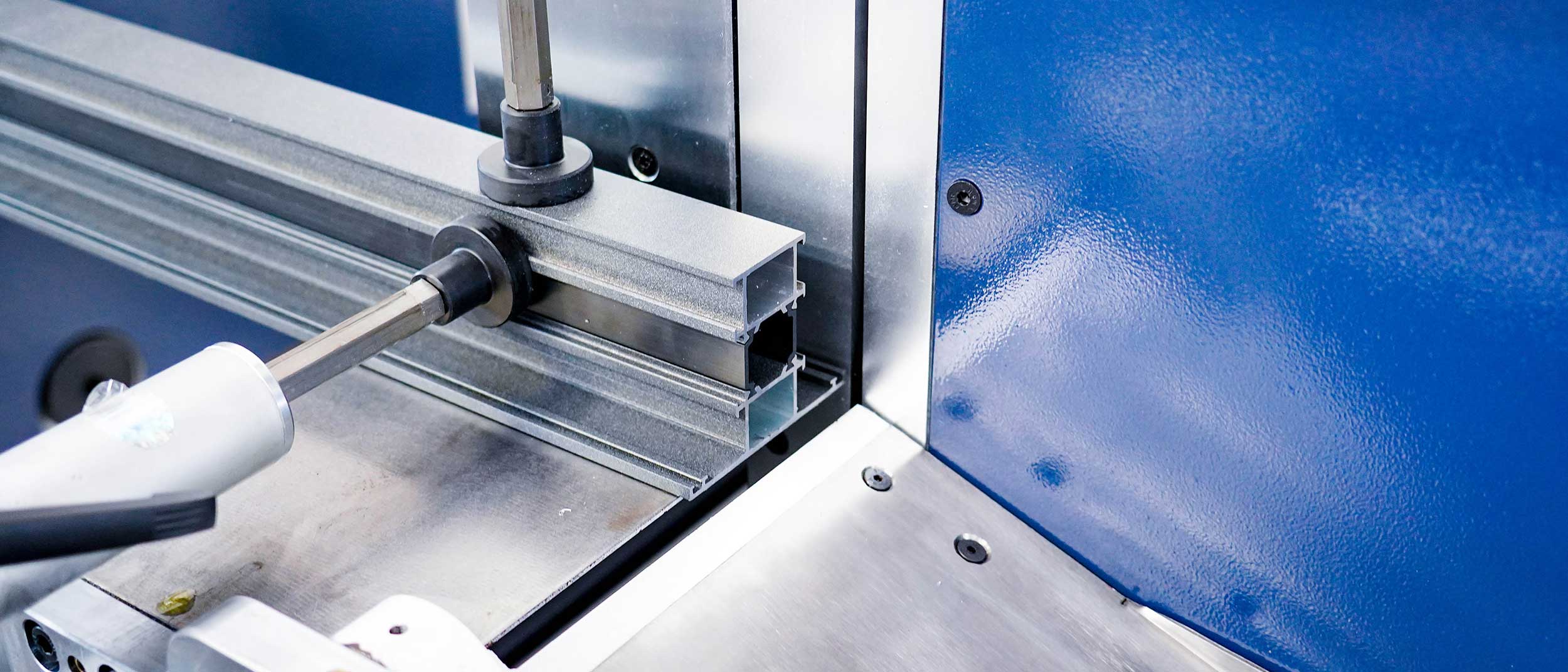

  • Support Racks: Includes a central support rack to prevent sagging that could lead to cutting errors, as well as a movable profile support rack for additional stability.
  • Tool Life Management System: Standard configuration includes an automatic tool maintenance system, providing alerts when saw blades need sharpening or replacement.
  • Automatic Maintenance Reminder: Comes with a built-in system to prompt maintenance, enabling proactive detection of potential equipment issues and enhancing equipment utilization.

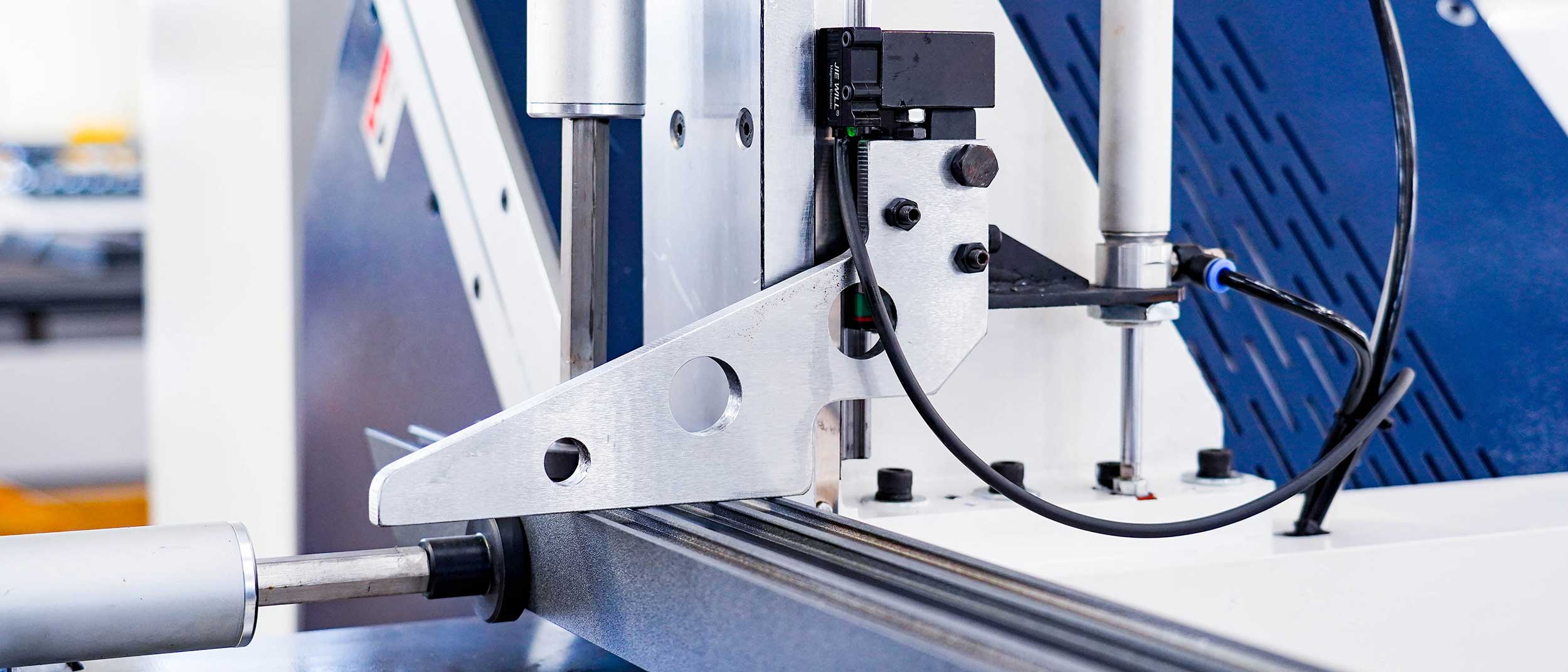

Automatic height measuring device
Servo motors

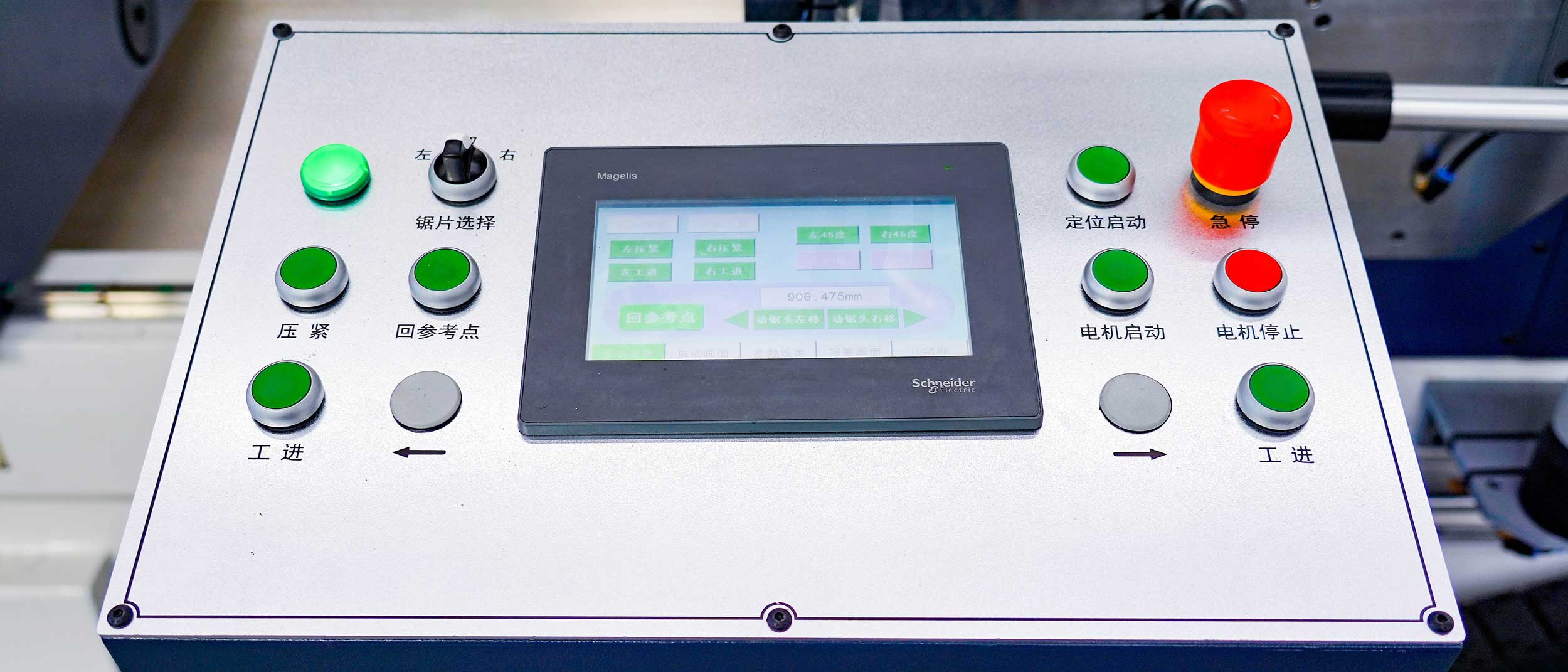

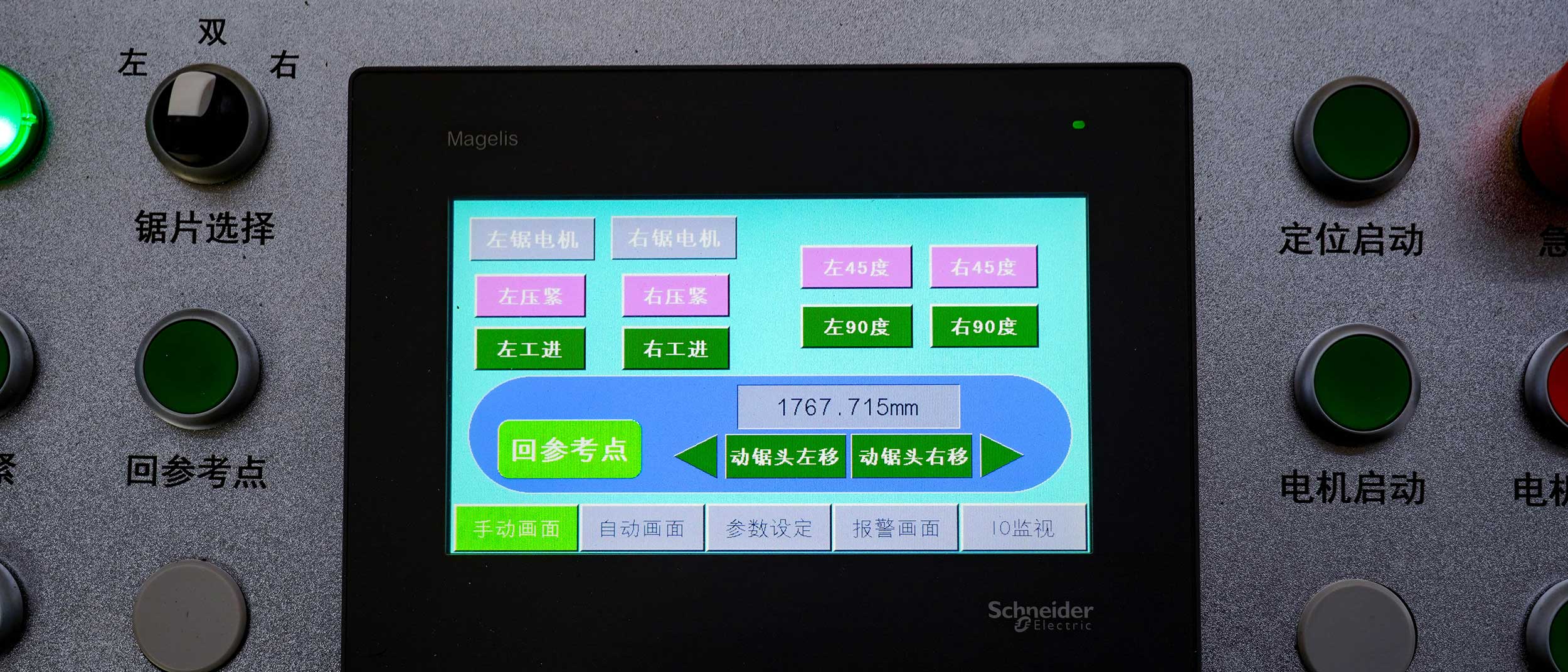

Standard screen for parameter setting

Specifications:

Machining Specifications Parameter Value
Minimum cutting length at 90° 360 mm
Minimum cutting length tilted at 45° 360 + 2*H mm (H: profile height)
Cutting height 110mm (see cutting diagram)
Cutting width 180mm (see cutting diagram)
Pivoting range inwards
Left :-45°, 90°
Right: 90°, 45°
Saw blade size φ550×φ30×4.4  Z=120
Saw blade speed 2,240 rpm
Machining Precision Parameter Value
Cut Angle Error ±5’
Surface roughness ≤0.1mm
Repeat length measurement error ±0.1mm
General Parameters Parameter Value
Power supply 380V 50Hz
Power 10KW
Pressure 0.5~0.8MPa
Gas consumption 60L/min
Weight 2,000 kg
Overall dimensions(L*W*H) 9750mm (include rack) *1800mm *1550 mm

LAYOUT:
