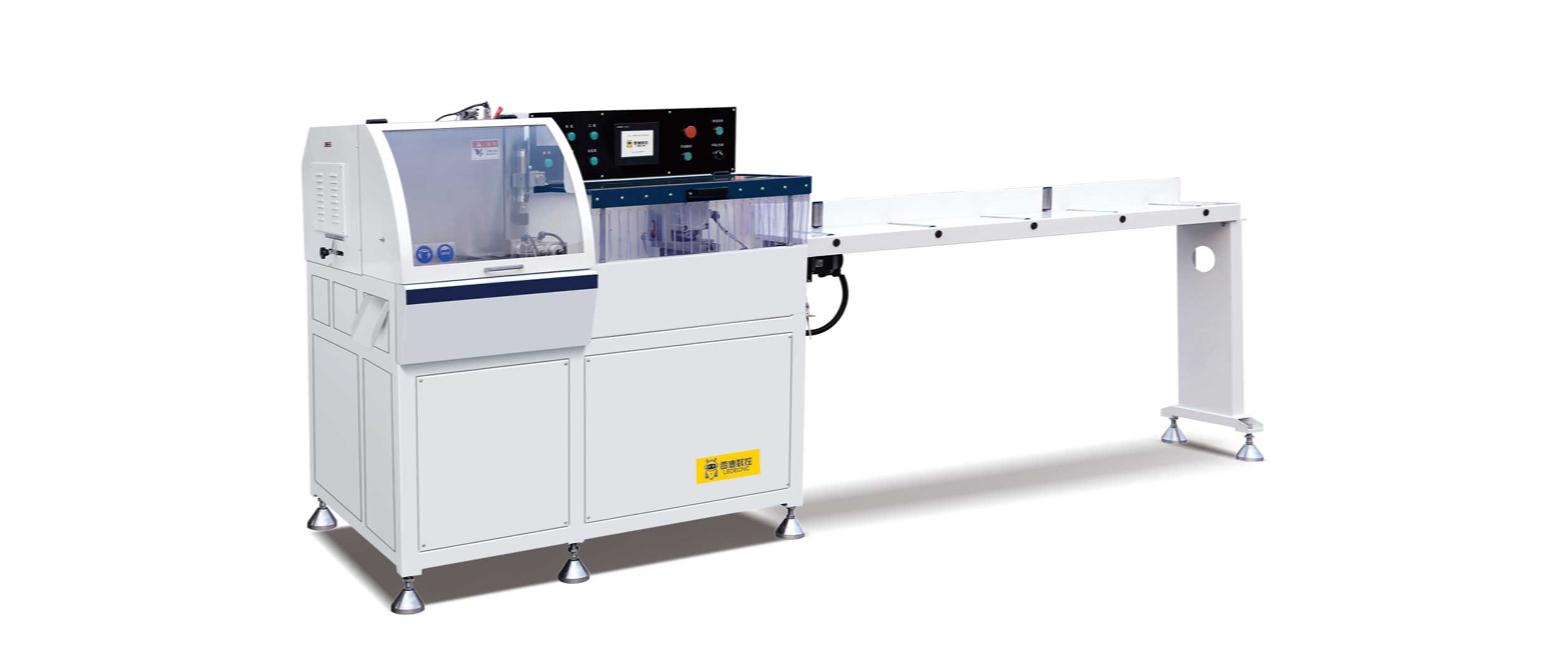

Malachite 500 CNC Corner connector cutting saw

CNC Corner connector cutting saw

Malachite 500

Malachite 500 – Primarily Used for Aluminum Window and Door Corner Connector Profile Cutting

Key Features:

  • Minimal Waste:
  • The machine achieves automatic cutting with a minimum leftover length of just 90mm.
  • Adjustable Cutting Stroke:
  • The cutting stroke is controllable, significantly improving work efficiency while saving time and energy.
  • High-Precision Tooling:
  • Equipped with original imported carbide saw blades, offering high cutting precision, long service life, and excellent processing accuracy.
  • Advanced Control System:
  • Features a state-of-the-art control system with high compatibility, stable performance, and long operational life.
  • Automatic Feeding System:
  • The feeding device employs an automatic feeding system that is stable, reliable, and highly efficient.

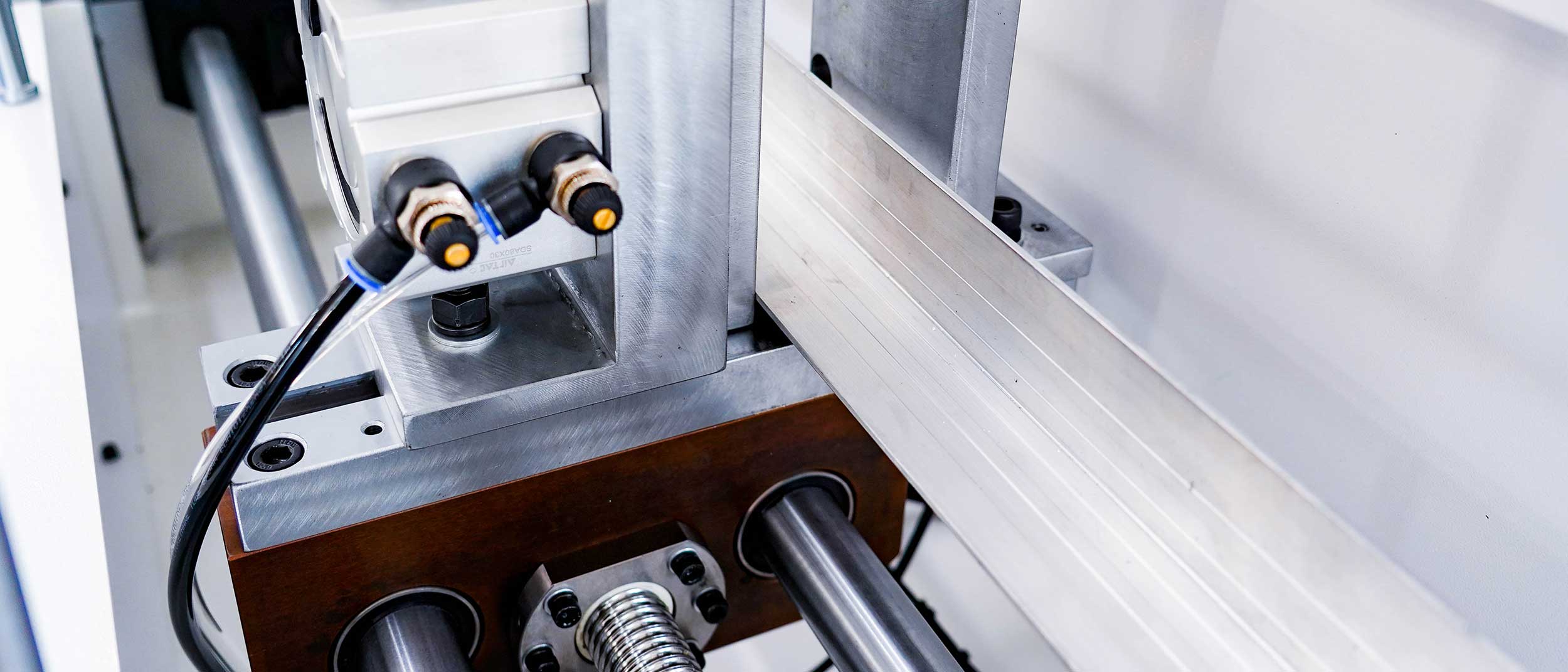

Servo motors

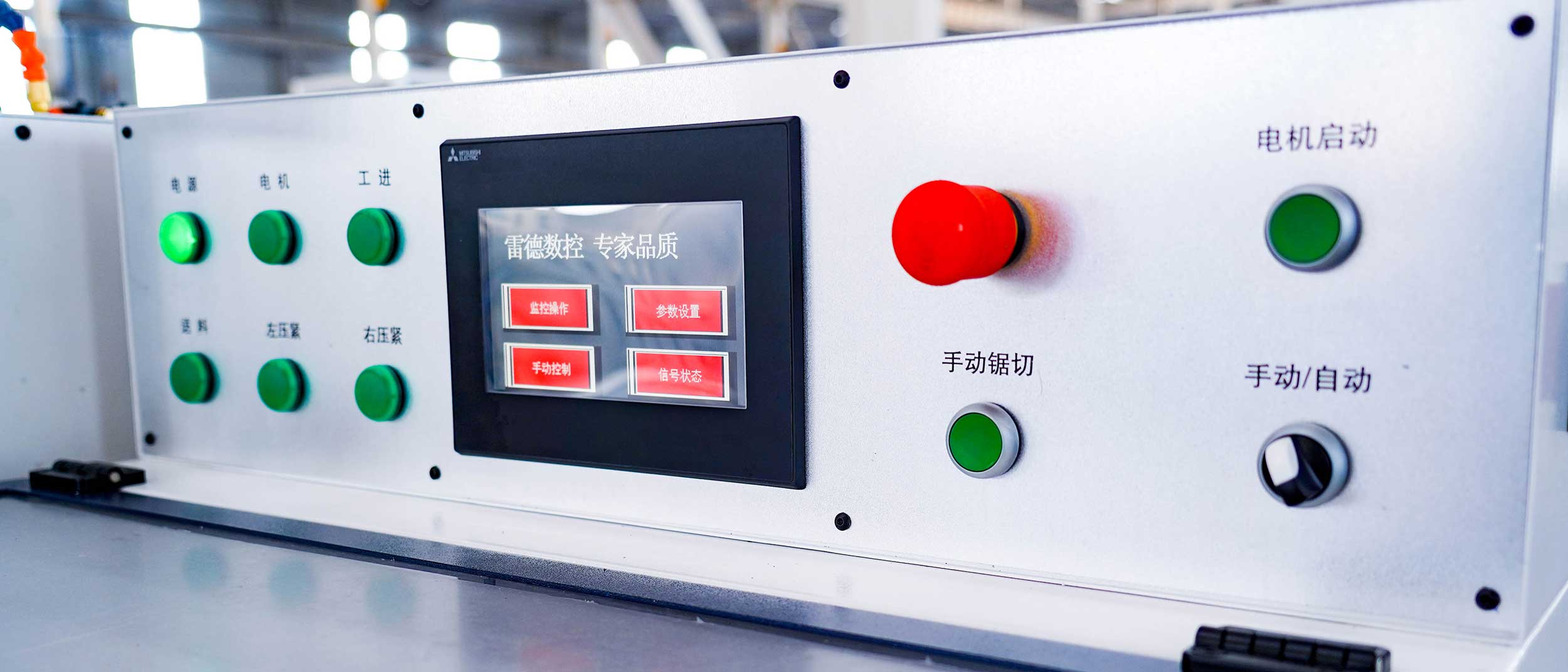

 Intelligent operating system

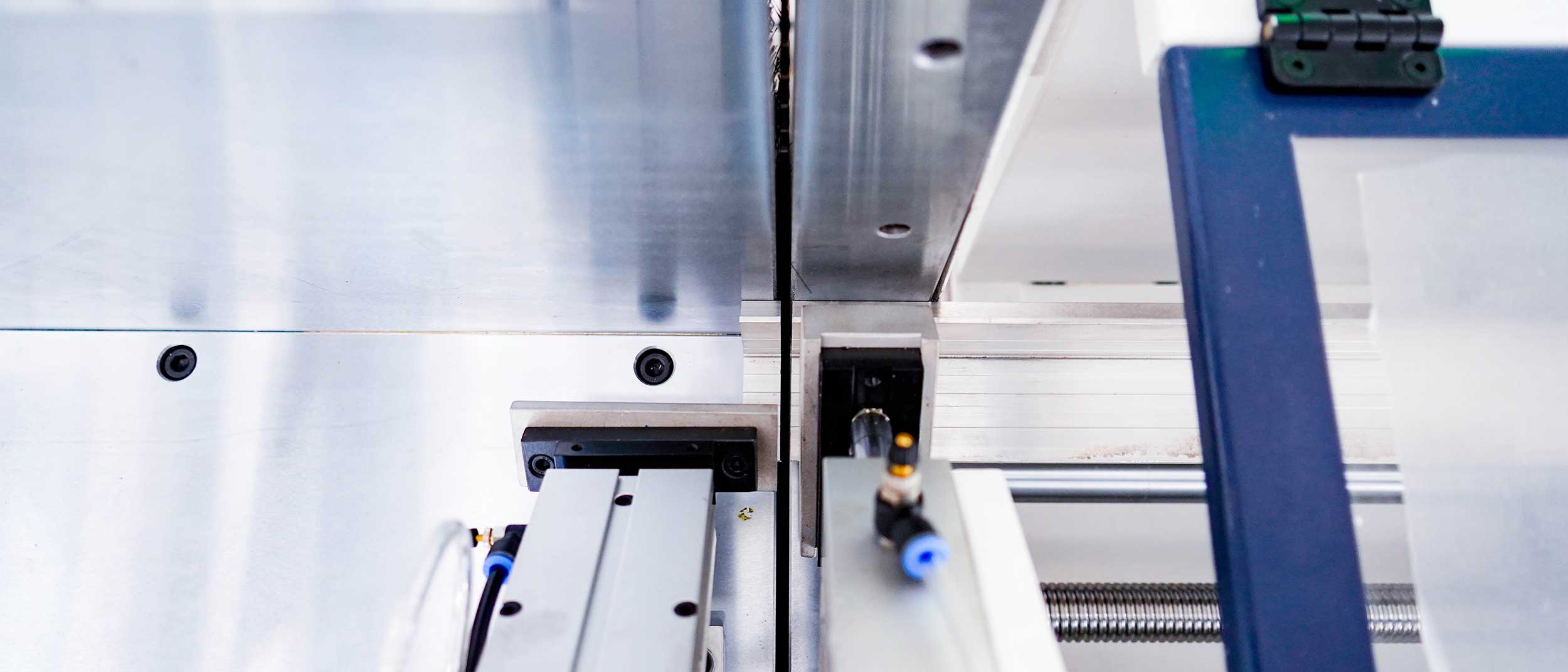

Automatic material handling system

Specifications:

Machining Parameters Parameter Value
Feed length 3 - 500 mm (for 90° cuts)
Maximum cutting range Height: 140 mm  Width: 135 mm
Saw blade size ø500×ø30×4×Z120
Saw blade speed 2,800r/min
General Parameters Parameter Value
Power supply 380V/50Hz
Power 4kw
Pressure 0.5-0.8 MPa
Gas consumption  30L/min
Air consumption per minute approx 250 L with spraying
Weight 700kg
Overall dimensions(L*W*H) 5,300×1,530×1,840mm

Layout :

Documentation

Malachite 500 CNC Corner connector cutting saw
Primarily Used for Aluminum Window and Door Corner Connector Profile Cutting
Download
