CNC Machining Center

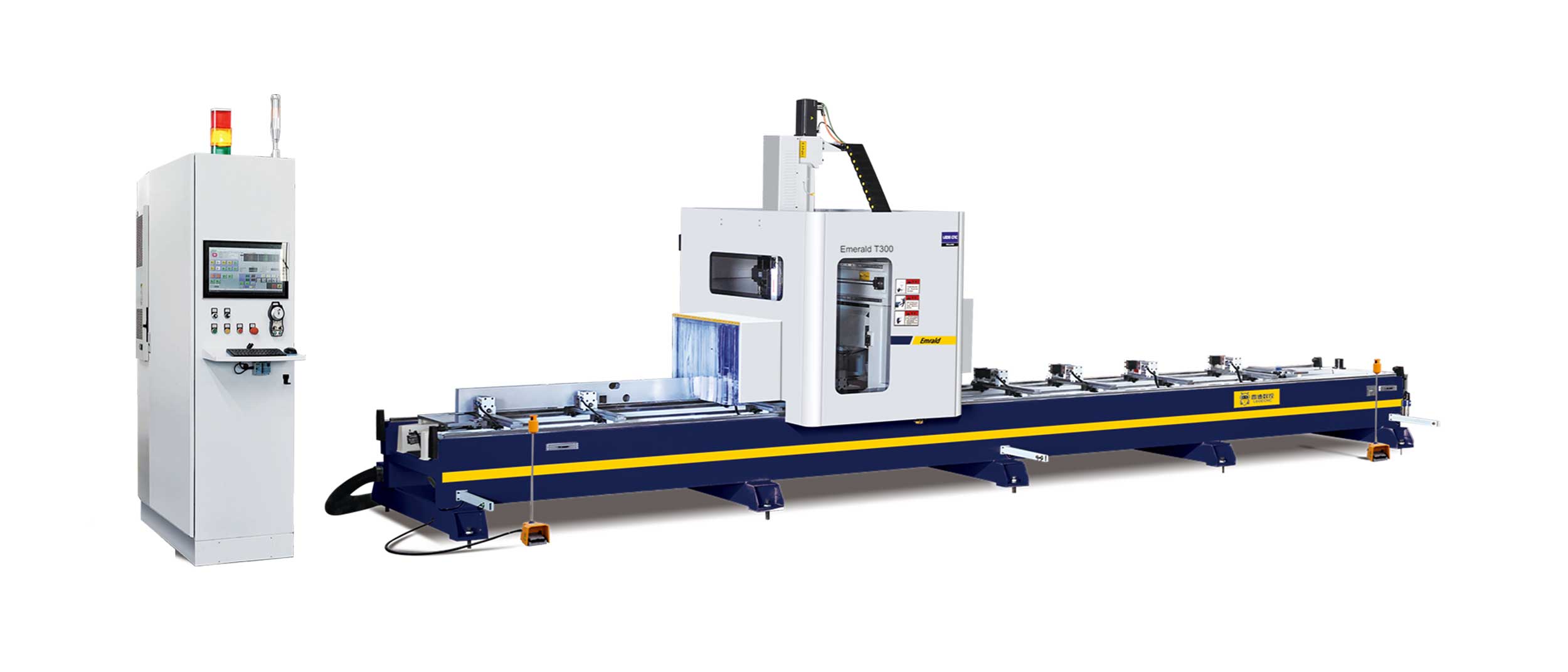

Emerald T300 3 Axis Machining Center

Three Axis Machining Center

Model:Emerald T300

Advanced Machining Center – Designed for High-Speed Milling, Drilling, and Tapping.

This machining center offers user-friendly operation, high-speed precision, and seamless integration with ERP systems for streamlined processing of aluminum and light alloy profiles.

Key Features:

  • User-Friendly Operation: Connects to ERP or other software systems for automatic loading of machining information via barcode scanning.
  • Gantry Frame Structure: Ensures smooth operation with a high running speed of up to 60 meters per minute.
  • Stability and Precision: Equipped with flat guide rails, servo motors, ball screws, linear guides, and bearings for high stability and reliability.
  • Powerful Electric Spindle: Original Italian electric spindle with speeds up to 24,000 RPM for high-speed milling, drilling, and tapping.
  • Tool Magazine: Six-tool magazine design ensures fast and precise tool changes.

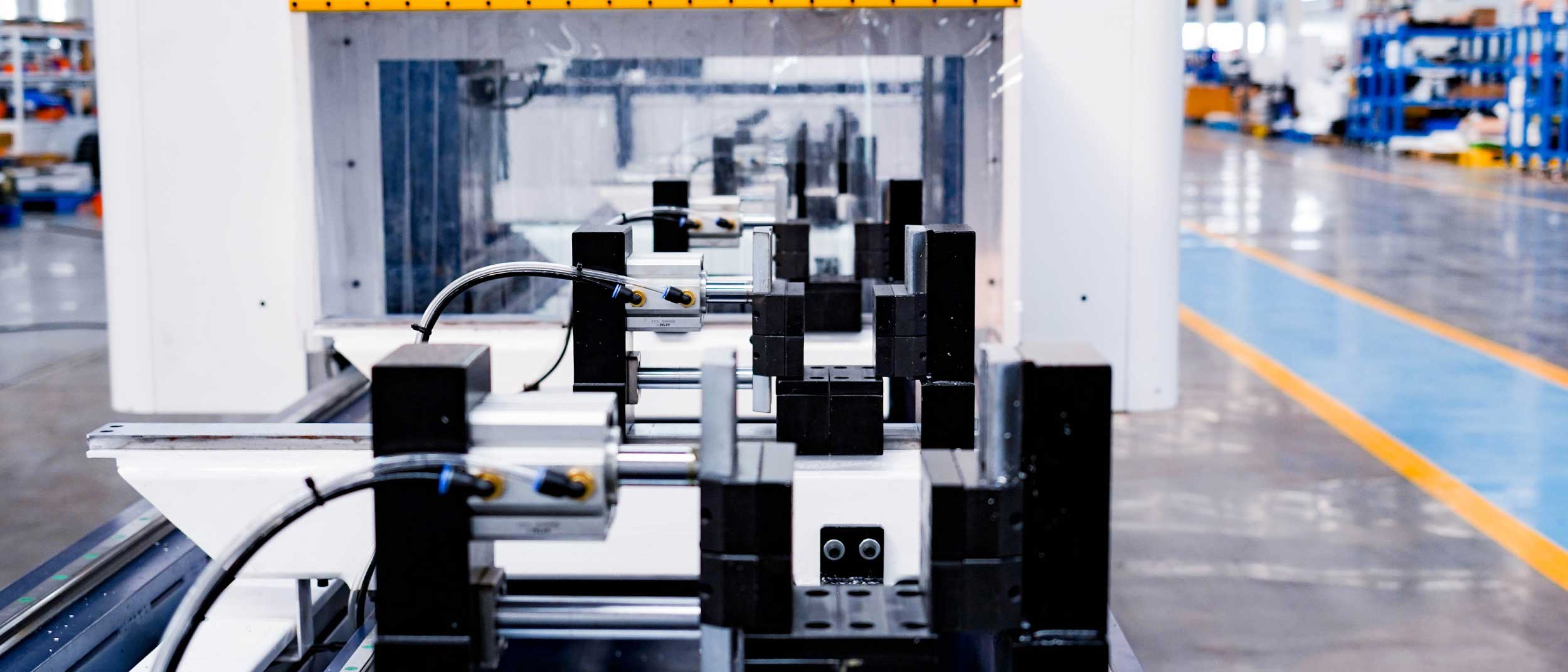

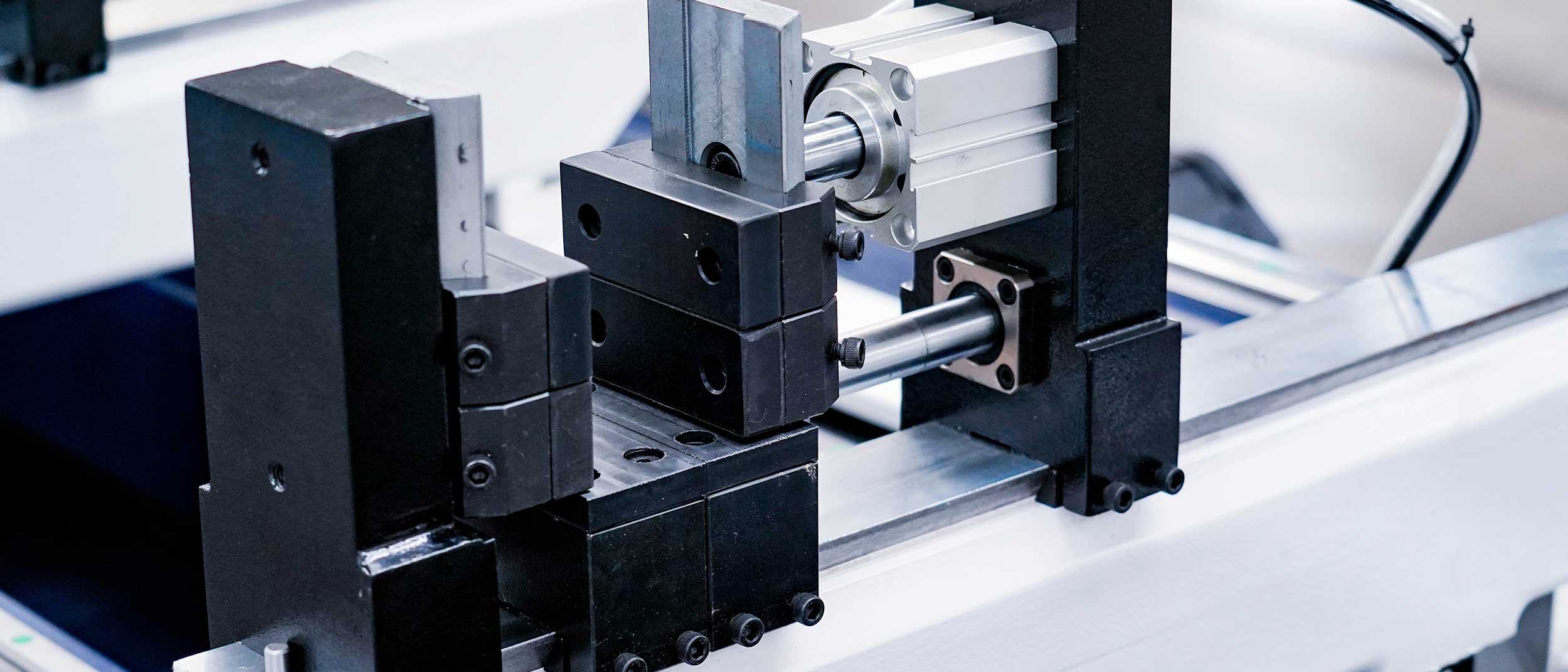

  • Intelligent Clamping System: Advanced software supports automatic clamp positioning and free combination for versatile machining.
  • Dual Work Zones: Allows interactive loading and unloading without stopping the machine, improving efficiency.
  • Eco-Friendly Lubrication: Advanced micro-lubrication system for an eco-friendly and energy-efficient working environment.

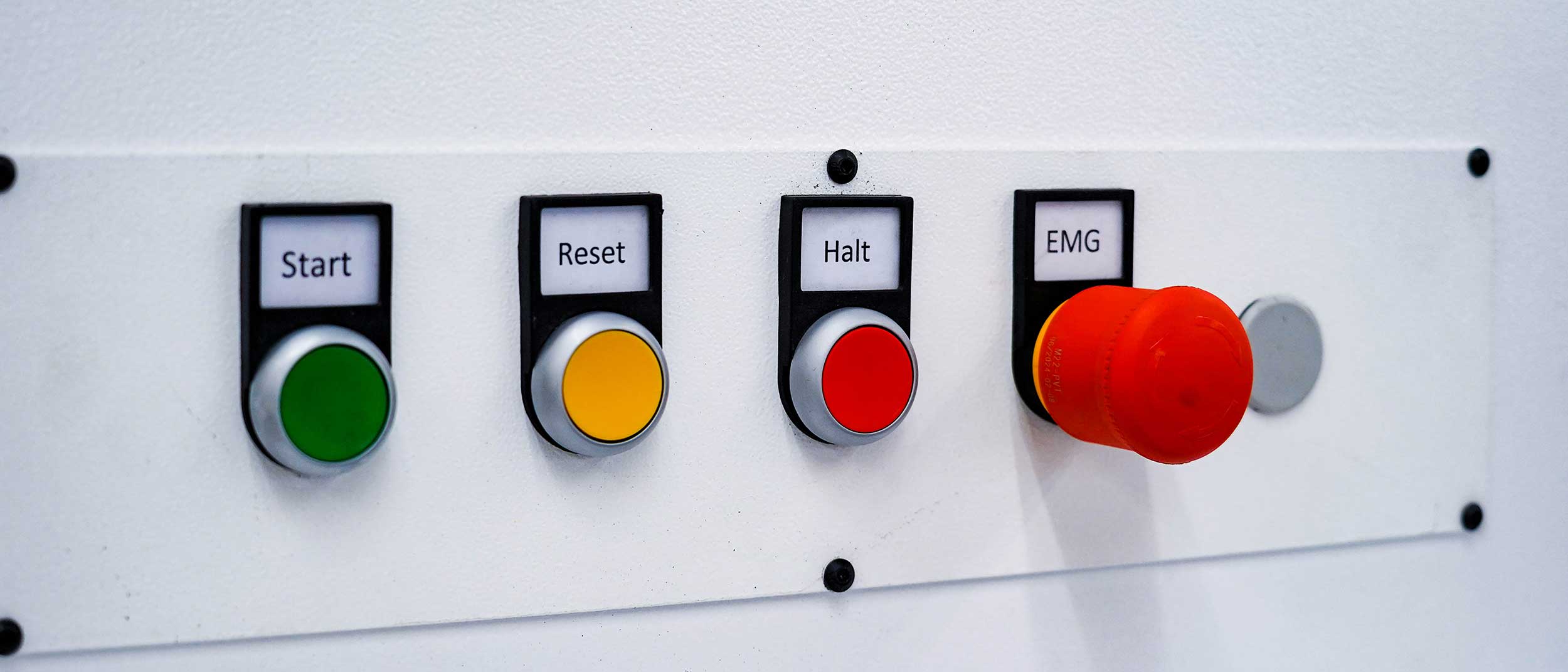

  • Safety Protection: Features infrared safety protection to ensure operator safety.

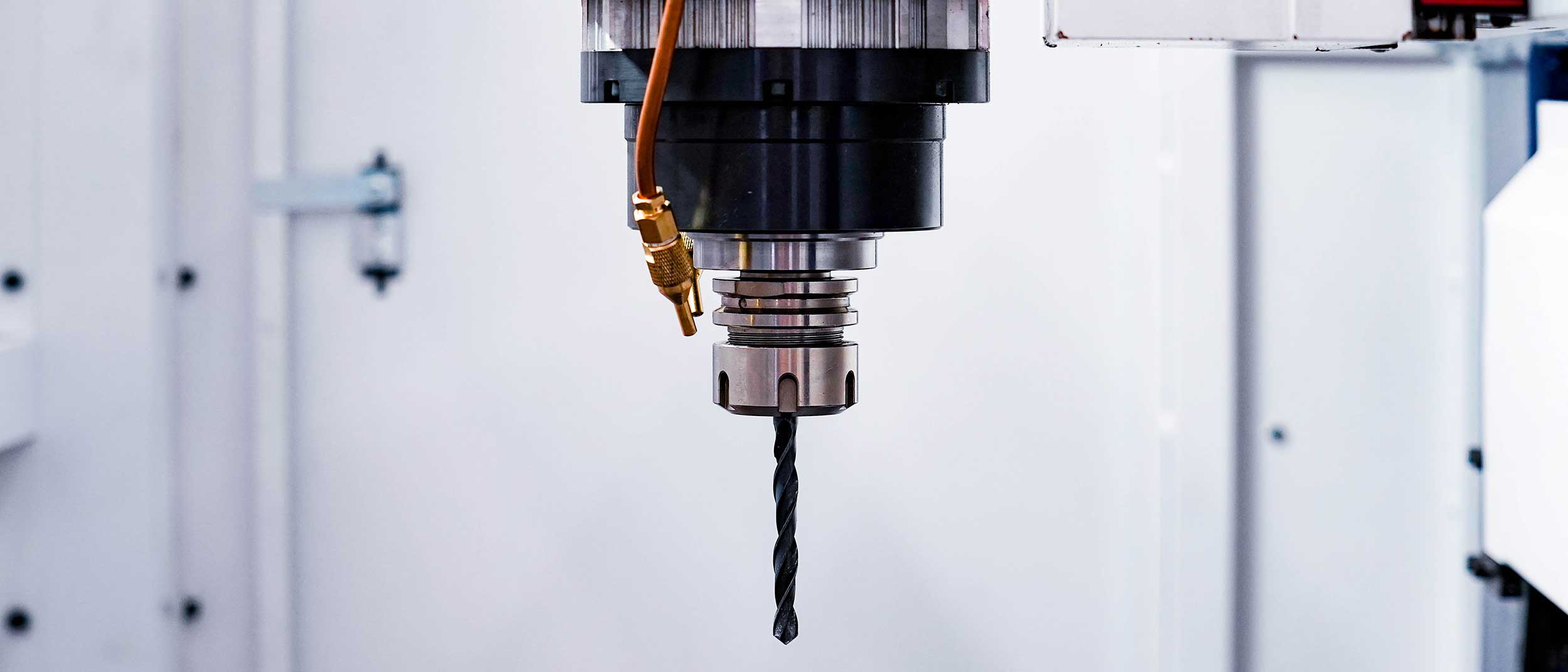

High precision machining

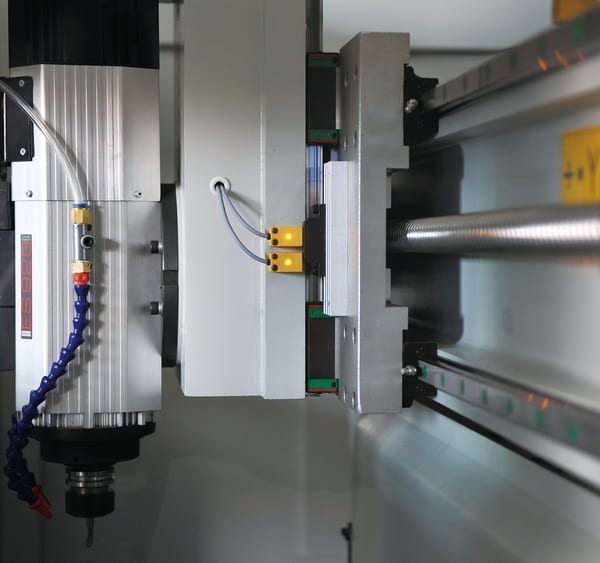

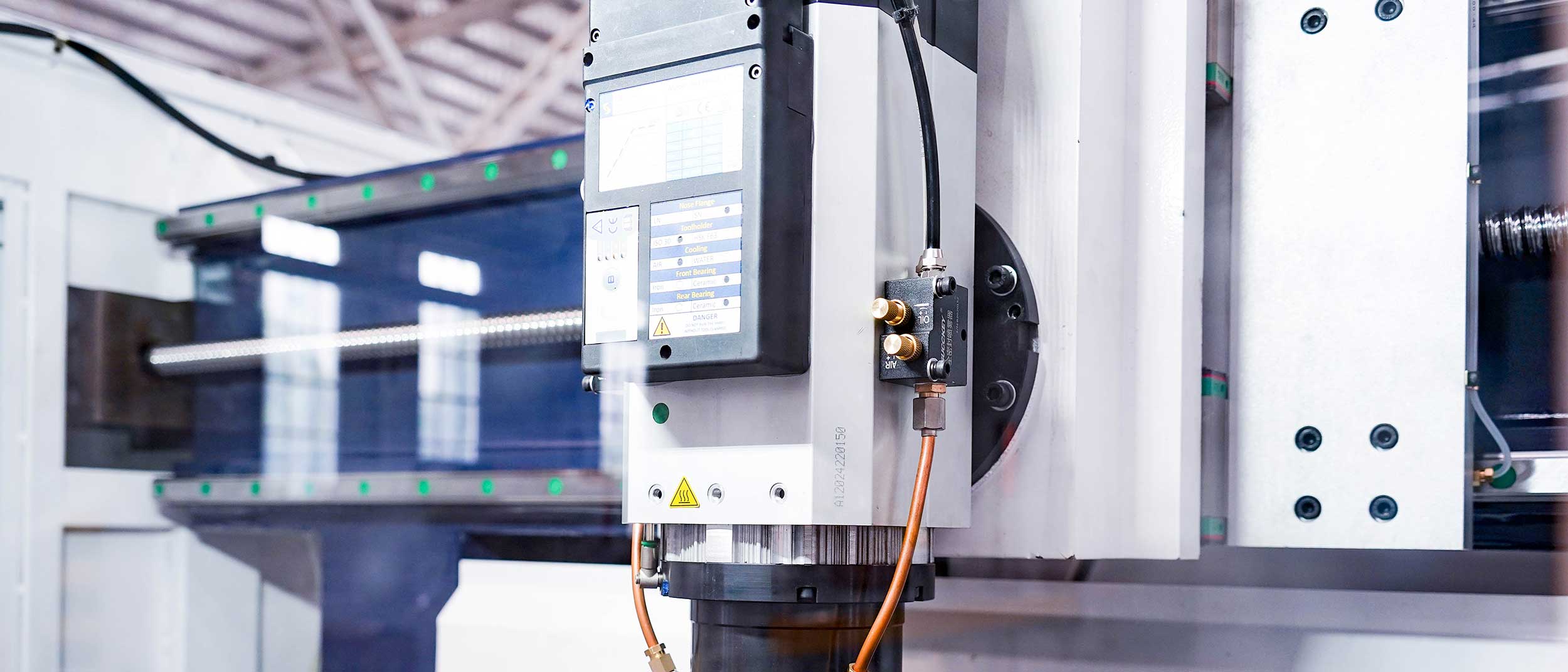

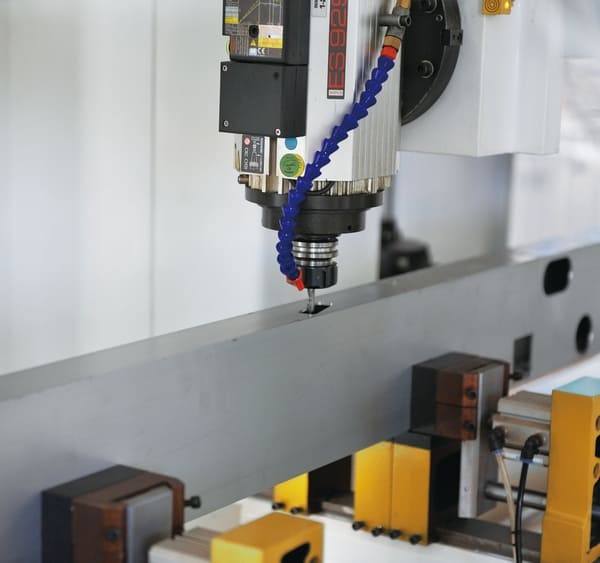

Close-up for the electric spindle

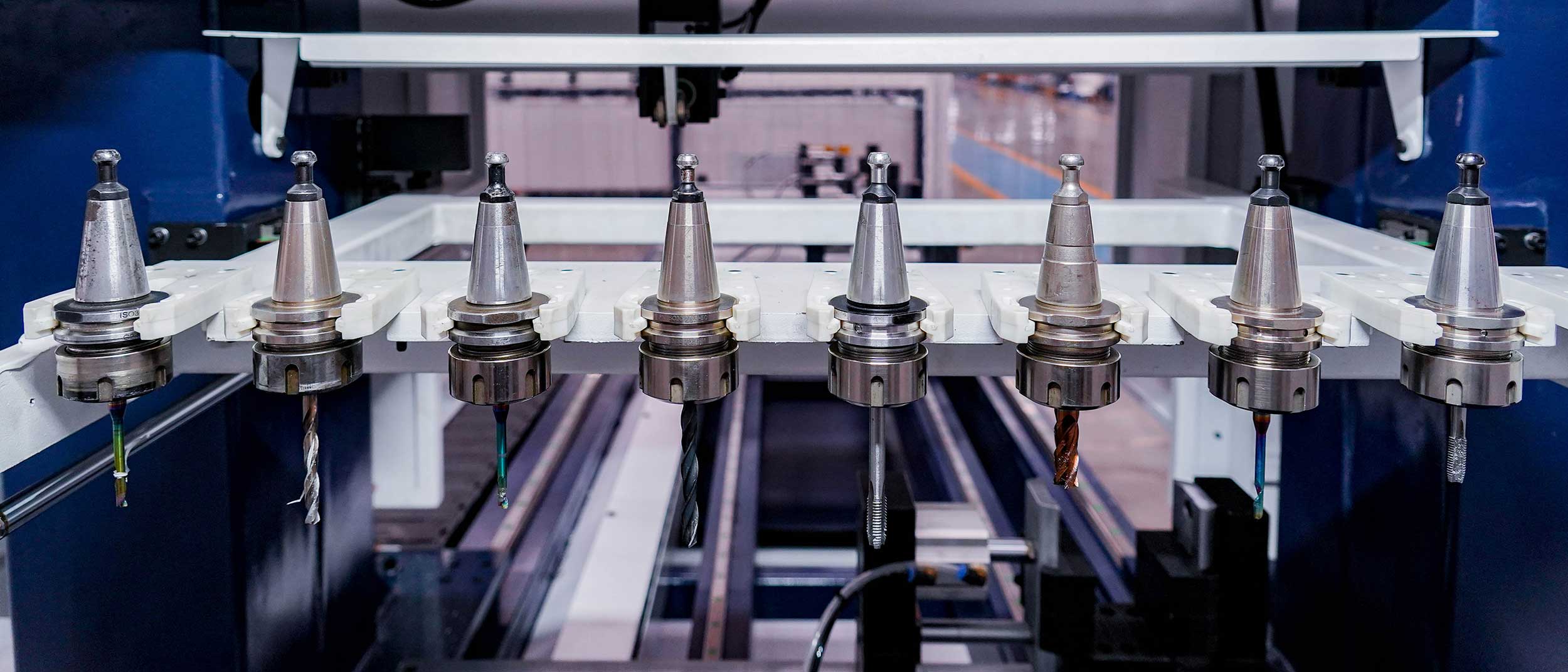

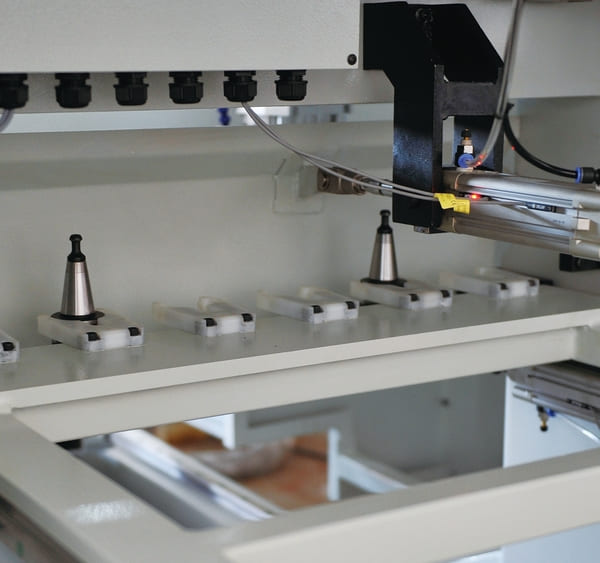

Close-up for tool storage magazine

Specifications:

Machining Specifications Parameter Value
Traverse path X-axis 7,000/9,000/12,000/15,000 mm
Travel Workpiece Dimensions for Top Surface Machining W×H=600×260 mm
Workpiece Dimensions for Three-Sided Machining W×H=400×260 mm
A-Axis Rotation Range ±90°
Machining Precision Parameter Value
Positioning Accuracy ± 0.03 mm
Positioning accuracy X-/Y-/Z- axis ± 0.1 mm
Positioning accuracy A-axis ± 0.1°
Technical Parameters Parameter Value
Tool Magazine 9
Clamp 8
Tool Holder Specification ISO30 S1=7.5KW S6=9.5KW 24000rpm
Saw Blade Diameter Ф 80 - Ф 150 mm
X-Axis Travel Speed 0-60 m/min
Y Z-Axis Travel Speed 0-30 m/min
General Parameters Parameter Value
Machine size (L×W×H) 9000×2350×2900 mm
Machine weight 4500 KG
Air pressure 0.5-0.8 MPa
Power supply 15 KW 400V 50HZ
Air consumption per minute approx 200 L with spraying
