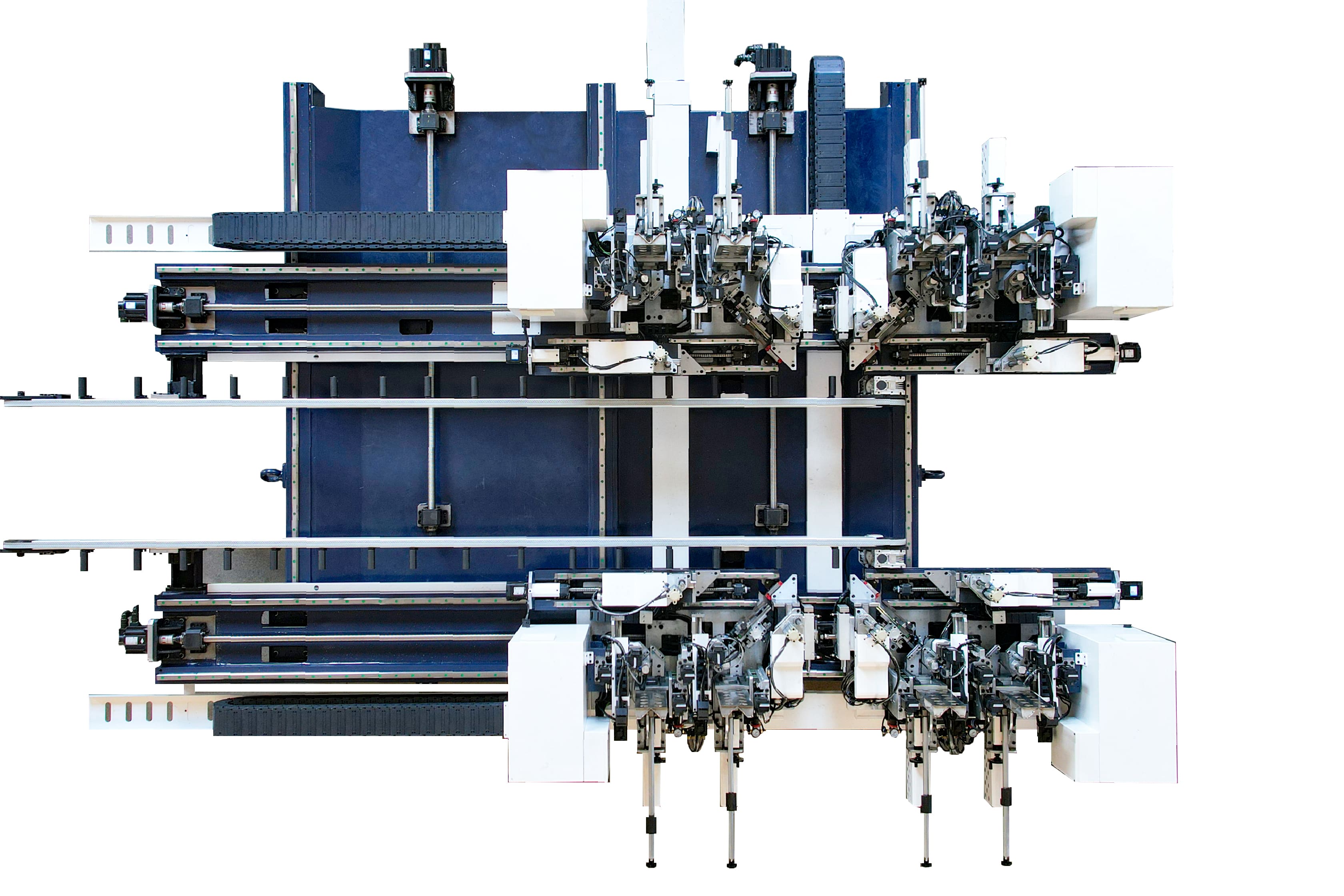

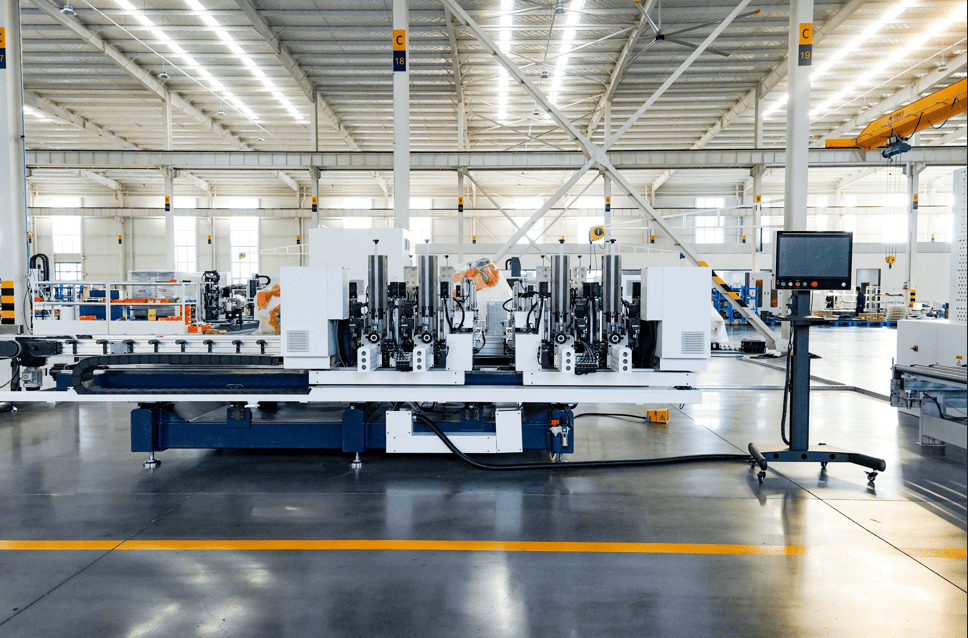

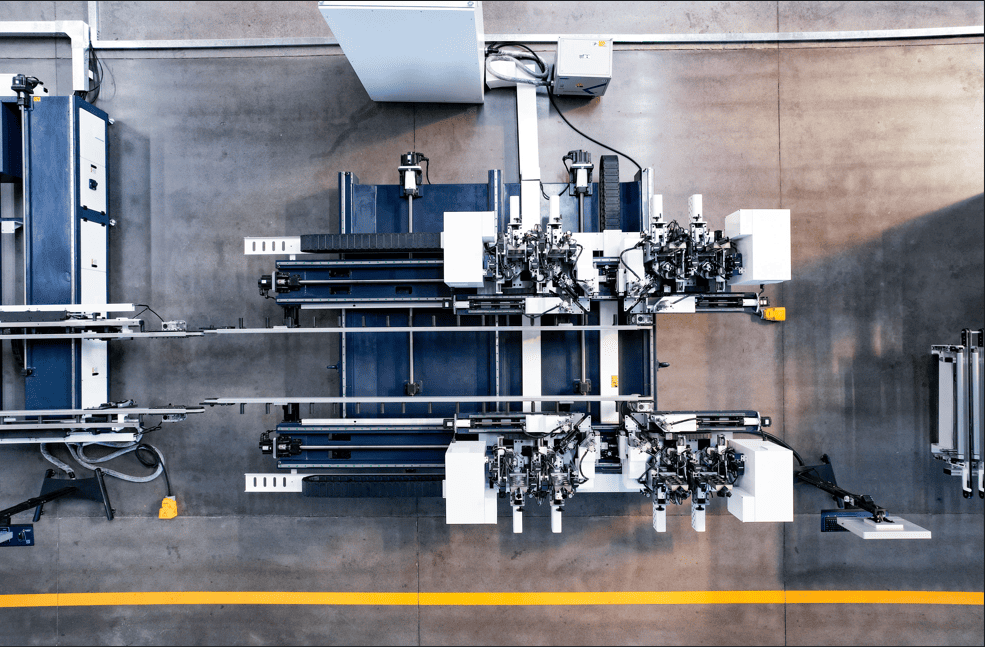

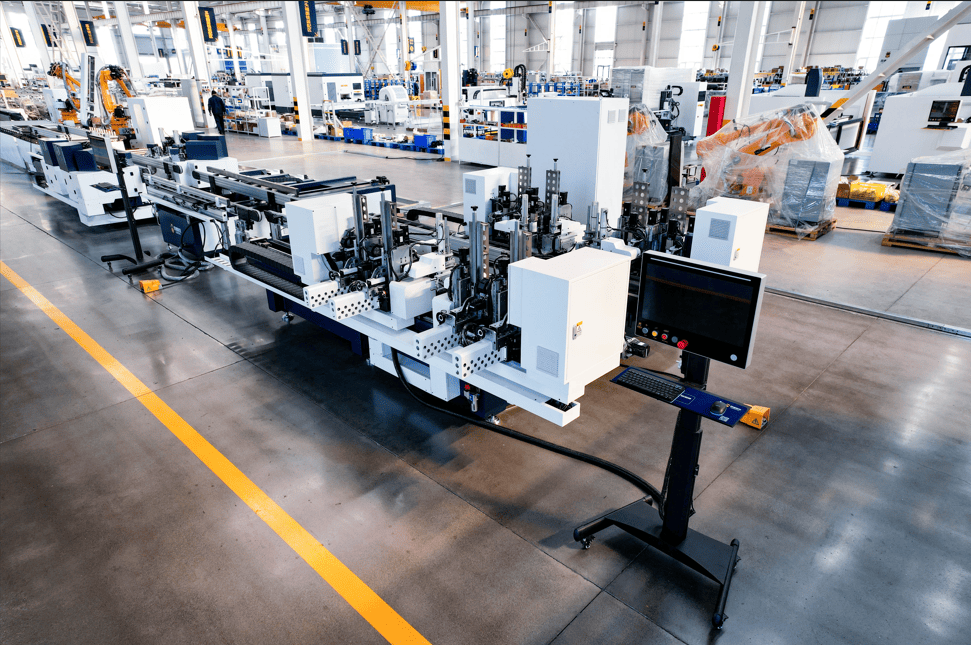

Zircon 2500 Intelligent corner cleat assembly line

Intelligent corner cleat assembly line

Model: Zircon 2500

Zircon 2500– automatic assembly of corner cleat at the corners of frames and sashes, without manual work, to achieve seamless connection with upstream and downstream processes in door and window production.

Key Features:

● Fully Automated Corner Cleat Assembly: Designed for automatic assembly of corner cleats at the frame and sash corners, eliminating manual operation and enabling seamless integration with upstream and downstream processes in window and door production.

● Multi-Material Storage: Equipped with 8 material bins in total, with each machine head configured with 2 different types of corner cleat bins for flexible production needs.

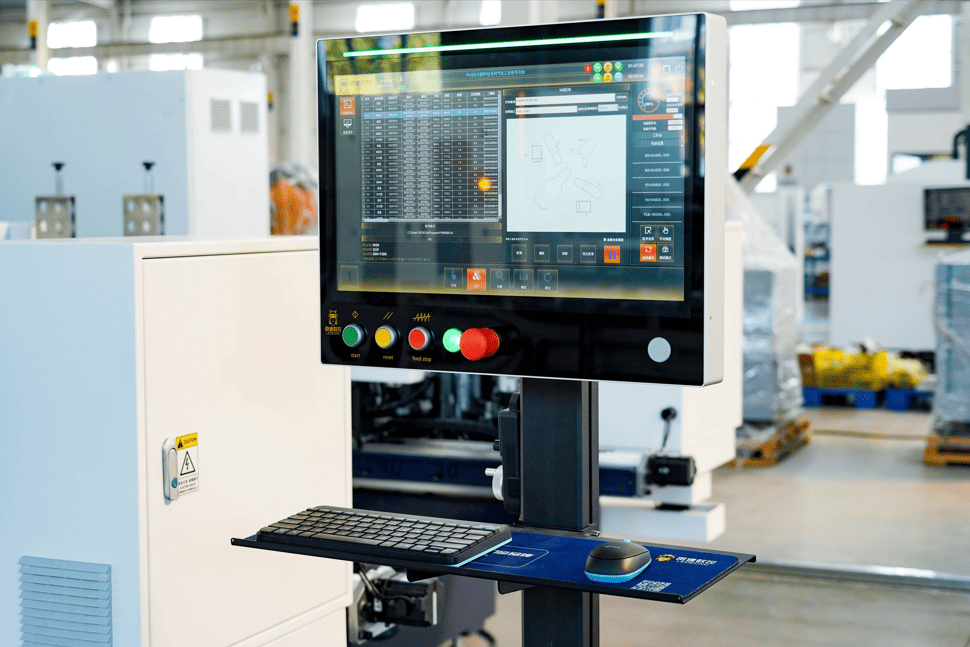

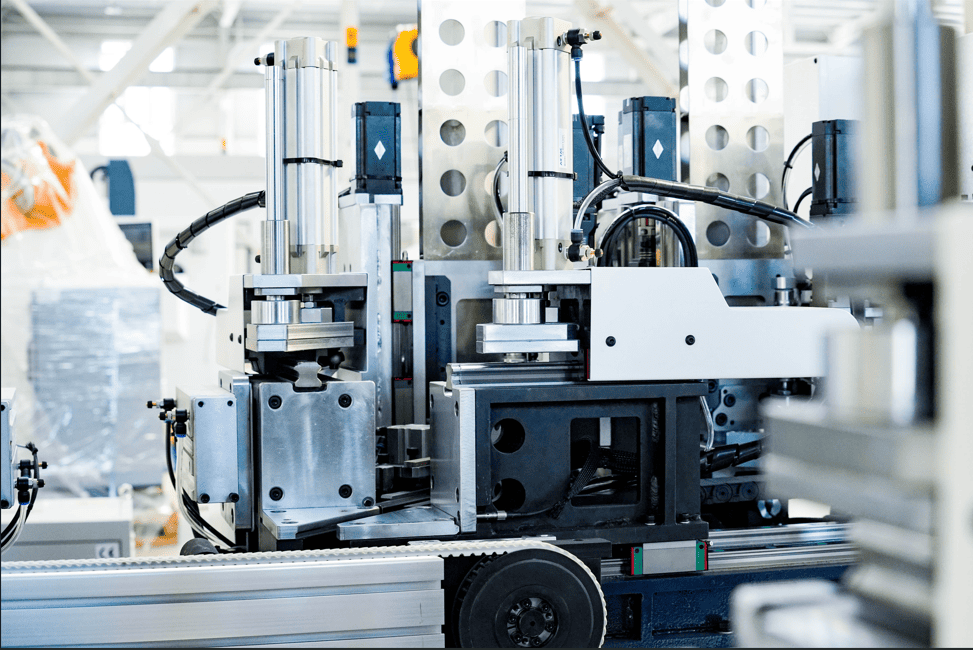

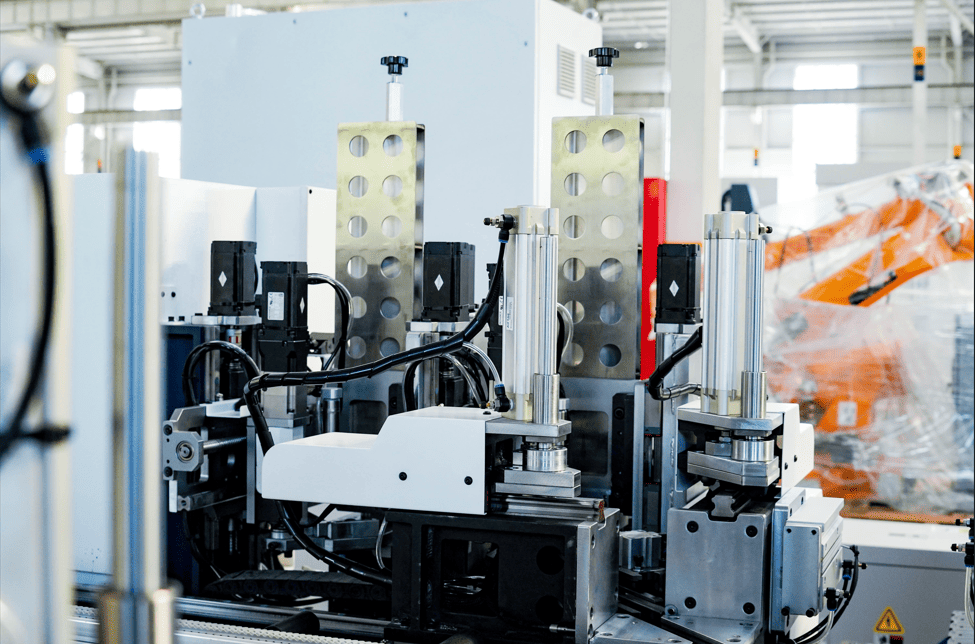

● CNC Control with 72 Servo Motors: Utilizes CNC control and 72 servo motors for precise positioning, feeding, and assembly actions, ensuring stable and accurate operation.

● High Precision: Advanced servo control system delivers high precision in corner cleat insertion and assembly, guaranteeing consistent product quality.

● Intelligent Feeding & Positioning: Features an integrated material carrying and feeding system that aligns profiles accurately and combines them for automatic corner assembly, perfectly matching with intelligent corner crimping production lines.

● High Efficiency: Greatly improves the automation level and production efficiency of frame and sash corner assembly, achieving a fast cycle time of just 50 seconds to complete the corner cleat installation for a single frame or sash.

● Seamless Line Integration: Designed for full compatibility with smart corner crimping lines and other automated equipment, maximizing productivity and minimizing manual intervention.
