Ultra X380 – A high performance Cutting and Milling Machining Center for Larger Profile
A high-performance cutting and milling center for large aluminum and light alloy profiles of curtain wall, designed for milling, drilling, and cutting heads and ends
| Capacity | |
|---|---|
| Raw Profiles Placed | 3 PCS |
| Raw Profile length | 1,000–7,000 mm |
| Processing Lenth | 400-7,000mm |
| Processing Width | 30-380mm |
| Processing Height | 30-200mm |
| Milling unit | |
|---|---|
| Total Number | 6 |
| Upper Spindle | 1*13.5KW 1*6.7KW |
| Lower Spindle | 1*13.5KW 1*6.7KW |
| Front Spindle | 6.7KW ±90° |
| Rear Spindle | 6.7KW ±90° |
| Spindle speed | 18,000r/min |
| Tool | φ5、φ8 |
| Total Number | 12 |
| Sawing unit | |
|---|---|
| Saw Blade | 1*600mm 7.5KW |
| Axis | 5 |
| Rotation Angle | Any angle |
| Spindle speed | variable frequency |
| Accuracy | ±0.1 mm |
| End Milling Unit | |
|---|---|
| Saw Blade | 1*400mm 3KW |
| Axis | 4 |
| Rotation Angle | ±90° |
| Accuracy | ±0.1 mm |
| General | |
|---|---|

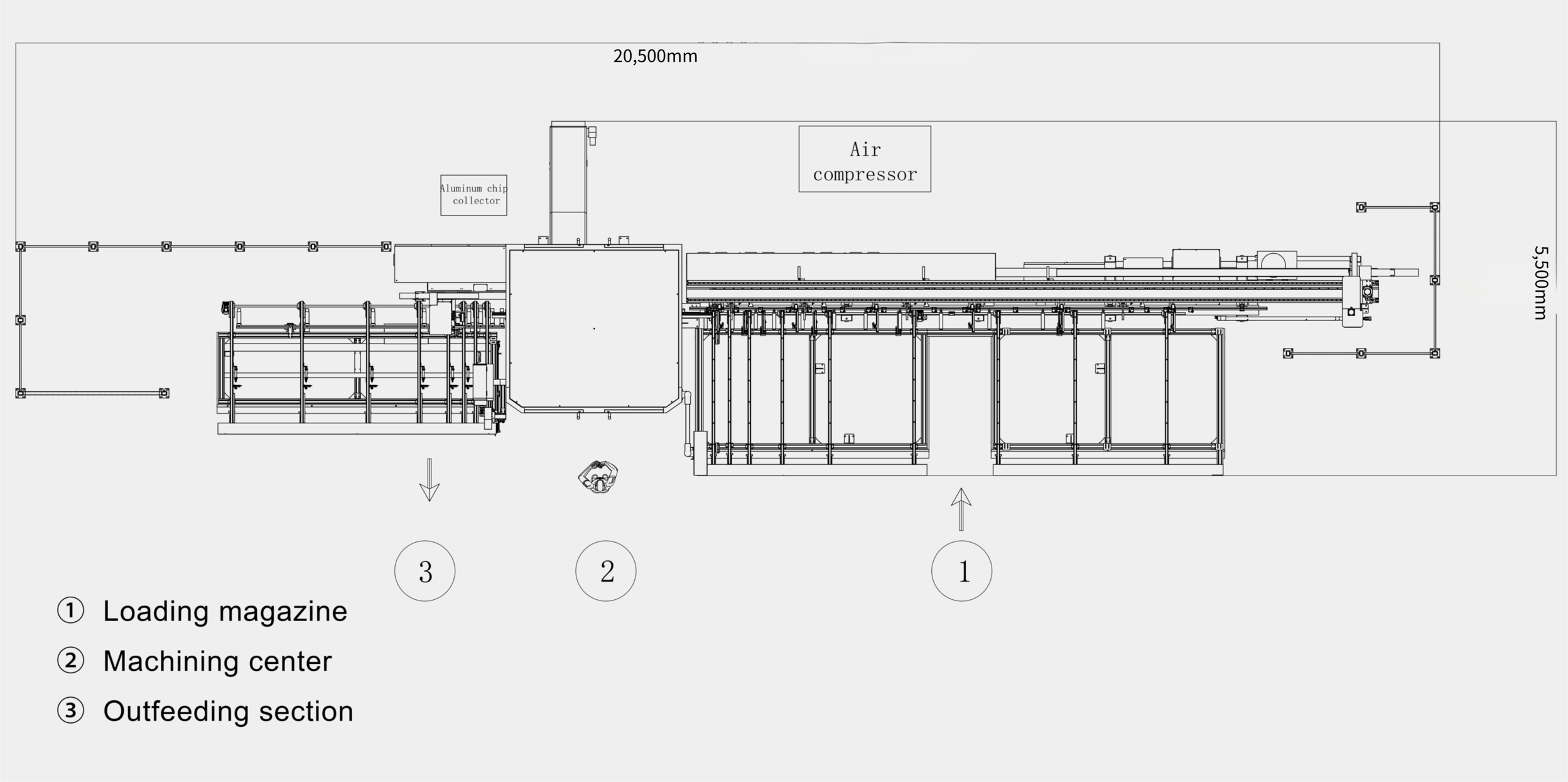

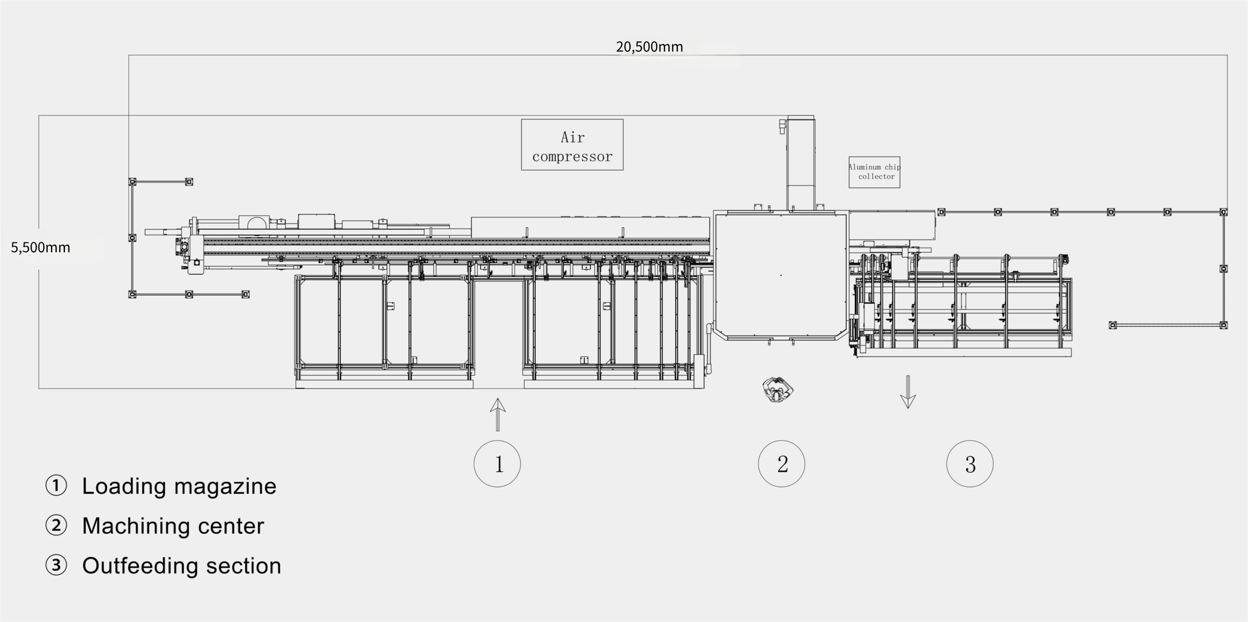

| Dimension | 20,500×5,500×3,340mm |
| Weight | 16,000kg |
| Power supply | 380V/50Hz |
| Total power | 56KW |
| Air pressure | 0.5~0.8Mpa |
| Air consumption | 300L/min |
