Ultra X260-E – A high performance Cutting and Milling Machining Center for aluminium profile.
Key Features:
| Capacity | |
|---|---|
| Raw Profiles Placed | 5 PCS |
| Raw Profile length | 600–7000mm |
| Processing Lenth | 400-7000mm |
| Processing Width | 20-260mm |
| Processing Height | 30-190mm |
| Milling unit | |
|---|---|
| Number of Spindle | 4 |
| Spindle Power | 6KW |
| Front Spindle Rotation | 105° （45° upward and 60° downward） |
| Spindle speed | 18,000r/min |
| Tool | φ5、φ8 |
| Total Number | 8 |
| Laser | 1*30W 1*1.5KW |
| Sawing unit | |
|---|---|
| Saw Blade | 1*600mm 7.5KW |
| Rotation Angle | 40°-140° |
| Axis | 3 |
| Accuracy | ±0.1 mm |
| End Milling Unit | |
|---|---|
| Saw Blade | 1*450mm 2.5KW |
| Axis | 4 |
| Rotation Angle | ±90° |
| Accuracy | ±0.1 mm |
| General | |
|---|---|

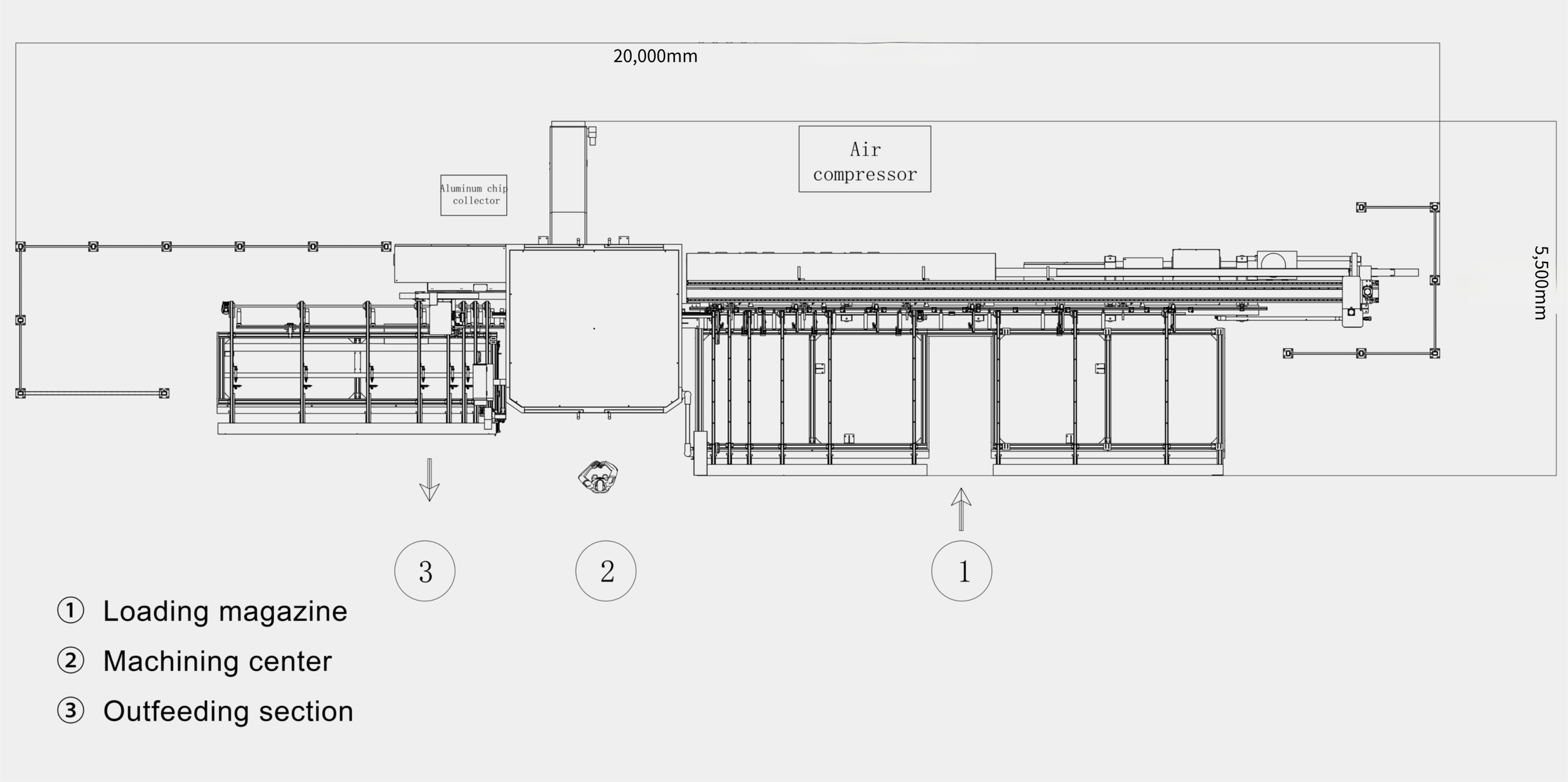

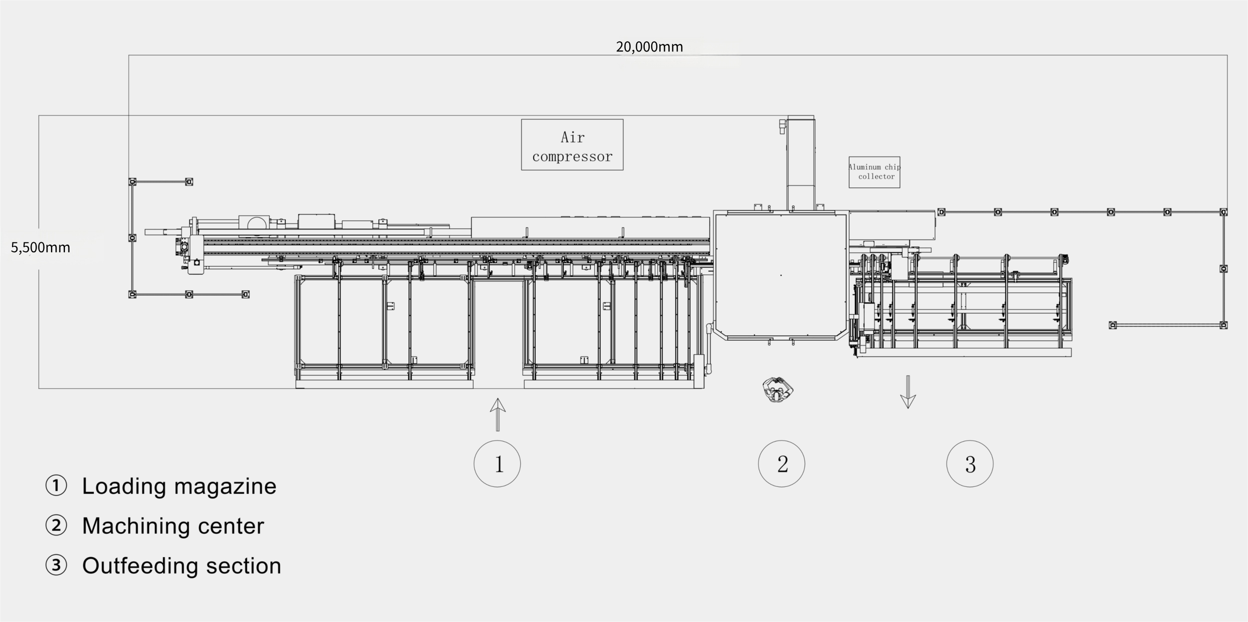

| Dimension | 20,000×5,500×2,500mm |
| Weight | 16,000kg |
| Power supply | 380V/50Hz |
| Total power | 36KW |
| Air pressure | 0.5~0.8Mpa |
| Air consumption | 300L/min |
Laser Equipped Milling, Drilling, Sawing Machining Center for Aluminium Window Door and Curtain Wall
An all-rounder for your aluminum windows and doors manufacturing
Designed to perform drilling, milling, sawing, and end milling operations for aluminum profiles, the S100 series streamlines production, boosts capacity, and minimizes labor costs through full automation.
Laser Equipped Milling, Drilling, Sawing and End Milling Machining Center for Aluminium Curtain Wall
The S200 series ensures detailed material flow organization, strict quality control, and reduced labor and management costs. Each profile is labeled with a sticker containing specifications and a QR code for traceability.
