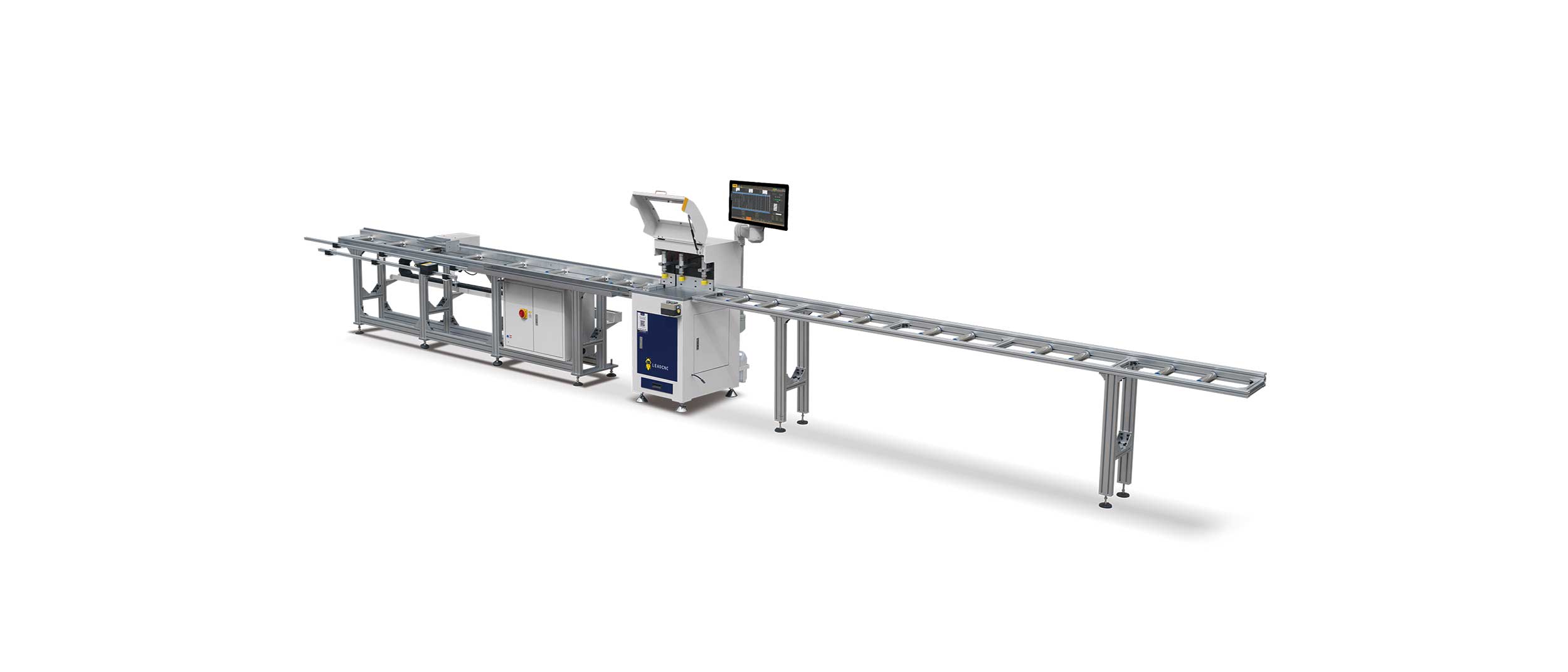

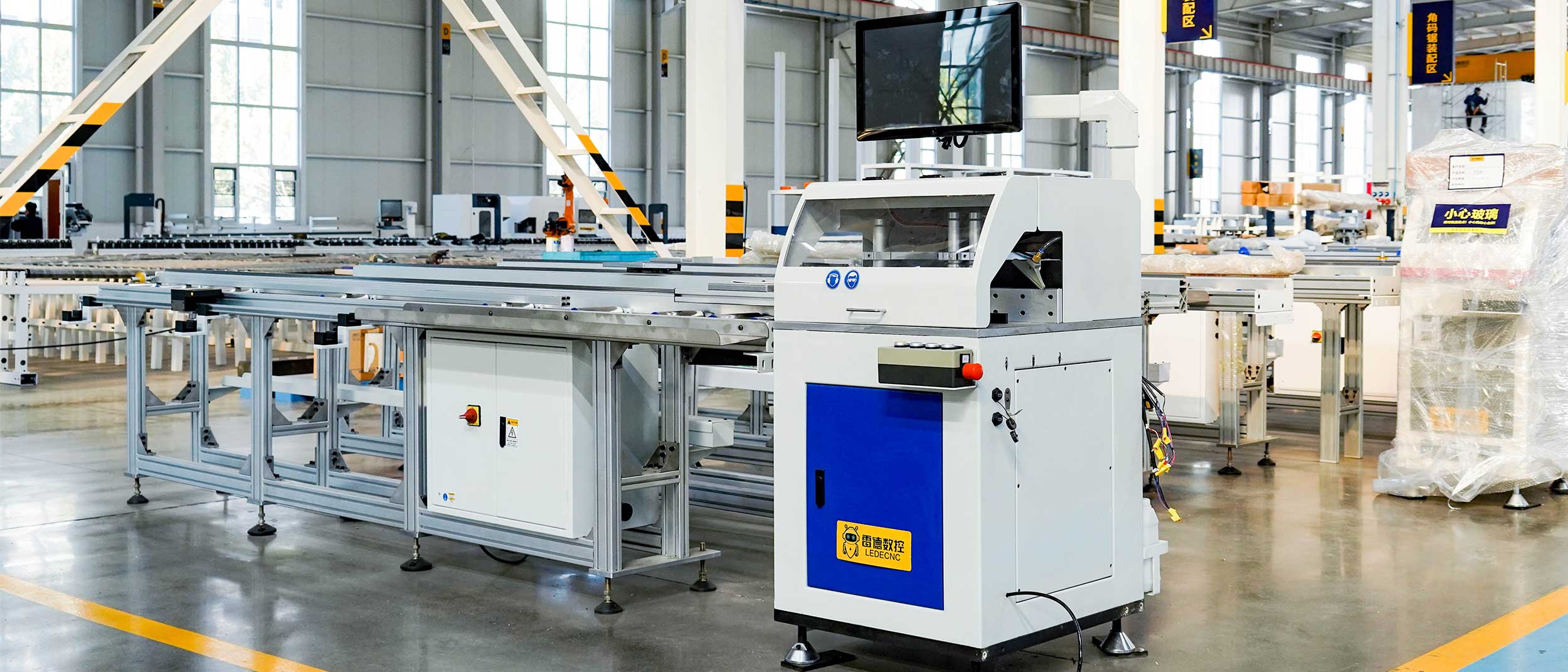

Turquoise 350R CNC Cutting Center With Wireless Measurement Of Depression Bar

Model: Turquoise 350R

Turquoise 350R – Specialized for Cutting Glazing Beads in Aluminum Alloy Windows and Doors


Type 1:90°cut , Type 2:Arbitrary angle cut Range = +22.5°- 157.5°

Key Features:

  • User-Friendly Operation: Features wireless measurement and automatic data transmission for precise CNC-based sizing. Cuts glazing beads to the required dimensions in one step, eliminating the need for additional trimming.
  • High Precision: Equipped with a handheld wireless measuring device for real-time bead size measurement and a high-precision spindle saw blade motor, achieving a processing accuracy of 0.1mm.
  • High Efficiency: Saves the need for an experienced craftsman, doubling the efficiency compared to traditional cutting methods.
  • Unique Chip Removal Design: Includes a waste collection box, ensuring a cleaner workspace.
  • Tool Management and Maintenance: Comes standard with a tool life management system and automatic maintenance reminder function.

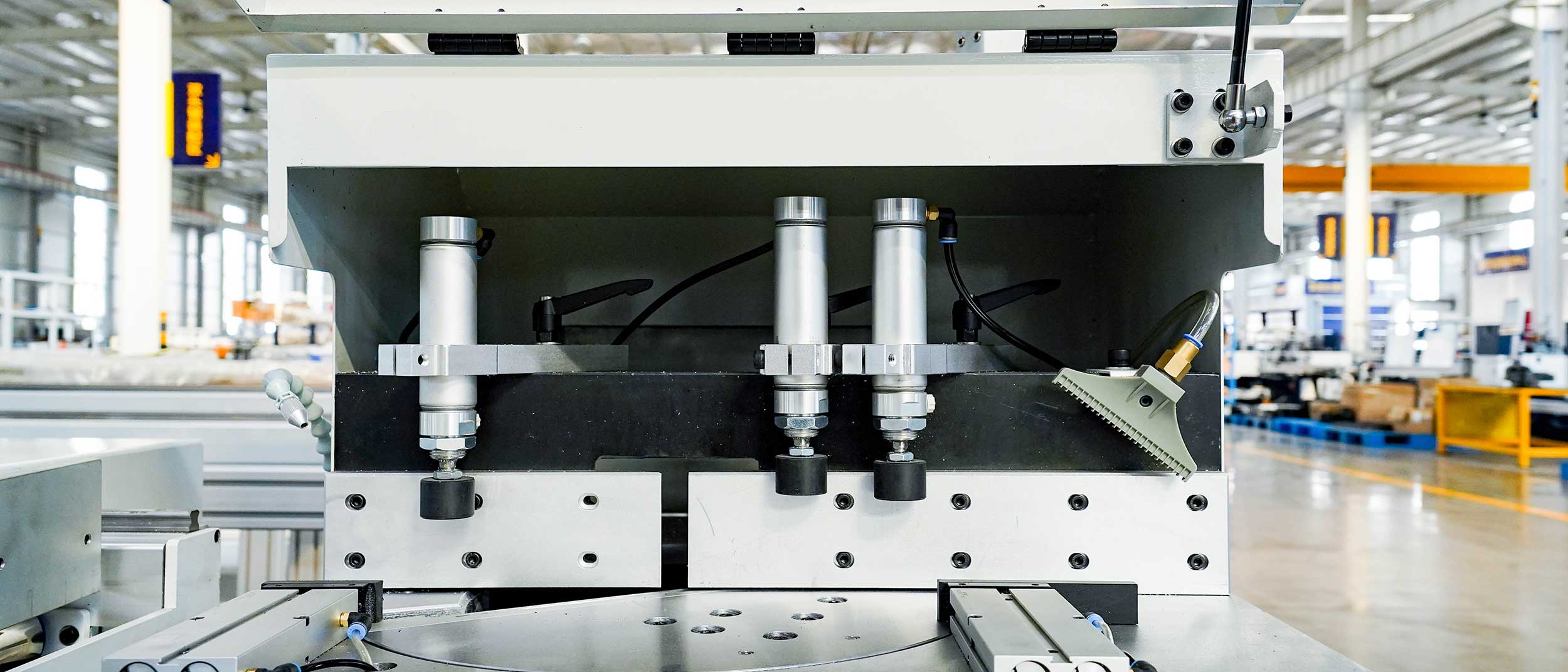

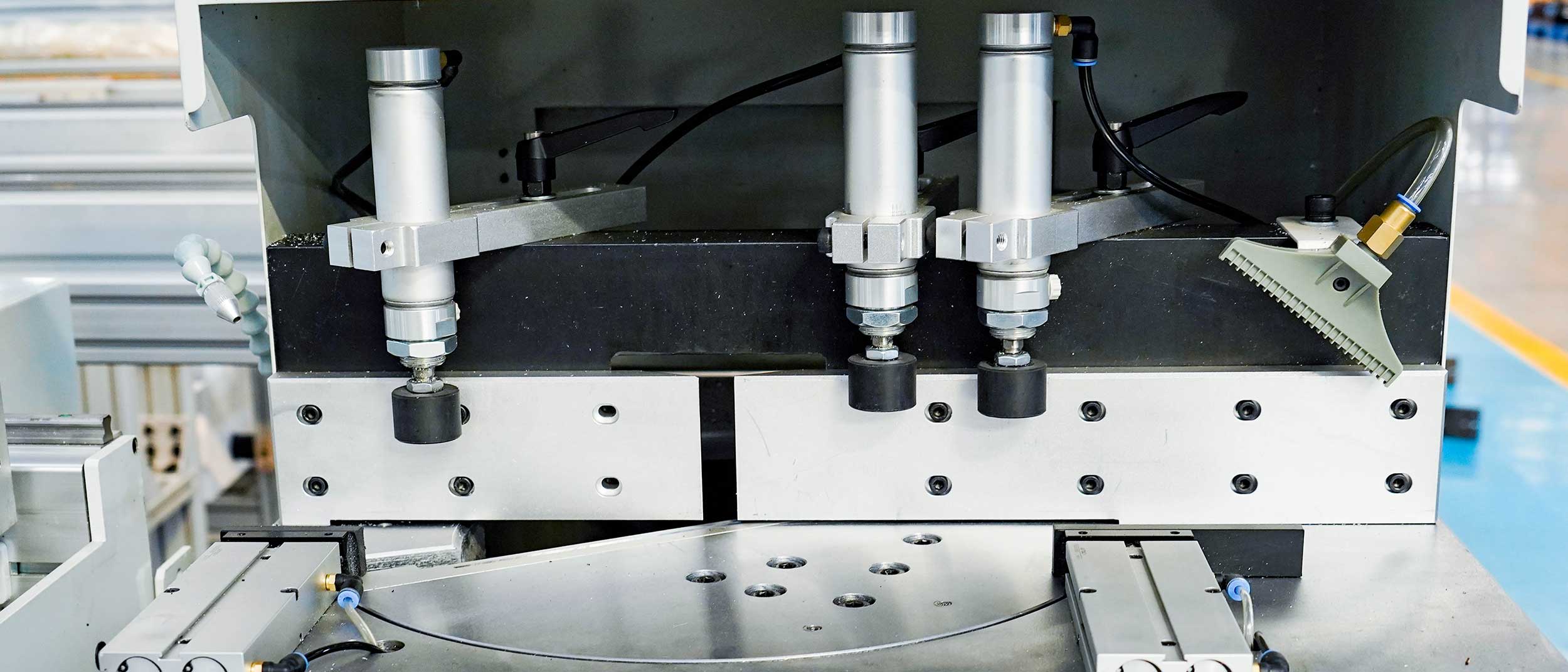

Saw

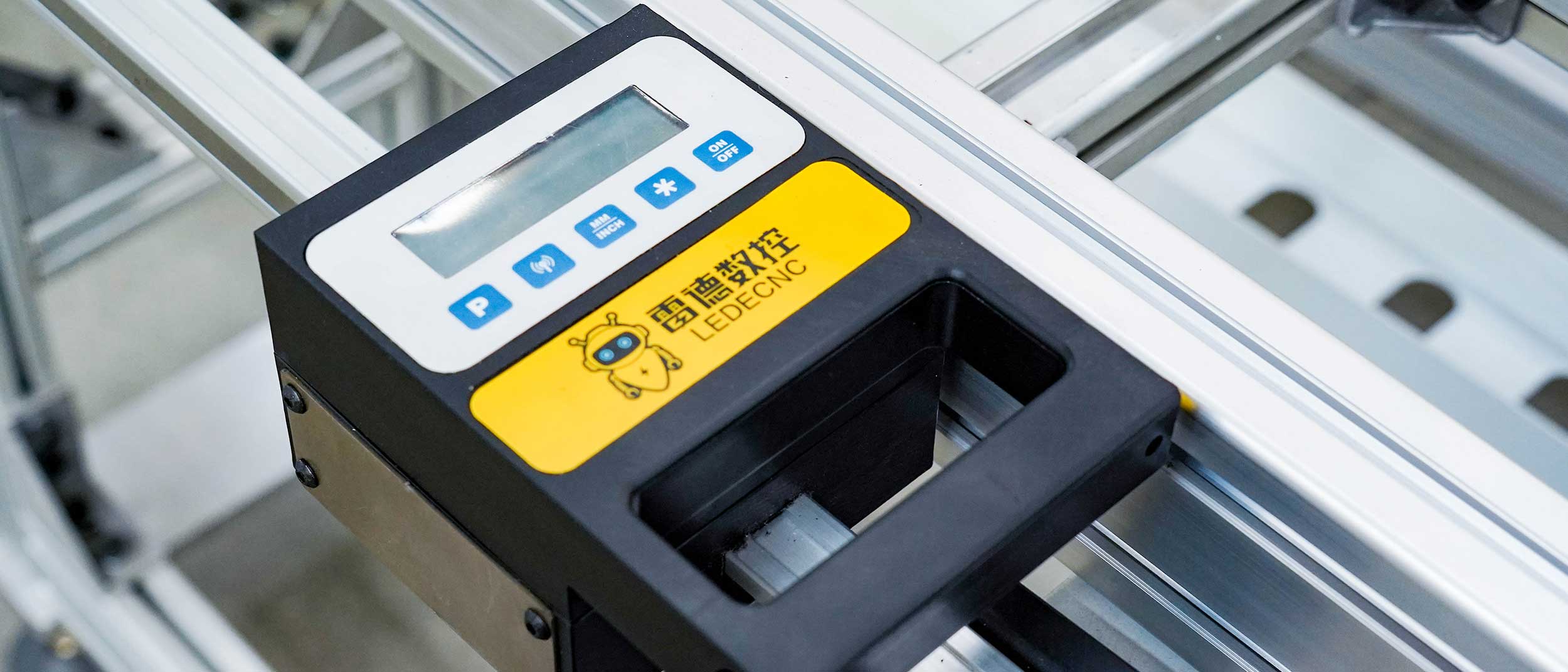

Wireless Measurement Organization

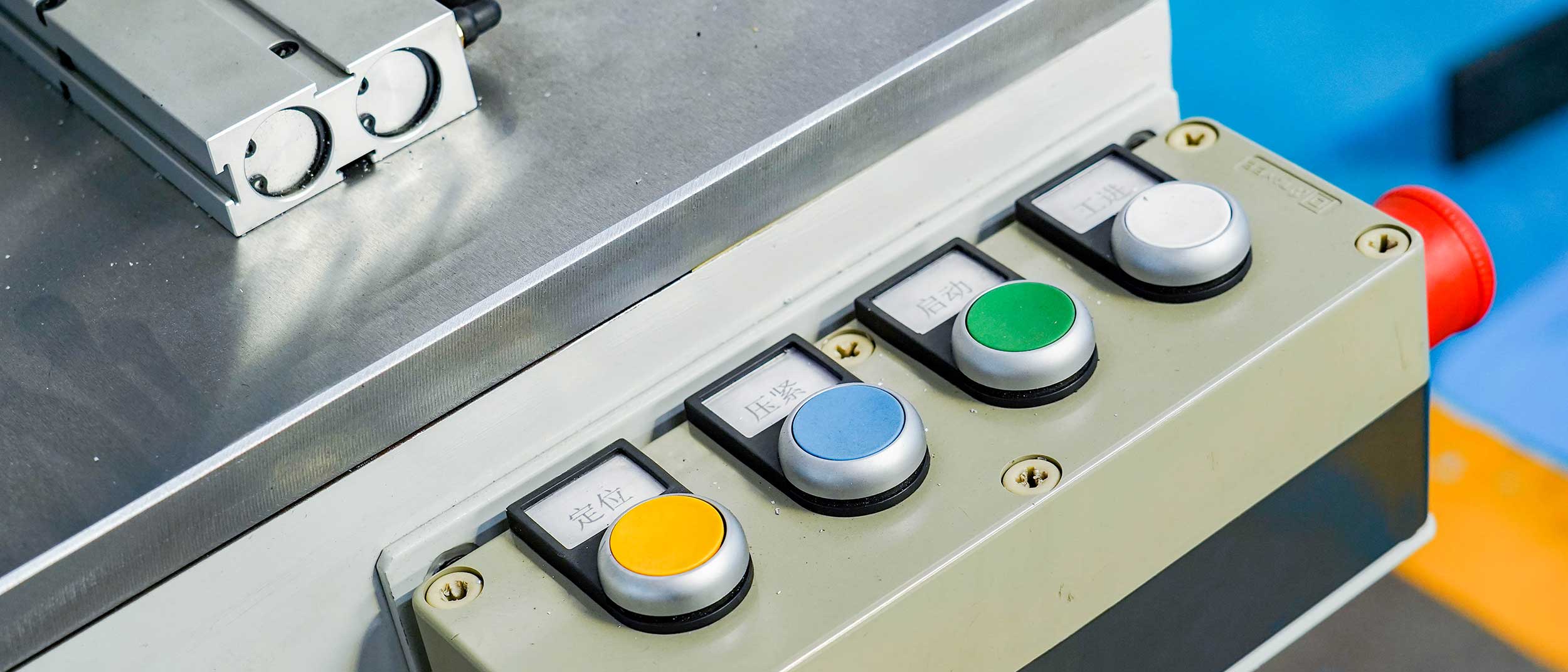

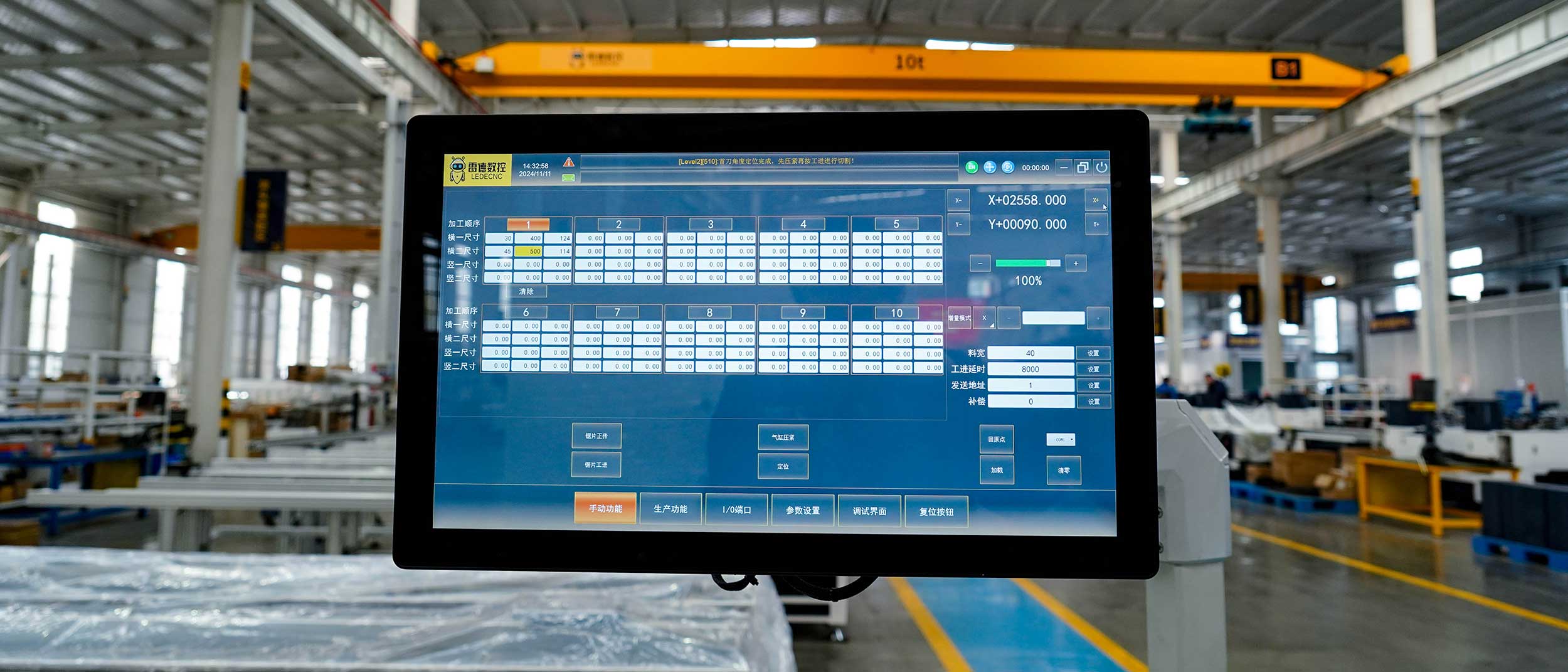

Operation Panel

Specifications:

Machining Specifications Parameter Value
Saw Blade Size   ø350×3.2×ø25 Z=100
Profile size Square tube: 70 × 70mm
Rectangular tube 80 × 70mm
Saw blade speed 2800 r/min
Motor Power 1.3KW
Bluetooth Measuring Tape  Parameters Parameter Value
Fixed-Length Range 0-3000mm
Measuring Range 125-2500mm
Positioning Speed Positioning Speed: 1 m/s
Measurement Accuracy 0.1 mm
General Parameters Parameter Value
Power supply 380V/50Hz
Power 3.0kw
Pressure 0.5~0.8MPa
Gas consumption 8L/min
Weight 710kg
Overall dimensions(L*W*H) 8200×950×1700mm (include track)

Layout and Dimensions:

Documentation

Turquoise 350R CNC Cutting Center With Wireless Measurement Of Depression Bar

Type 1:90°cut , Type 2:Arbitrary angle cut Range = +22.5°- 157.5°
