Aluminium Door and Window Machine

LD-QTK Buffer Station

Intelligent Buffer Station

Model: LD-QTK

Aluminium Door and Window Intelligent Buffer Station

Designed to stock complete sets of machined profiles for windows and doors.

Key Features:

  • Designed to stock complete sets of machined profiles for windows and doors.
  • Equipped with a stable, multi-tier racking system for horizontal storage of finished aluminum profiles.
  • Profile loading and allocation are performed via an escalator, ensuring precise positioning using servo motors.
  • Storage space accommodates up to 8 profiles with a depth of 900 mm.
  • The buffer station features 25 layers, offering storage for up to 50 window frame stiles or sashes (customizable).
  • Finished profile storage is organized by production lots, ensuring compatibility with complete window assemblies.
  • Supports remote online maintenance and commissioning services.

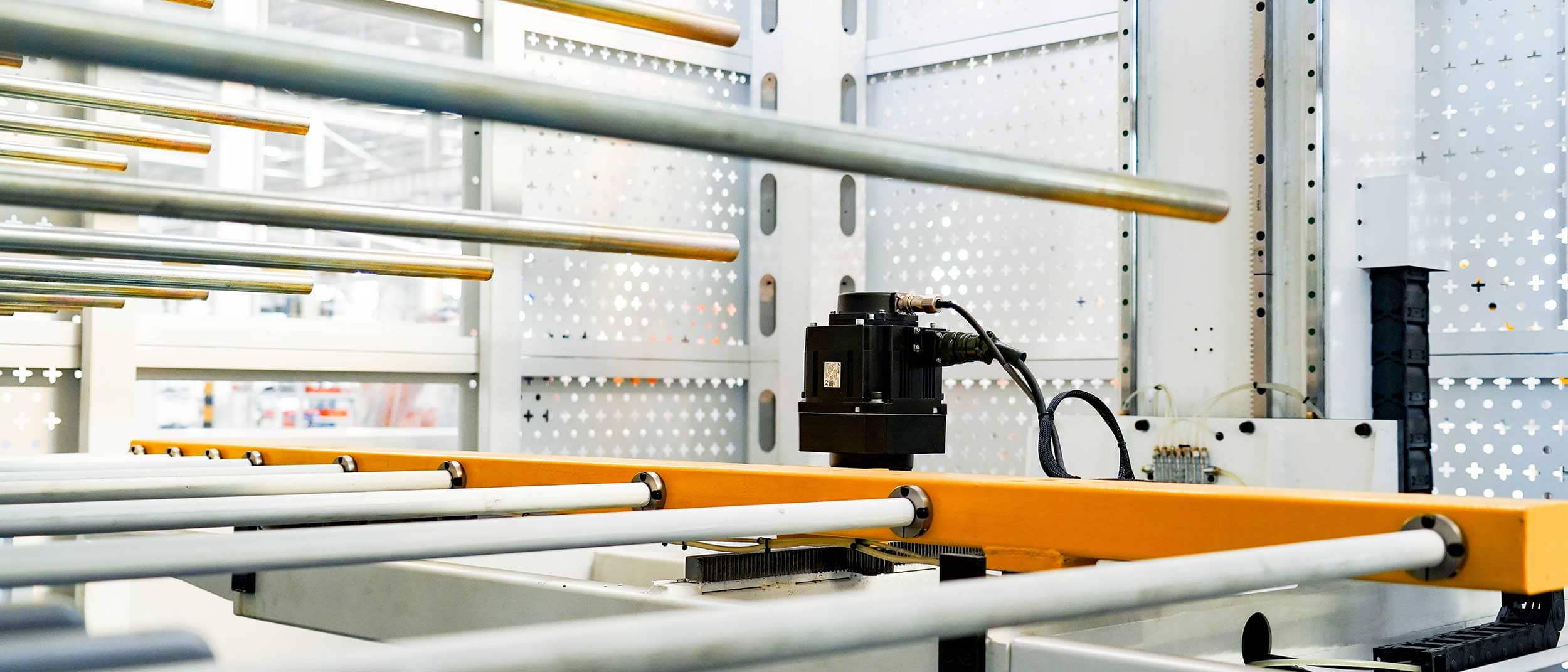

Multi-tier racking system

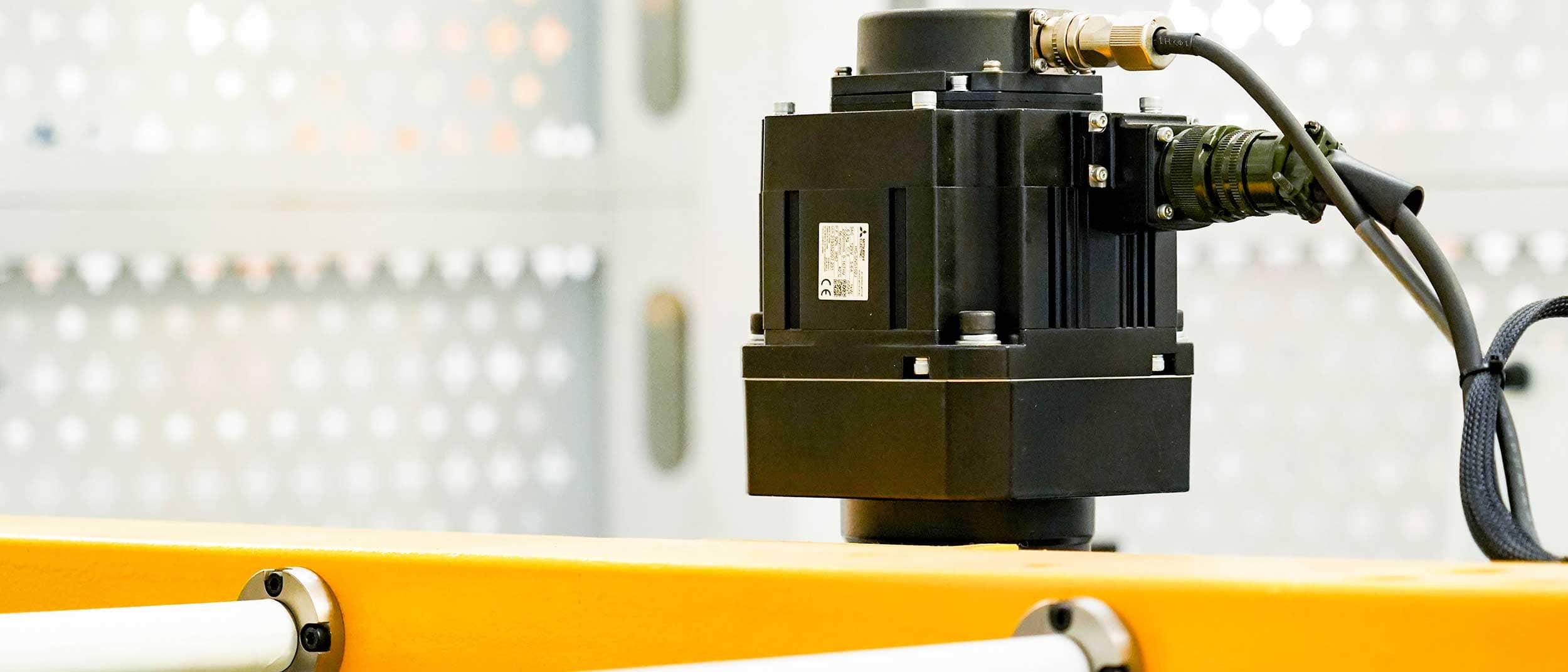

Servo-controlled system

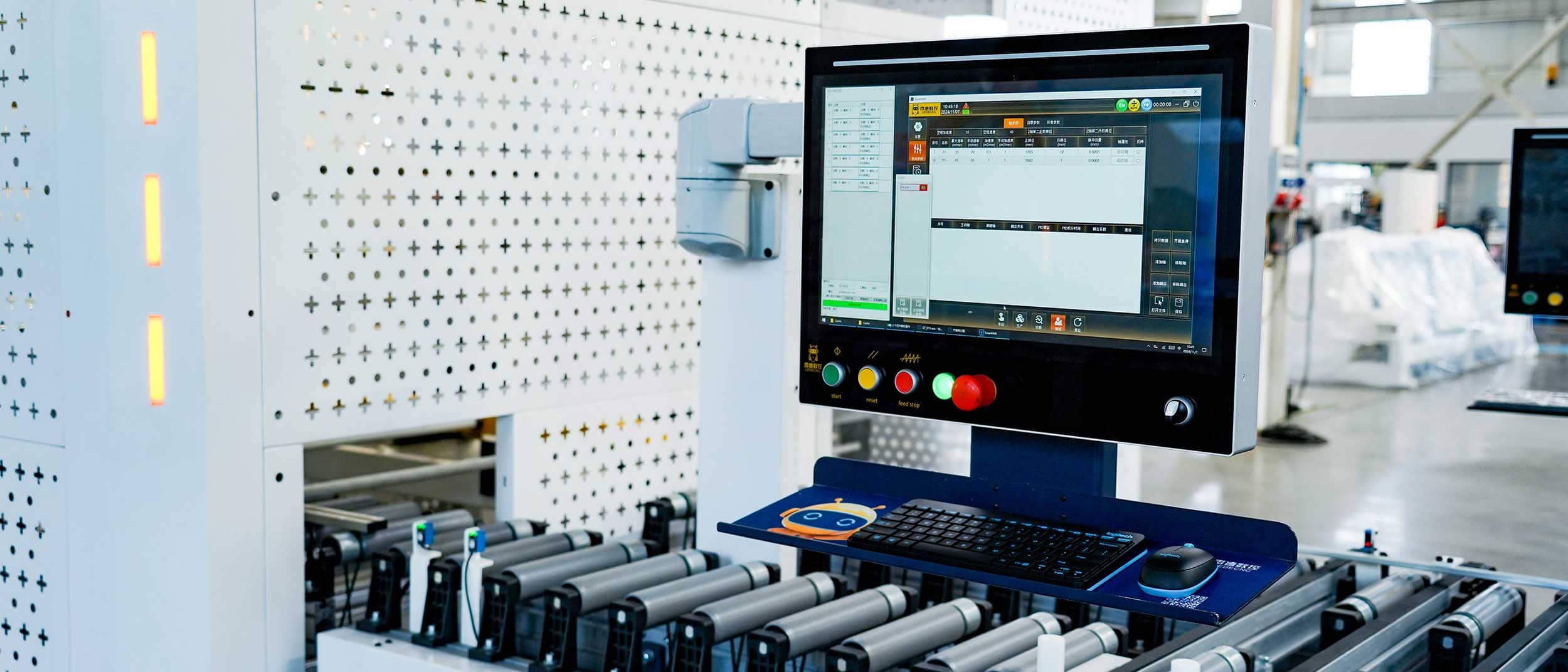

Operation Panel

Specifications:

Machining Specifications Parameter Value
Max. Profile Cross-Section    H= 150mm,L=300-6,000mm
Maximum Storage Width Accommodates 8 pieces when the width is 80mm and the depth is 900mm.
Axis 4
Number of Storage Layers Dual storage with 25 layers; accommodates 50 slots for profiles ≤ 3000mm.
General Parameters Parameter Value
Power supply 400V/50Hz
Power 10kw
Pressure 0.5~0.8Mpa
Gas consumption 50L/min
Weight 10,300kg
Overall dimensions 11,450×3,350×6,350mm (including workbenches on both sides)

Layout and Dimensions:

Documentation

LD-QTK-Aluminium Door and Window Intelligent Buffer Station

Designed to stock complete sets of machined profiles for windows and doors.

Download
