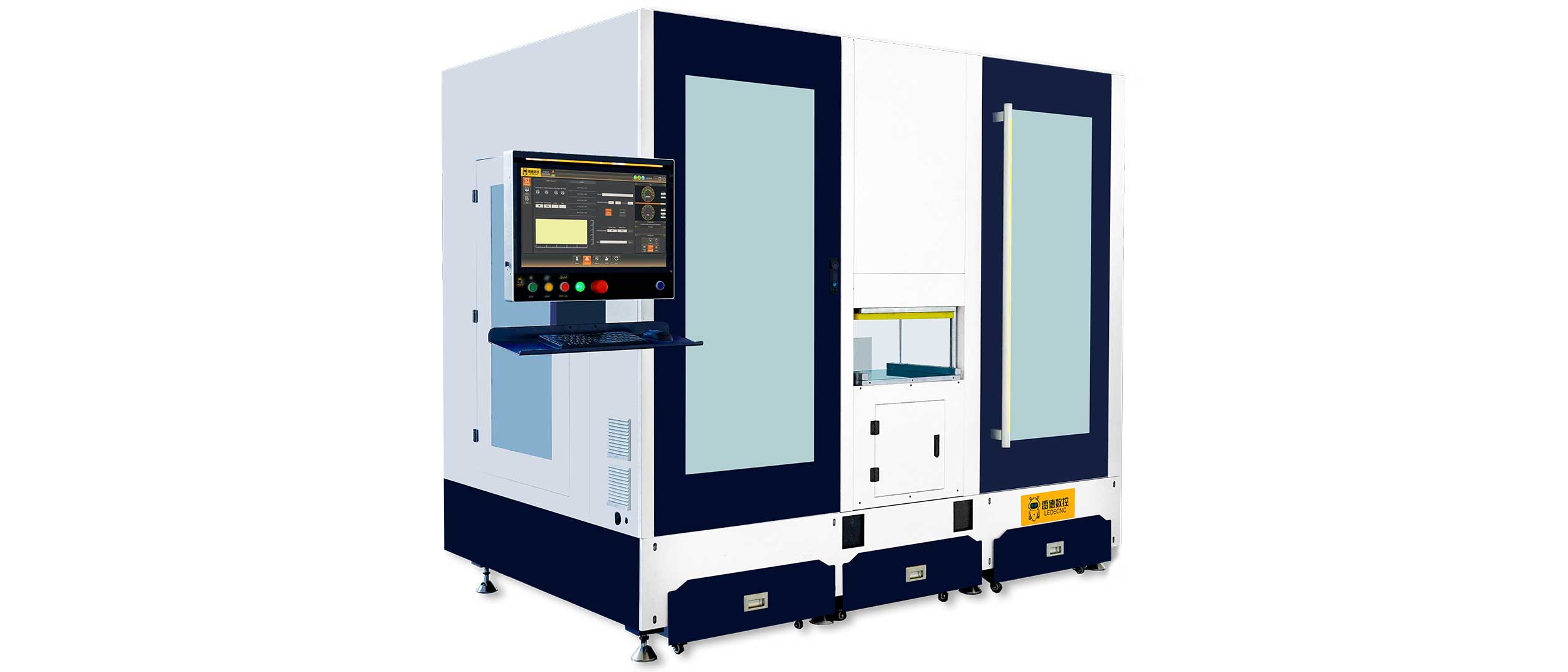

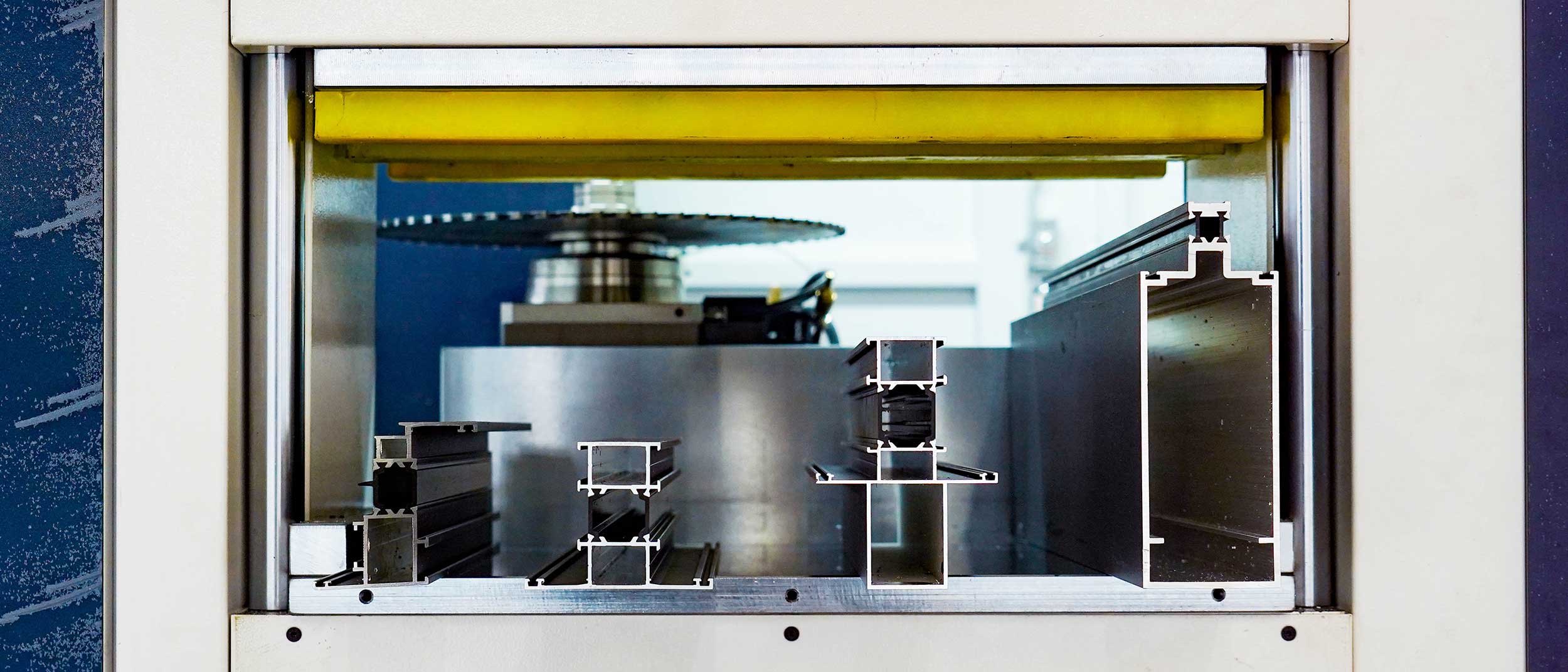

Jadeite 350S – Specialized for End Milling of Aluminum Profiles (Including Reinforced Mullions).
The Jadeite 350S is a high-precision CNC machine designed for end milling of aluminum profiles, offering high efficiency, automation, and a user-friendly operation.
| Machining Parameters | Parameter Value |
|---|---|
| X-axis stroke | 1,200 mm |
| Y-axis stroke | 100 mm |
| Z-axis stroke | 600 mm |
| Maximum milling depth | 70 mm |
| Minimum blade thickness | 3.2 mm (optional) |
| Maximum height of workpiece clamped on table | 200 mm |
| Maximum milling depth | 70 mm |
| Cutting surface roughness | Ra12.5 µm |

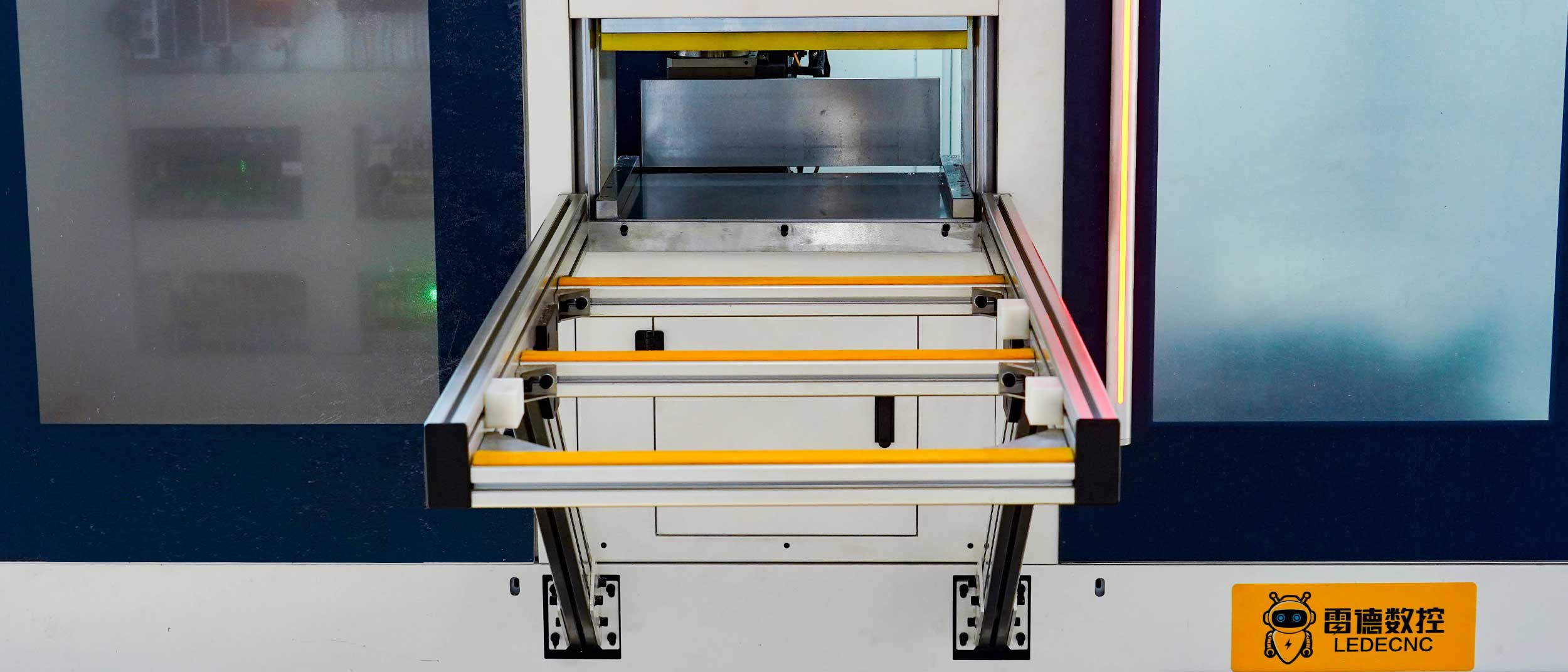

| Size of table feed opening (W×D) | 480×420 mm |
| Technical Parameters | Parameter Value |
|---|---|

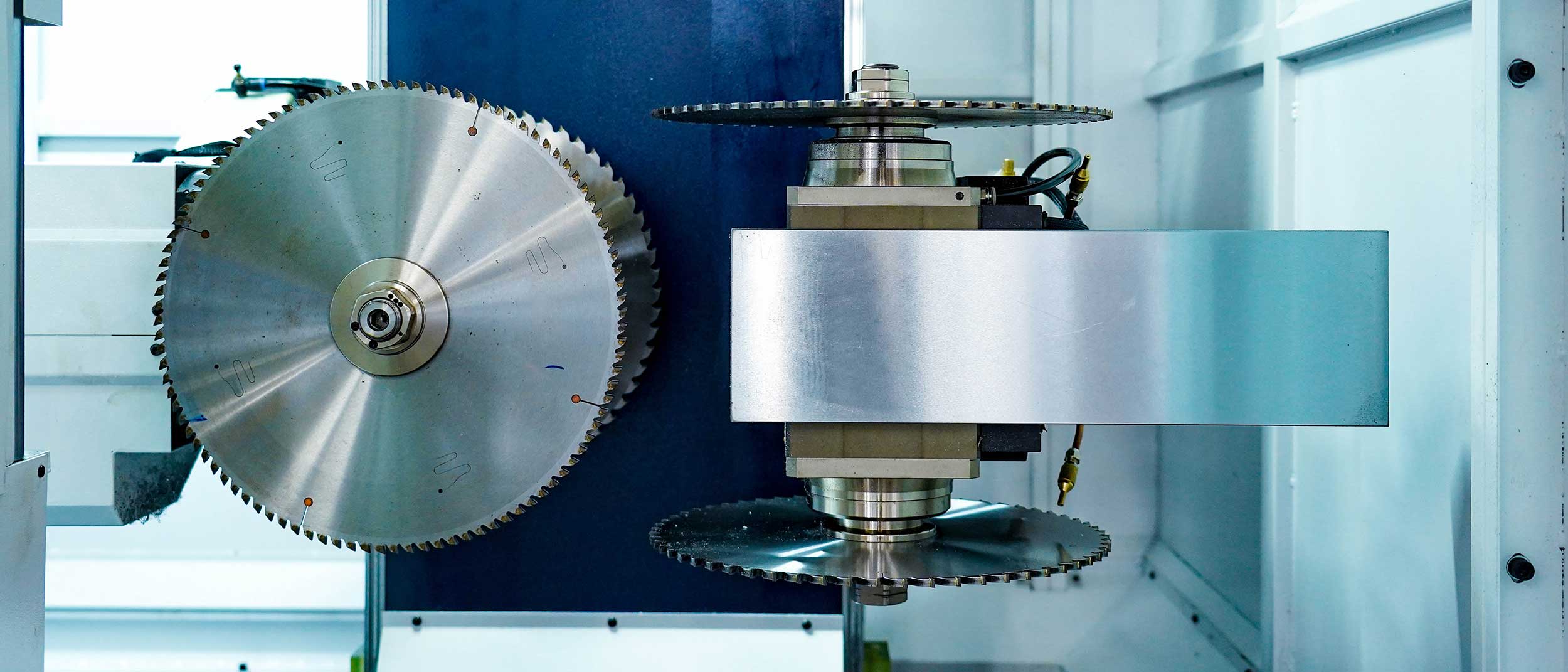

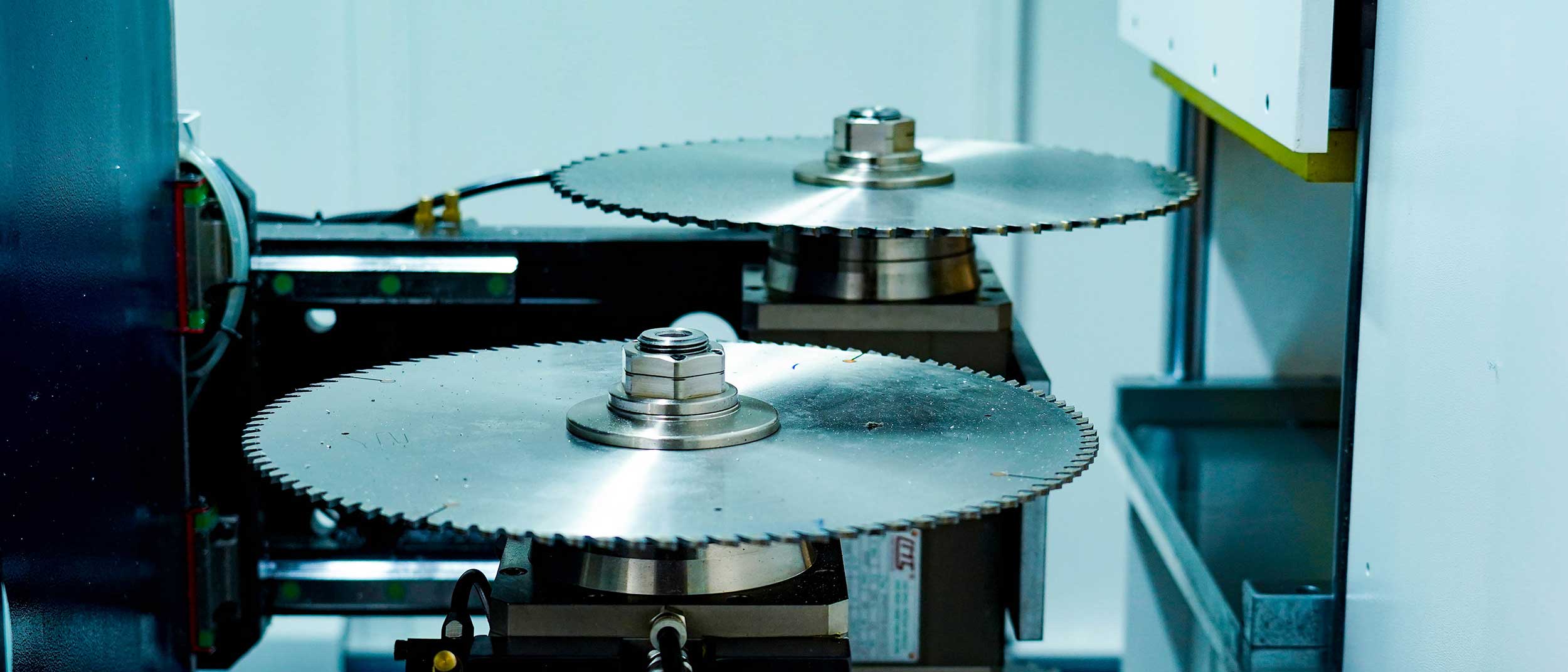

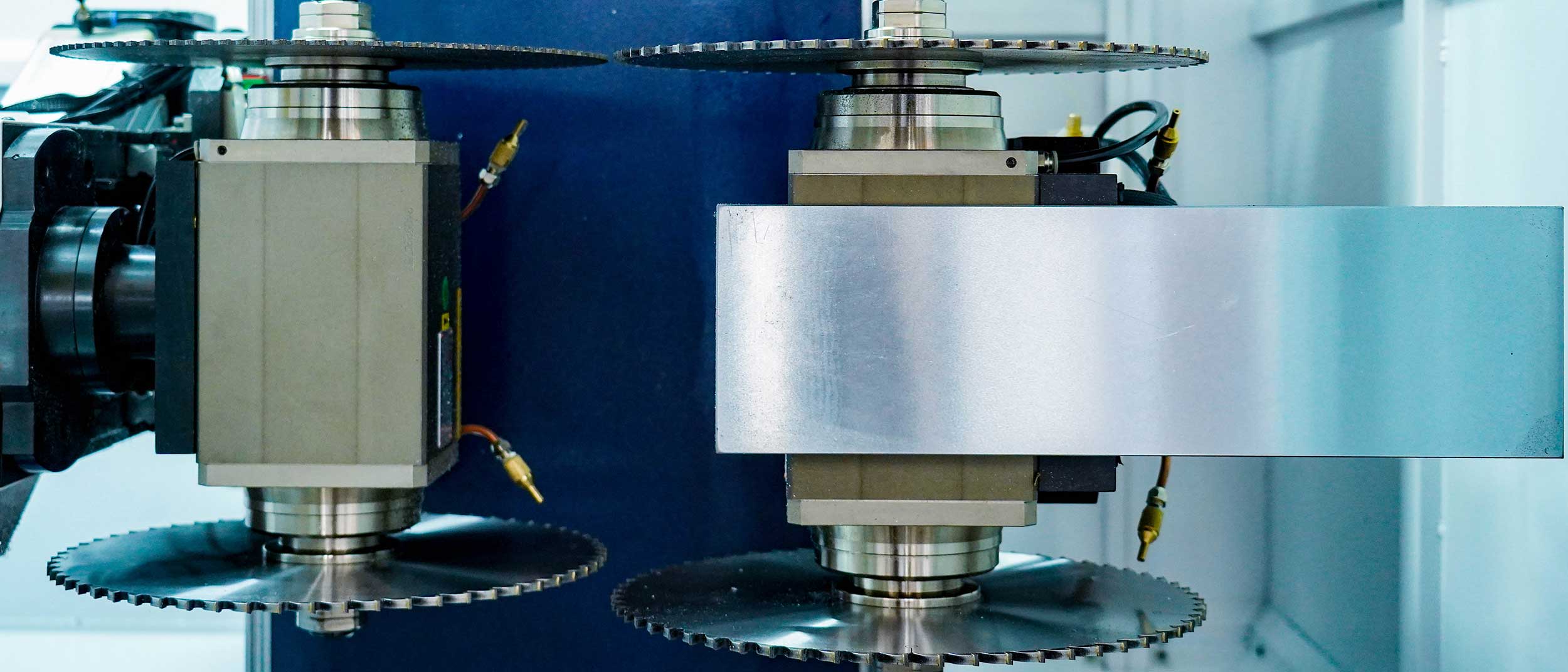

| Diameter of double-head spindle shaft | φ30 mm |
| Max cutting tool diameter | 350 mm |
| Number of tools | 4 sets |
| Cutting surface roughness | Ra12.5 µm |
| Size of table feed opening (W×D) | 480×420 mm |
| General Parameters | Parameter Value |
|---|---|
| Machine size (L×W×H) | 2,500×1,700×2,200 mm |
| Machine weight | 2,700 KG |
| Air pressure | 0.5-0.8 MPa |

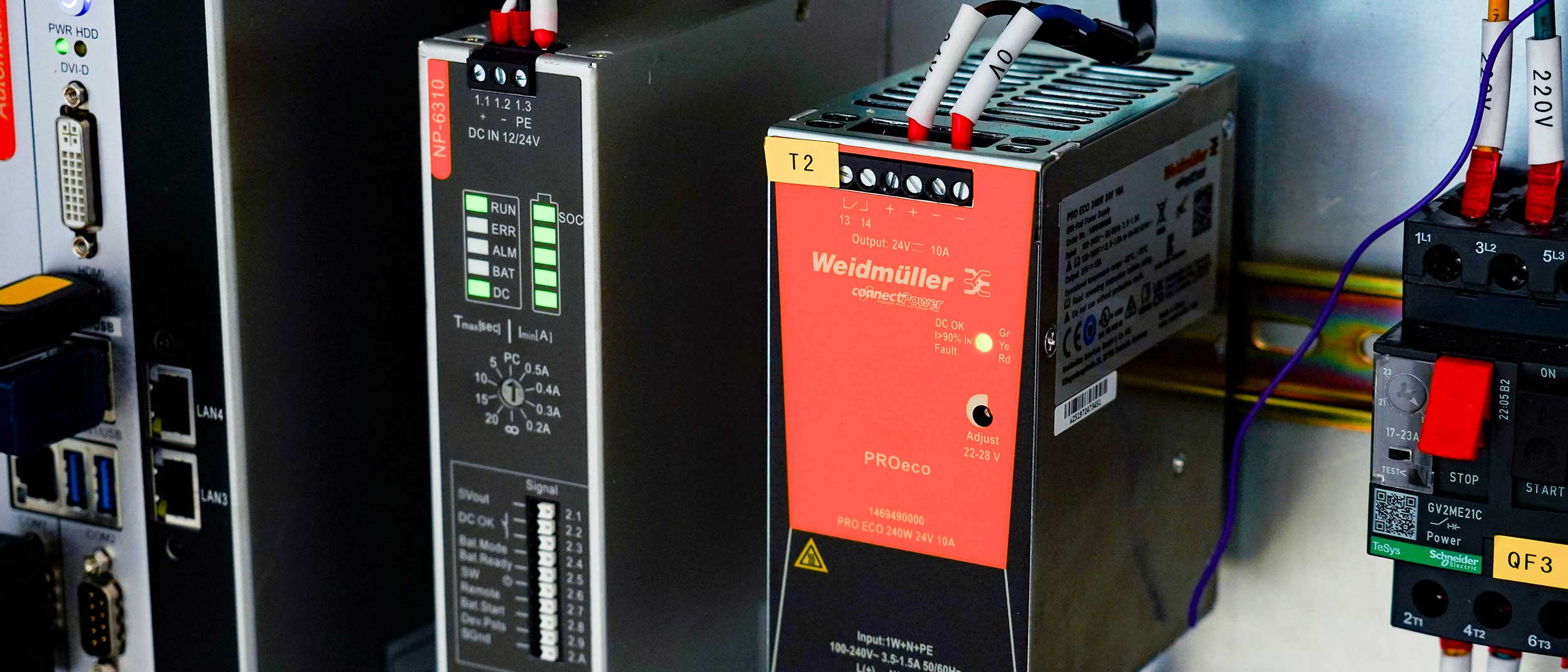

| Power supply | 400V 50HZ 12KW |
| Air consumption per minute approx | 250 L with spraying |
| Power output per motor | 3 kw |
| Motor speed | 3,000 r/min |
The Jadeite 350S is a high-precision CNC machine designed for end milling of aluminum profiles, offering high efficiency, automation, and a user-friendly operation.
The S200 series ensures detailed material flow organization, strict quality control, and reduced labor and management costs. Each profile is labeled with a sticker containing specifications and a QR code for traceability.
Designed to perform drilling, milling, sawing, and end milling operations for aluminum profiles, the S100 series streamlines production, boosts capacity, and minimizes labor costs through full automation.
Designed for Milling, Drilling, Cutting, and Laser Machining operations on the heads and ends of aluminum and light alloy profiles.
This machine offers advanced automation, precision, and user-friendly operation, featuring a rotatable worktable, automatic tool changing, and enhanced safety measures for high-volume production.
