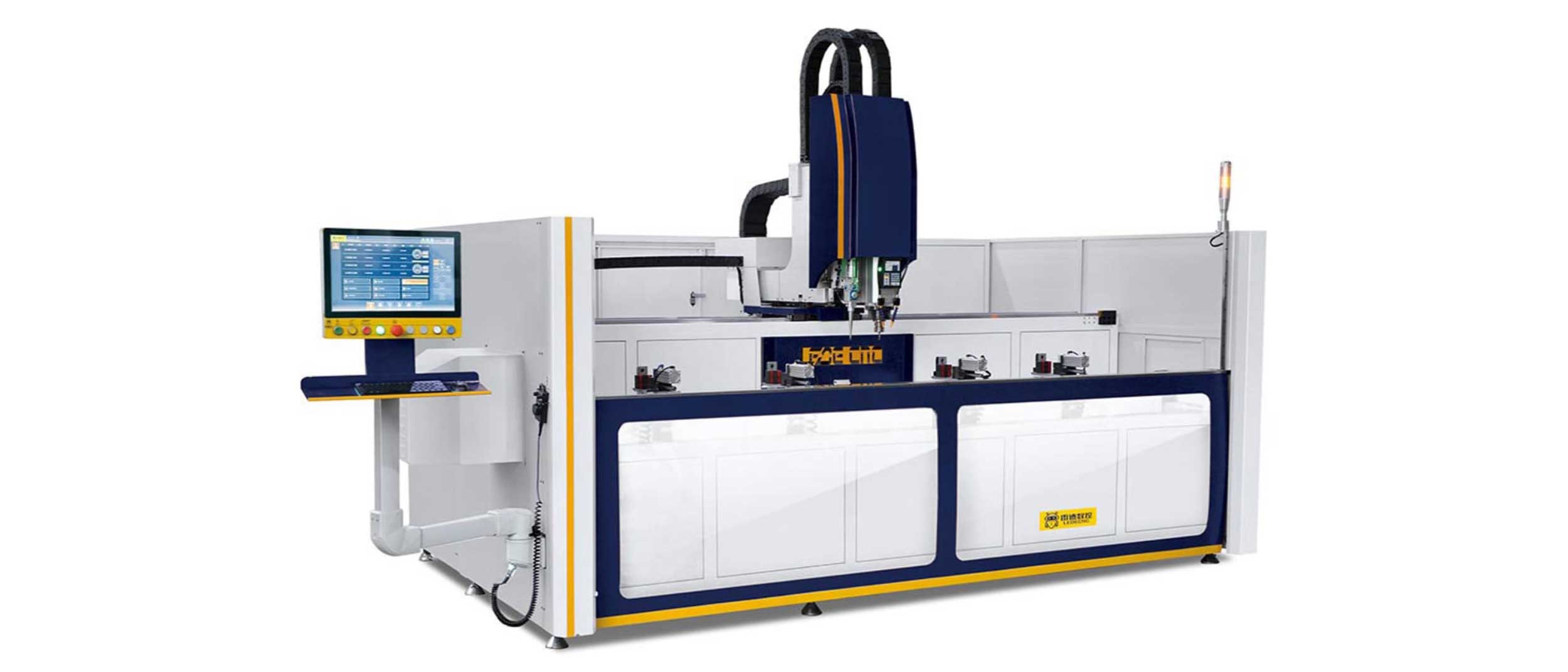

Laser-Equipped 3+1 Machining Center

Model: Garnet T140A

High-Performance Laser Equipped Milling and Drilling Machine – Designed for Aluminum Profiles.

This machine is designed for high-precision milling and drilling of aluminum profiles, combining laser marking with full automation and easy operation.

Key Features:

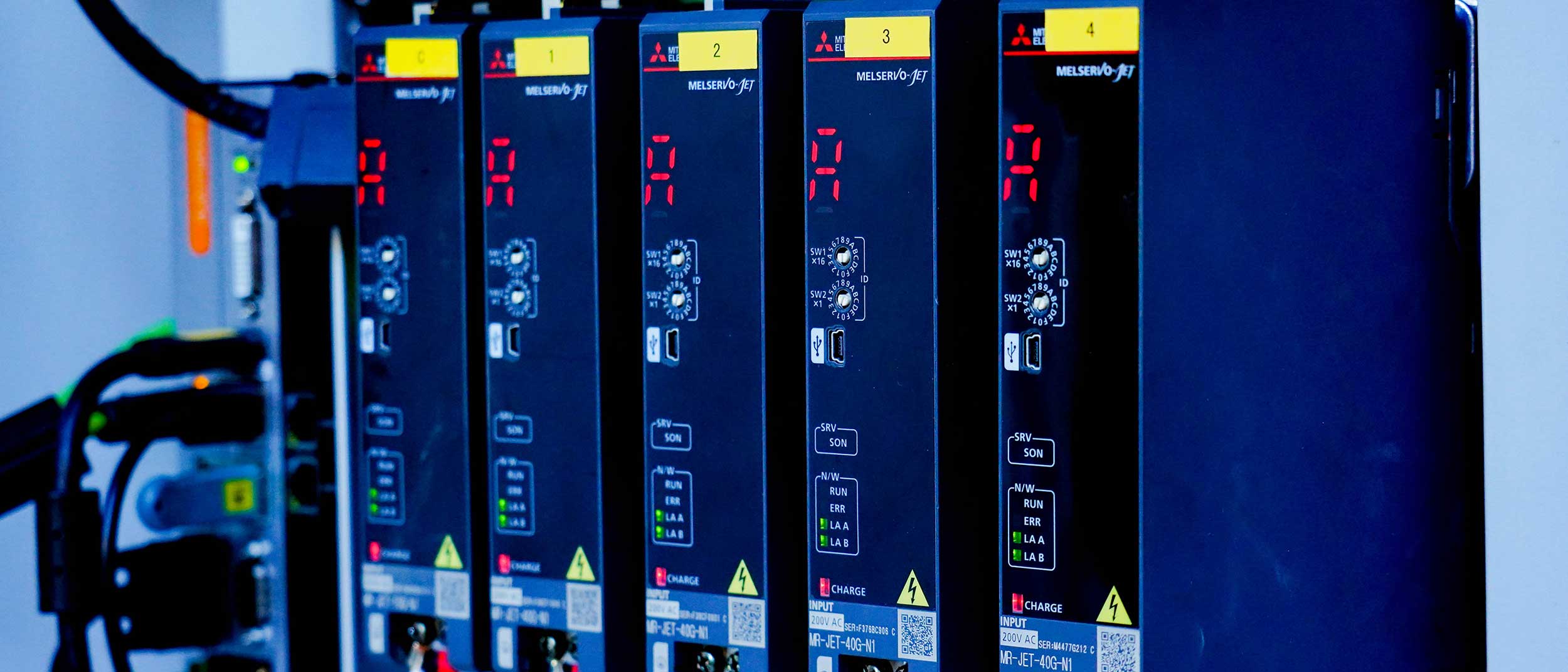

Rotatable Worktable: A servo motor drives the worktable for automatic rotation, completing three-sided milling in one clamping.

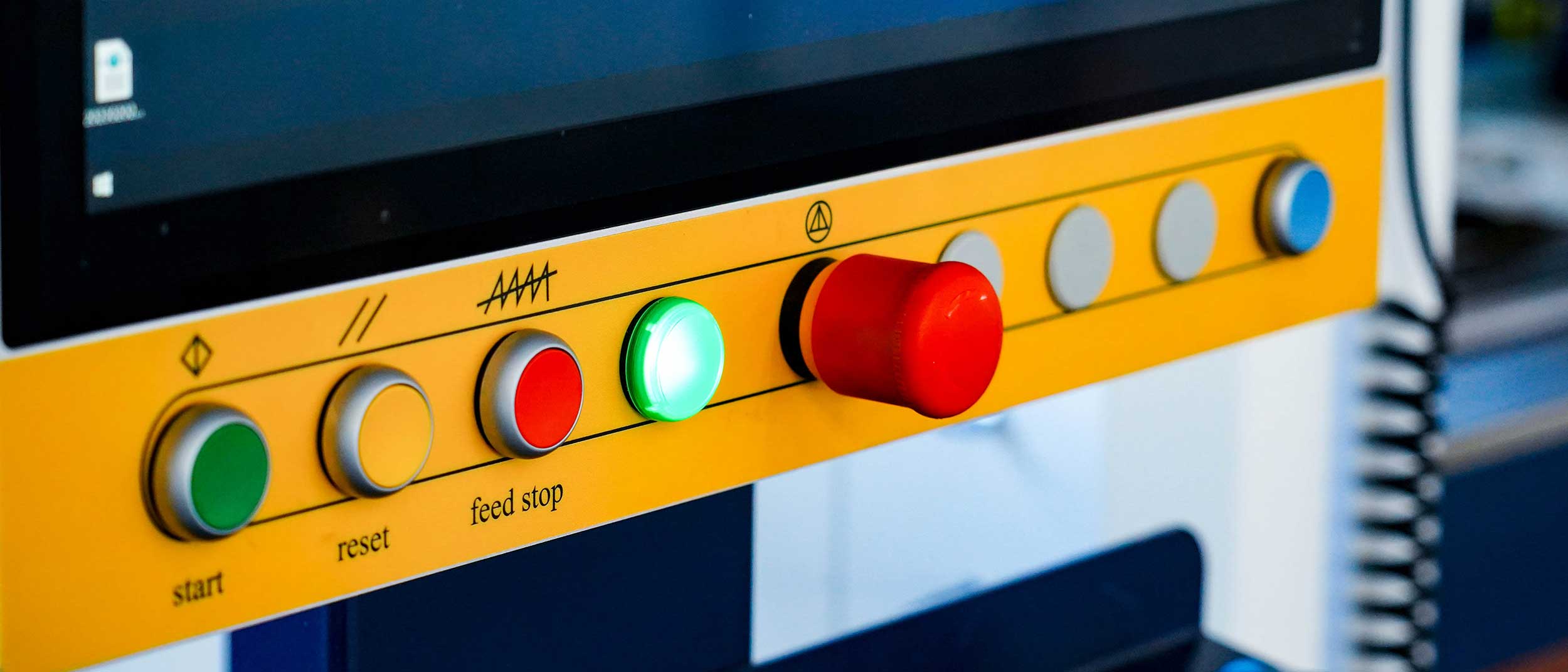

User-Friendly Operation: No skilled workers required. Features software connectivity and automatic data loading via barcode scanning. Includes a standard graphics library for direct import of designs to generate machining programs.
High Efficiency: Equipped with a 9.5KW Italian electric spindle, delivering high torque. The milling efficiency is twice that of a standard drilling and milling machine and eight times that of a conventional copy milling machine. Equipped with a 1.5KW laser cutting head for high cutting efficiency and excellent surface finish.
Simplified Process: Features an automatic tool changer with a standard 6-position tool magazine.
Unique Chip Removal Design: Equipped with a bottom chip tray for a cleaner workspace.

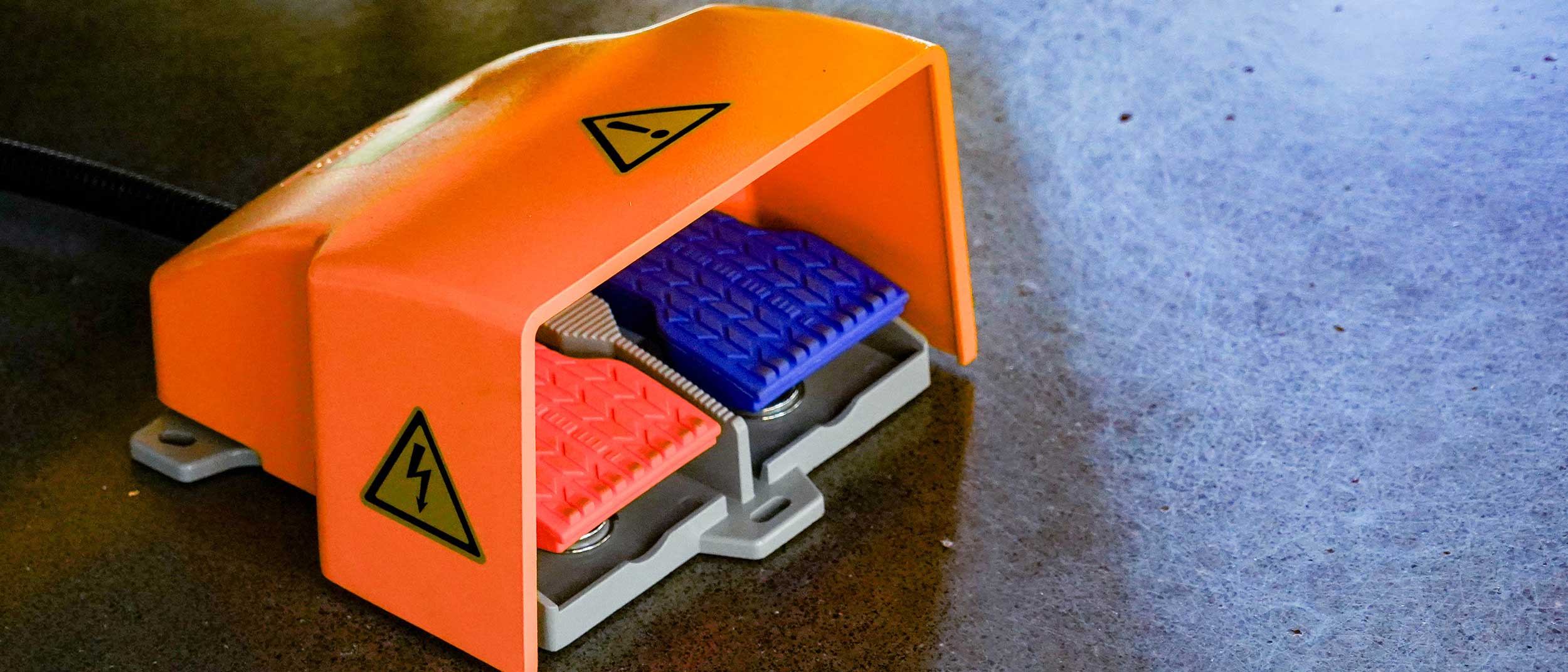

Enhanced Safety: Enclosed protective cover with automatic lifting, ensuring high safety standards.
Double-Layer Shock-Absorbing Clamps: Facilitates machining of irregular profiles, reducing vibration and noise. Includes four clamps.
Automatic Lubrication: Comes standard with a guide rail and screw automatic lubrication system, extending the machine's service life.
Tool Management System: Includes a tool life management system with automatic replacement reminders.
Maintenance Alerts: Standard automatic maintenance reminders help identify potential issues early, improving equipment utilization.
Production and Equipment Monitoring: Features capacity statistics and real-time monitoring of equipment status and time usage. Ensures controllable delivery schedules, reduced inventory, and improved cash flow utilization.
Remote Service Capability: Supports remote maintenance, servicing, and training, saving service time, minimizing downtime, and reducing dependence on skilled workers.
Worktable Automation: A servo motor drives the worktable for automatic rotation, completing three-sided milling in one clamping.

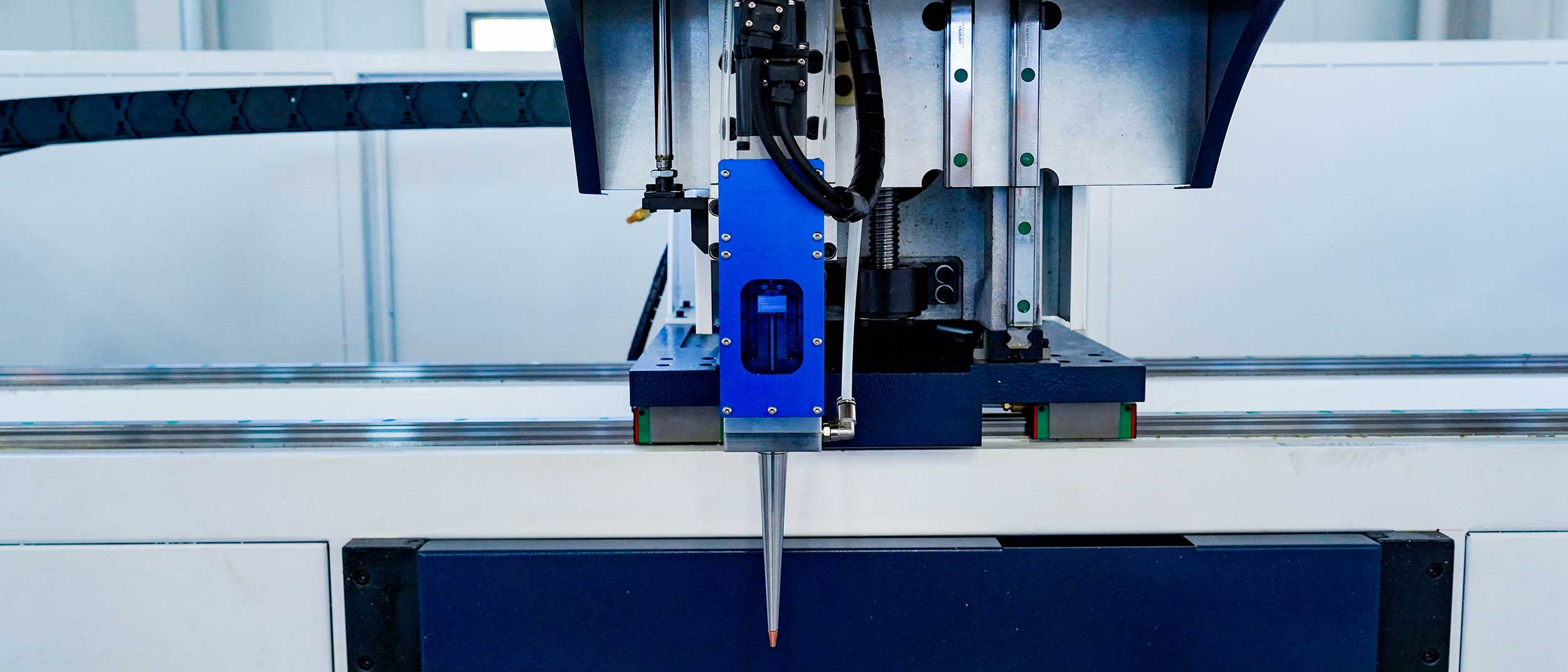

Close-up for spindle and Laser unit

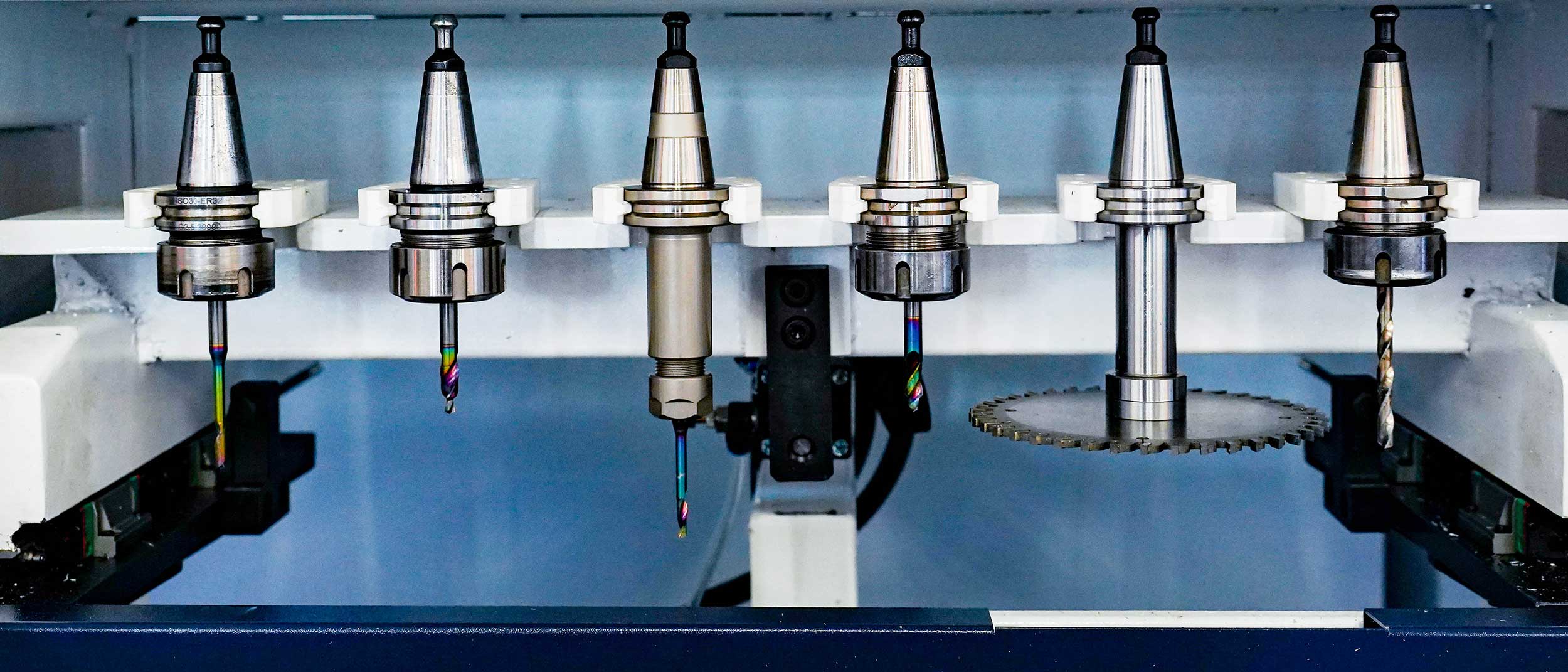

Tool storage magazine

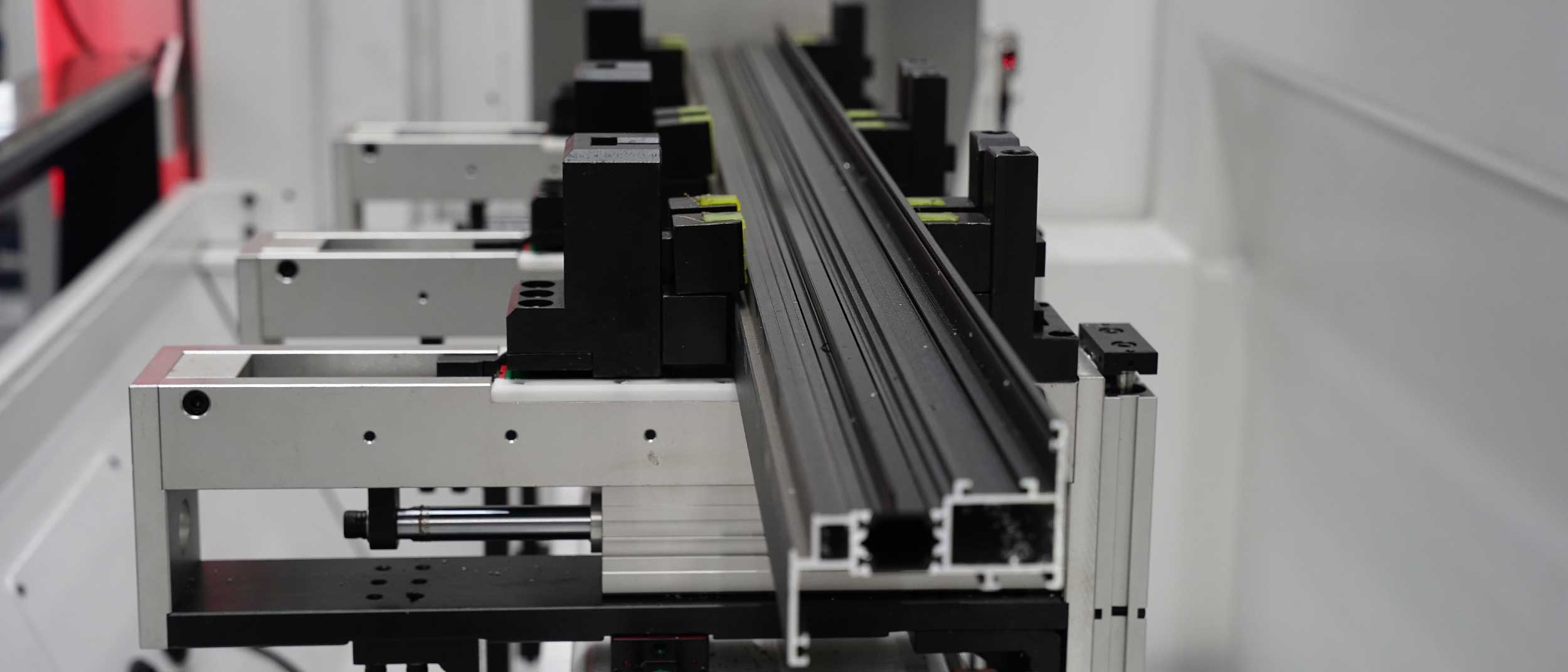

Automatic positioning for servo-driven clamps

Specifications:

Machining Parameters	Parameter Value
Max. processing length	3,000 mm
Processing profile width	140 mm
Processing profile height	140 mm
Machining direction	3 (top, rear, front)

Machining Precision	Parameter Value
Positioning Accuracy	± 0.1 mm
Cutting surface roughness	Ra12.5μm
Repeat positioning accuracy	± 0.02m

Technical Parameters	Parameter Value
Tool Magazine	6 (3 standard, 3 Optional )
Clamp	4
Laser	1.5KW
Spindle	9.5 KW
X-Axis Travel speed	0~60 m/min
Y-Axis Travel speed	0~30 m/min
Z-Axis Travel speed	0~15 m/min
X-axis traverse path	3,000 mm
Y-axis traverse path	400 mm
Z-axis traverse path	300 mm

General Parameters	Parameter Value
Power supply	380V/50Hz
Power	13KW
Overall dimensions	4,300×2,350×2,600mm
Machine weight	2,300KG
Air pressure	0.5~0.8Mpa
Air consumption	55L/min

Documentation

Garnet T140A Laser-Equipped 3+1 Machining Center

This machine is designed for milling, drilling, and tapping aluminum profiles, offering high precision, efficiency, and automation with laser cutting and user-friendly operation.
