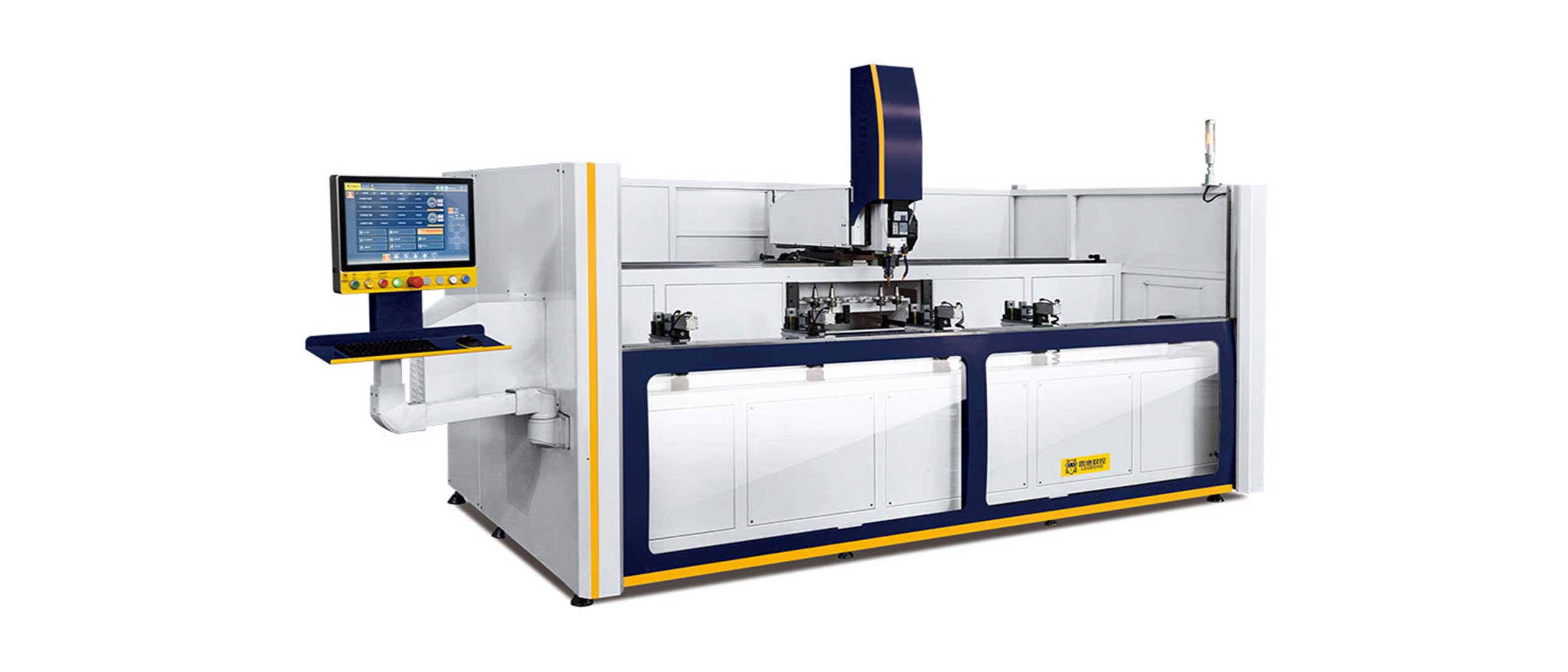

Intelligent 3+1 Axis Machining Center

Model: Emerald T140A

High-Efficiency Milling Machine – Specialized for Aluminum Profiles Machining.

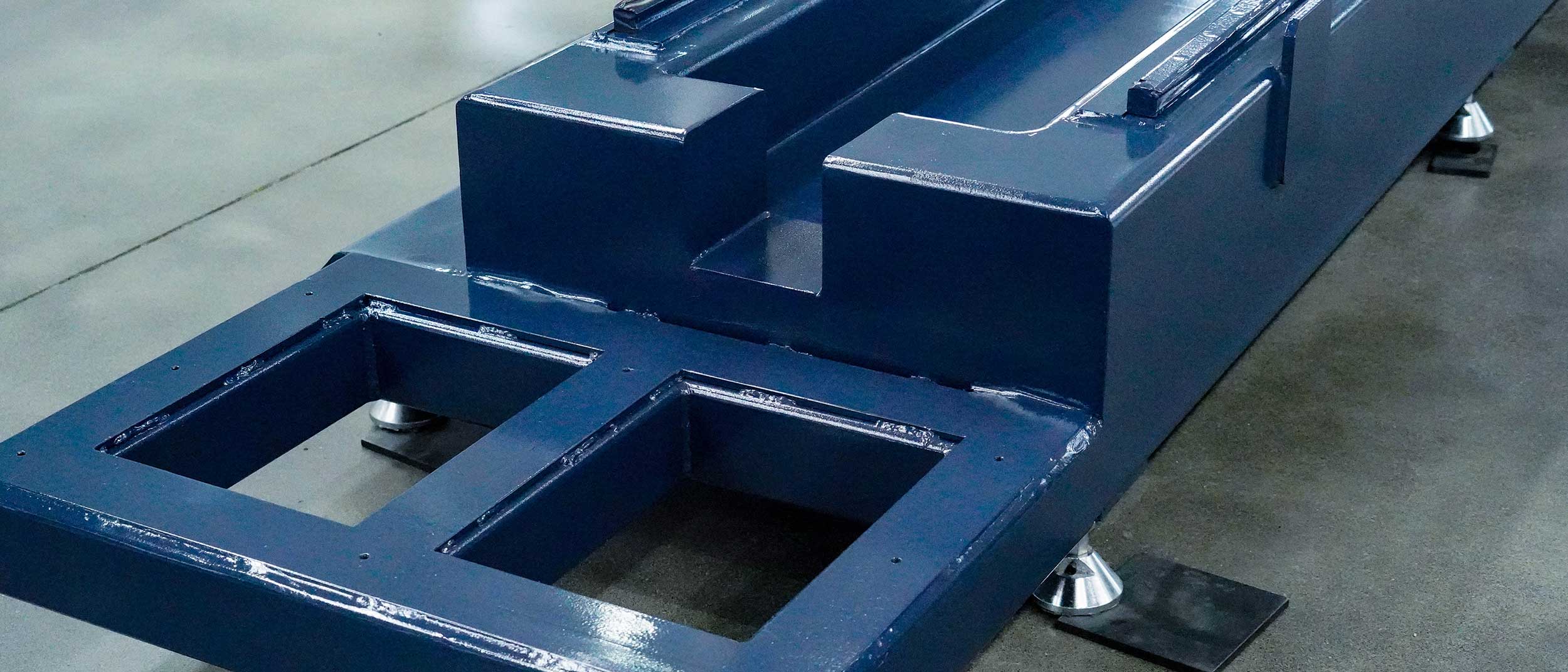

This machine is specially designed for high-precision and fast processing of aluminum profiles. The worktable is driven by a servo motor, and the italian spindle can rotate ±90° to perform milling and drilling operations on aluminum profiles.

Key Features:

Rotatable Worktable: A servo motor drives the worktable for automatic rotation, completing three-sided milling in one clamping.

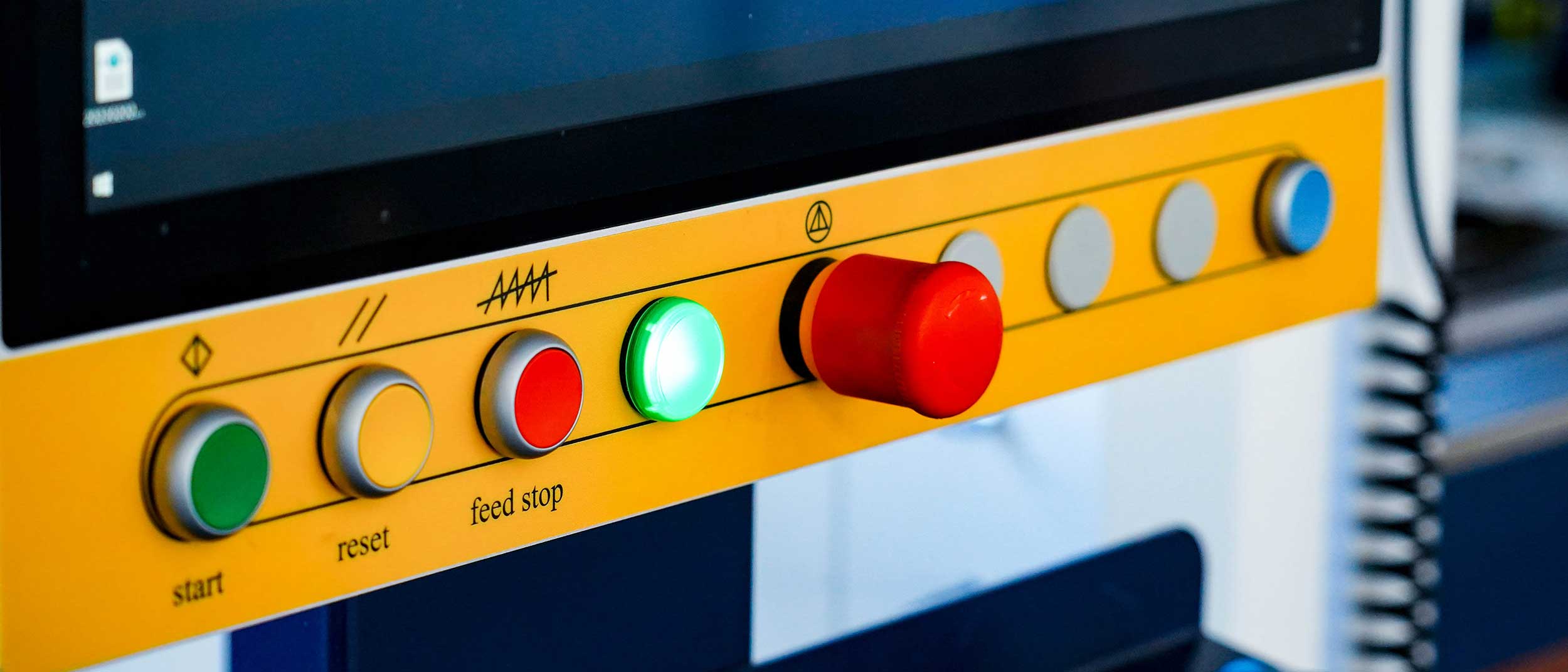

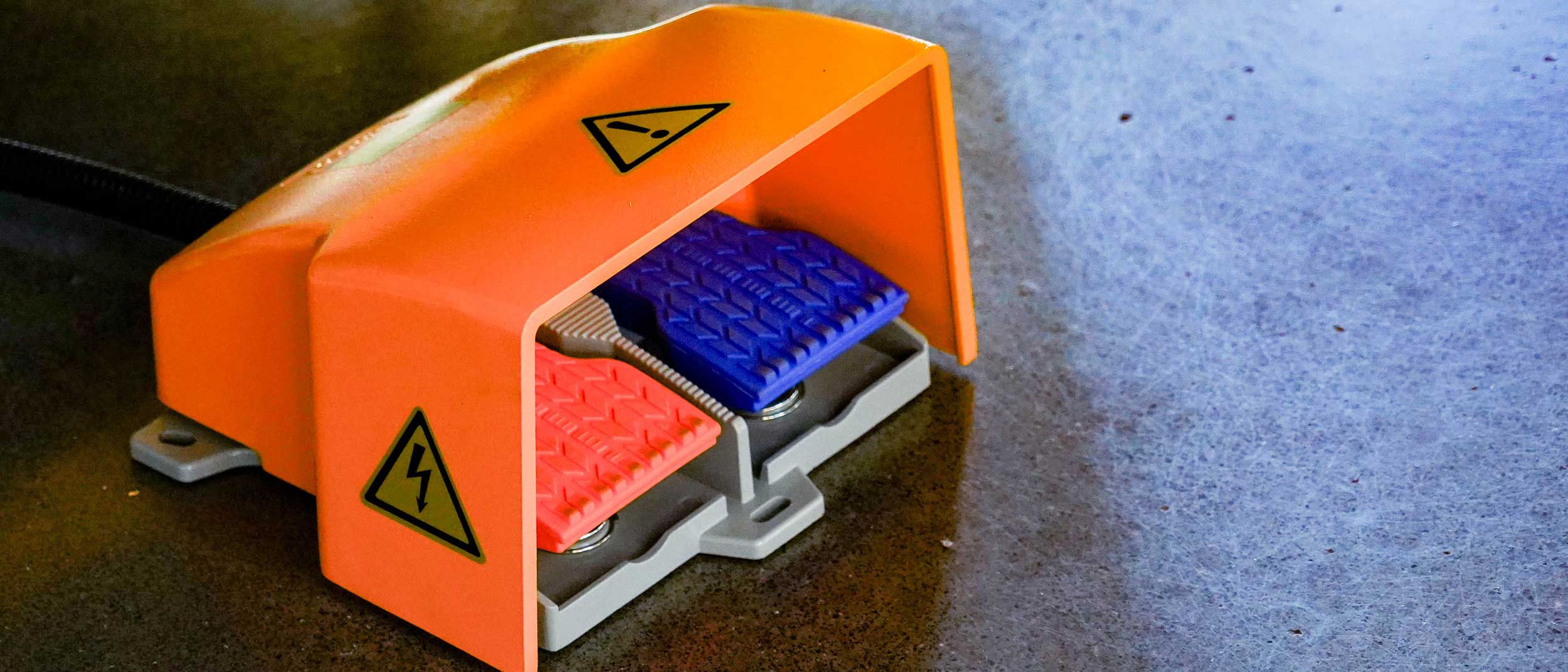

User-Friendly Operation: No skilled workers required. Features software connectivity and automatic data loading via barcode scanning. Includes a standard graphics library for direct import of designs to generate machining programs.

High Efficiency: Equipped with a 9.5KW Italian electric spindle, delivering high torque. The milling efficiency is twice that of a standard drilling and milling machine and eight times that of a conventional copy milling machine.
Simplified Process: Features an automatic tool changer with a standard 6-position tool magazine.
Unique Chip Removal Design: Equipped with a bottom chip tray for a cleaner workspace.
Enhanced Safety: Enclosed protective cover with automatic lifting, ensuring high safety standards

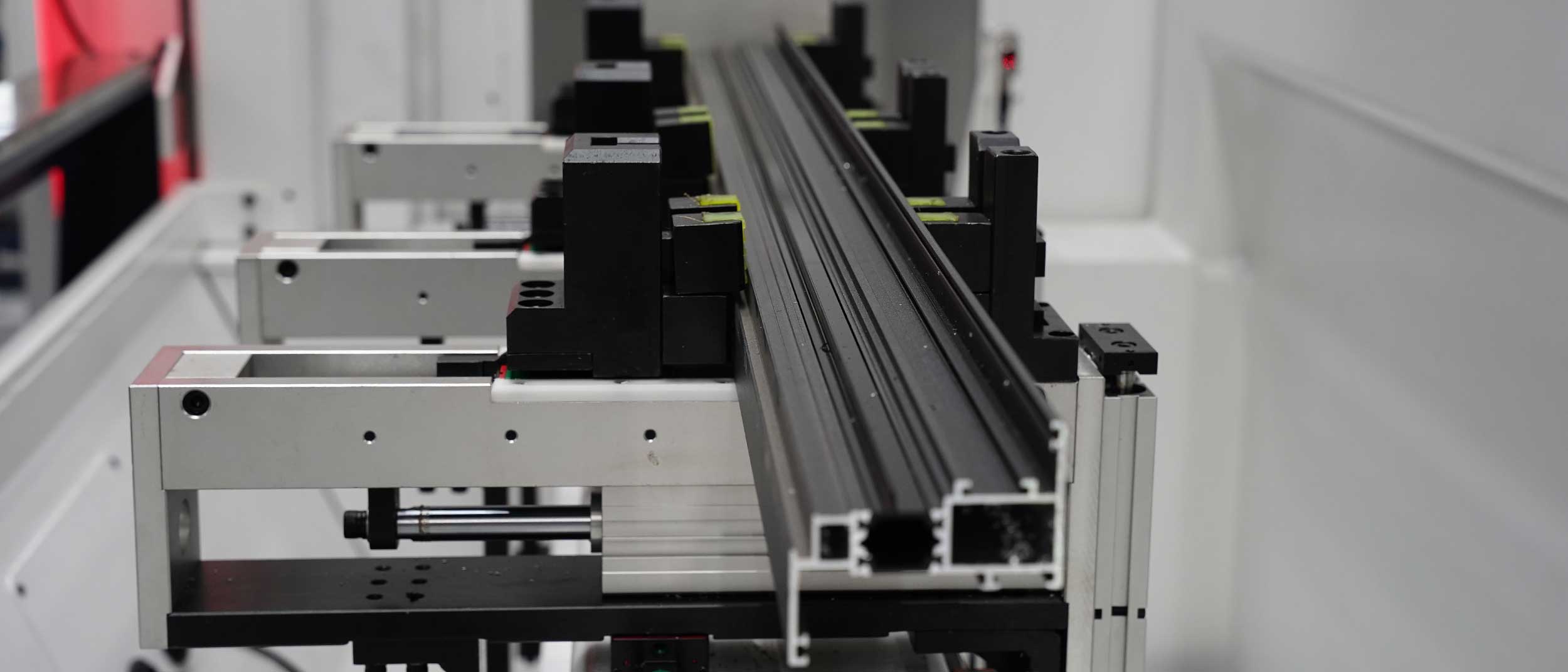

Double-Layer Shock-Absorbing Clamps: Facilitates machining of irregular profiles, reducing vibration and noise. Includes four clamps.

Automatic Lubrication: Comes standard with a guide rail and screw automatic lubrication system, extending the machine's service life.
Tool Management System: Includes a tool life management system with automatic replacement reminders.
Maintenance Alerts: Standard automatic maintenance reminders help identify potential issues early, improving equipment utilization.
Production and Equipment Monitoring: Features capacity statistics and real-time monitoring of equipment status and time usage. Ensures controllable delivery schedules, reduced inventory, and improved cash flow utilization.
Remote Service Capability: Supports remote maintenance, servicing, and training, saving service time, minimizing downtime, and reducing dependence on skilled workers.
Worktable Automation: A servo motor drives the worktable for automatic rotation, completing three-sided milling in one clamping.

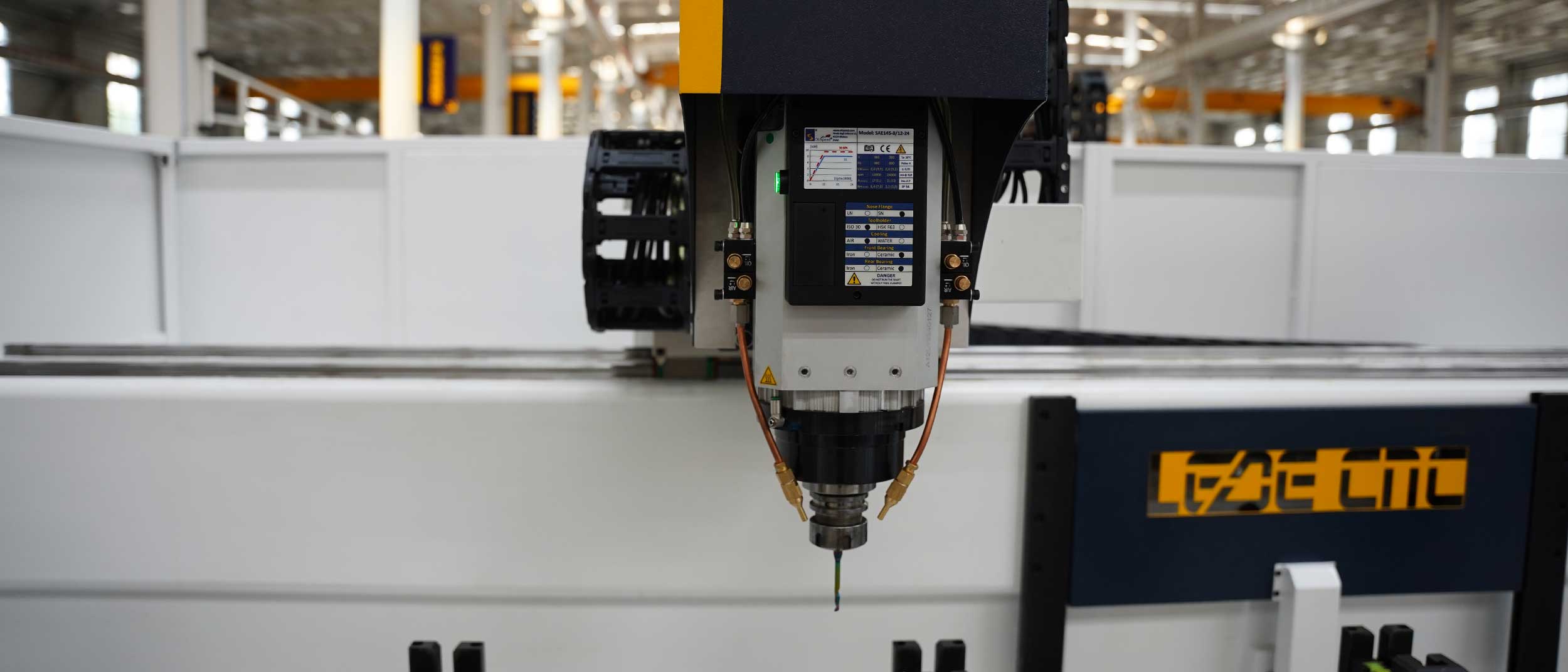

Spindle

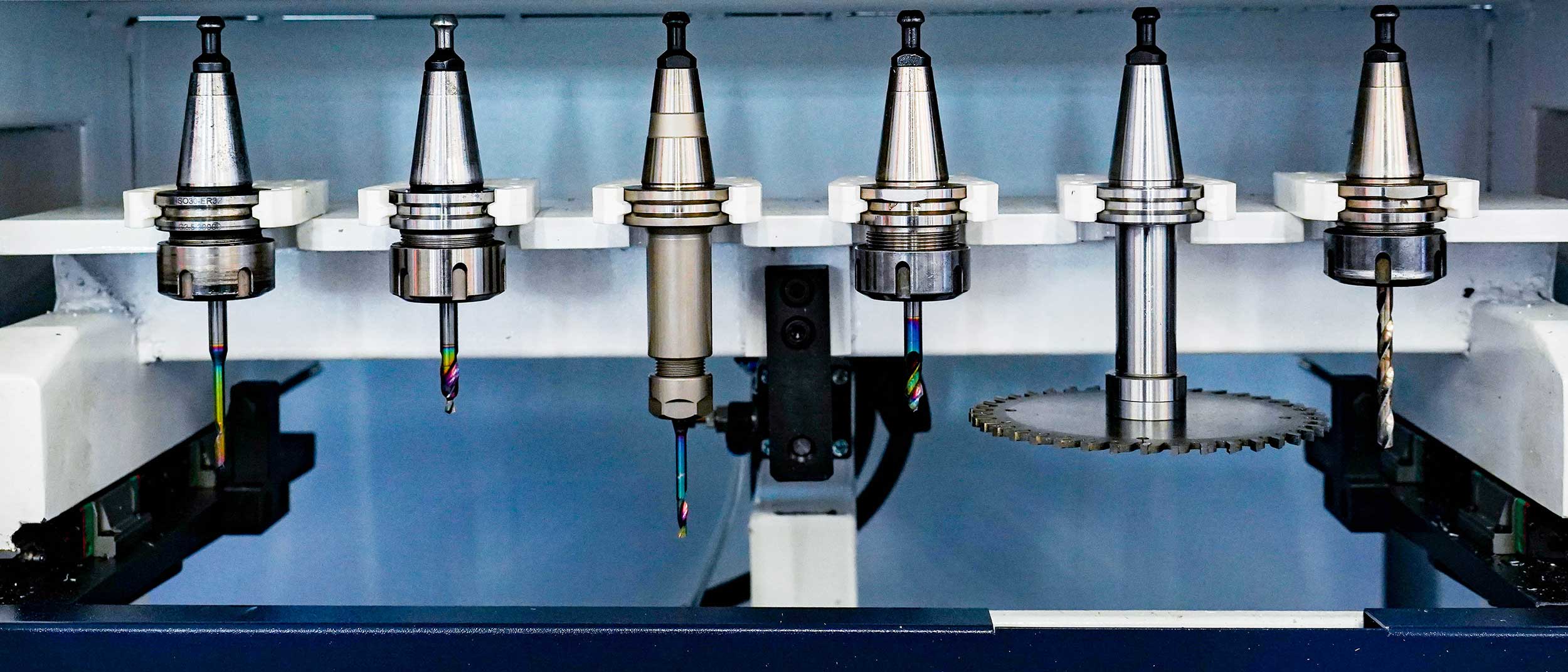

Tool storage magazine

Automatic positioning for servo-driven clamps

Specifications:

Machining Parameters	Parameter Value
Max. processing length	3,200 mm
Processing profile width	150 mm
Processing profile height	150 mm
Machining direction	3 (top, rear, front)

Machining Precision	Parameter Value
Processing accuracy	± 0.1 mm
Cutting surface roughness	Ra12.5μm
Repeat positioning accuracy	± 0.02m

Technical Parameters	Parameter Value
Tool Magazine	6 (3 standard, 3 Optional )
Clamp	4
Spindle	9.5 KW
X-Axis Travel Speed	0~97.5 m/min
Y-Axis Travel Speed	0~30 m/min
Z-Axis Travel Speed	0~30 m/min
X-axis Traverse Path	3,200 mm
Y-axis Traverse Path	400 mm
Z-axis Traverse Path	300 mm

General Parameters	Parameter Value
Power Supply	380V/50Hz
Power	16KW
Machine size (L×W×H)	4,700×2,100×2,270 mm
Machine weight	3,100 KG
Air pressure	0.5-0.8 MPa
Air consumption	50L/min
