Emerald F550 5-Axis CNC Machining Center

5-Axis CNC Machining Center

Model: Emerald F550

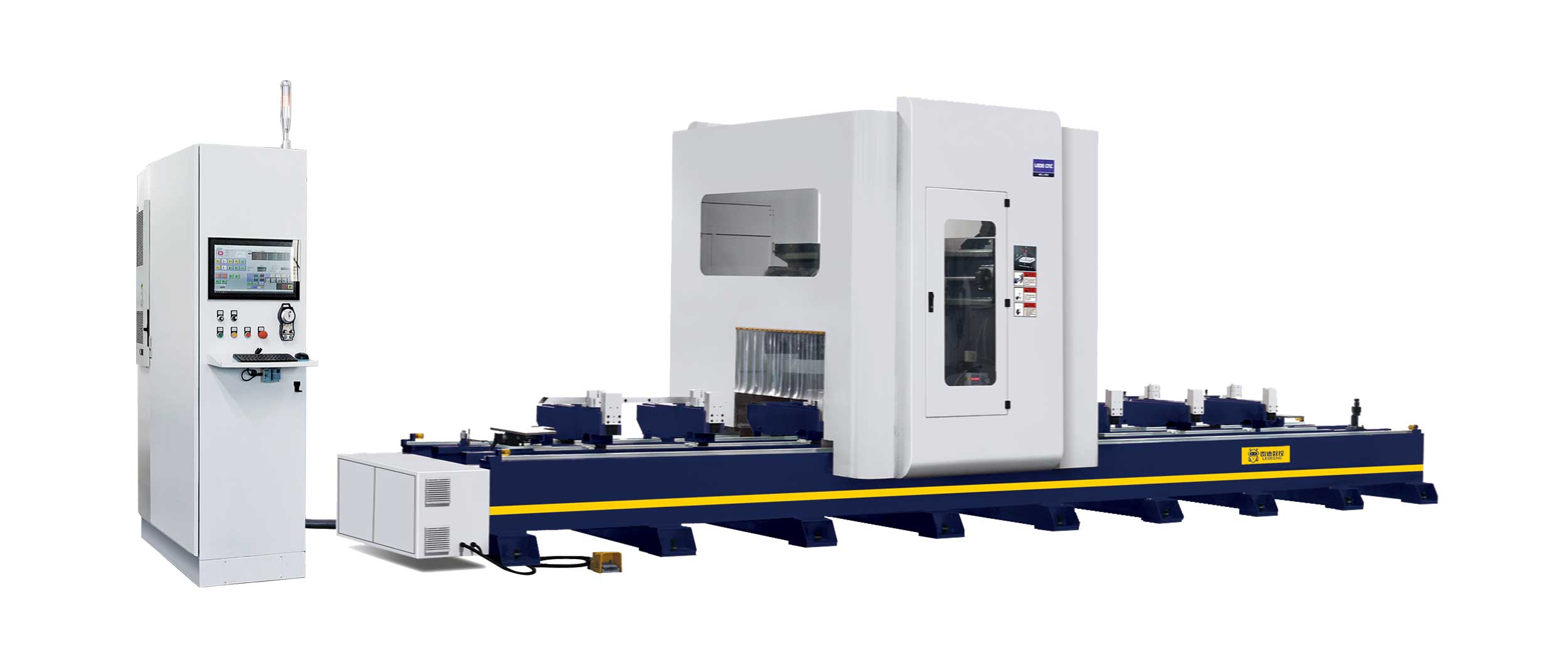

Emerald F550 – A 5-Axis CNC Machining Center

Designed for high-precision milling, cutting, and machining of aluminum and light alloy profiles, the Emerald F550 features a robust gantry structure, advanced automation, and seamless software integration.

Key Features:

  • 5-Axis Machining: Capable of high-precision milling and cutting with multi-angle capabilities.

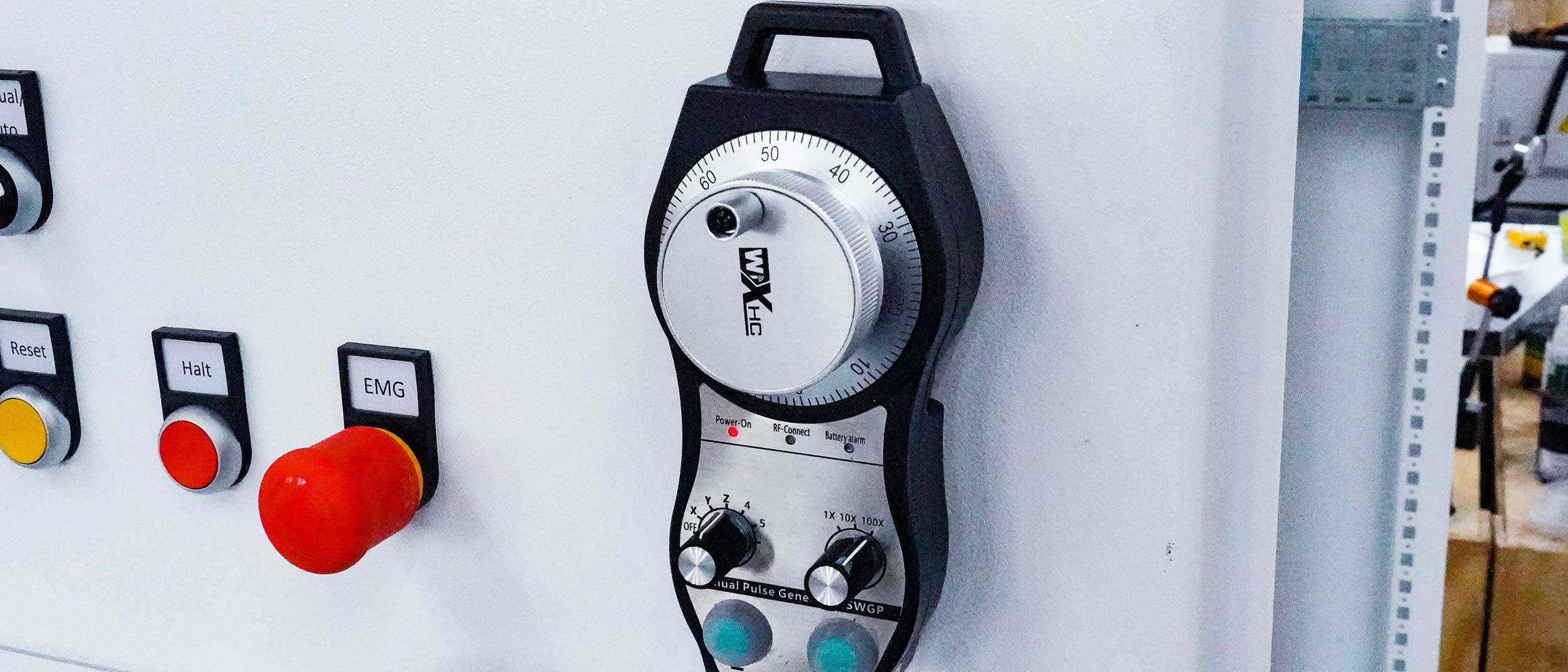

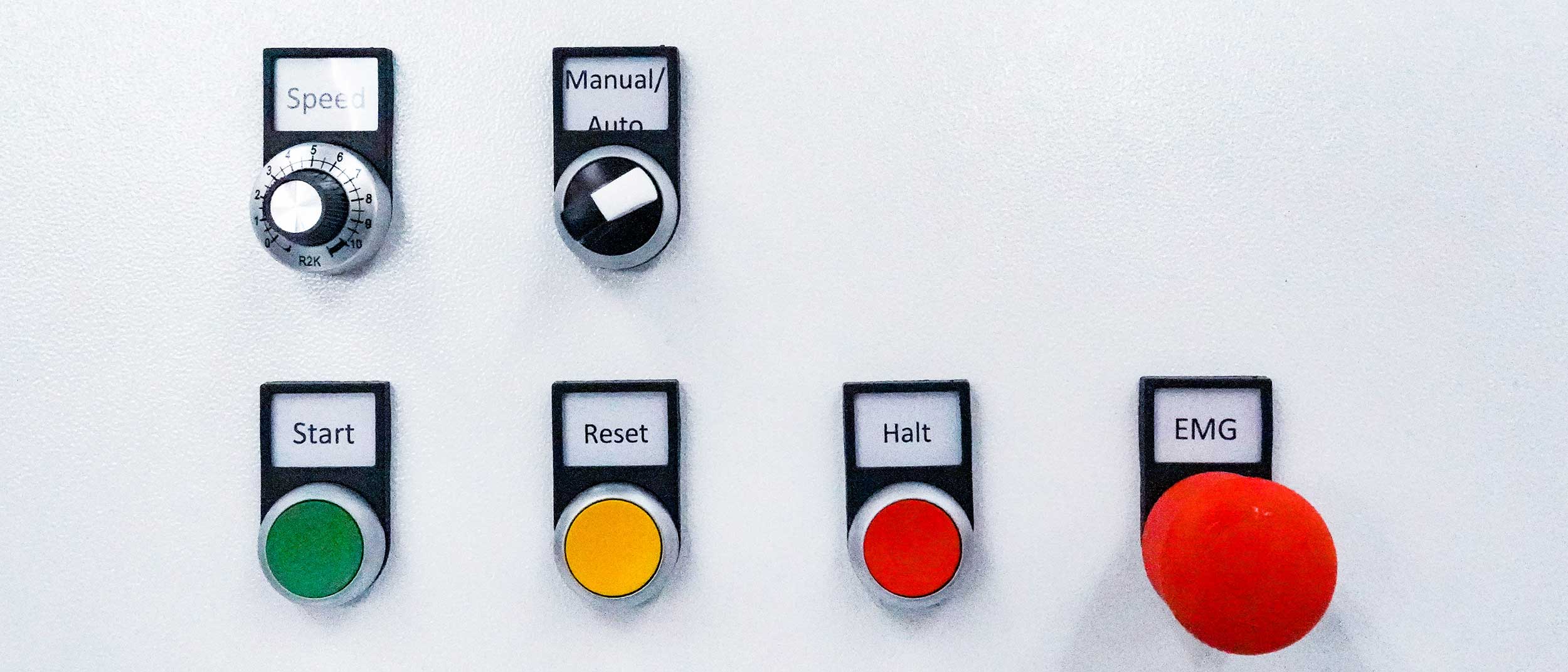

  • User-Friendly Operation: Connects with ERP software, allowing barcode-based automatic processing.

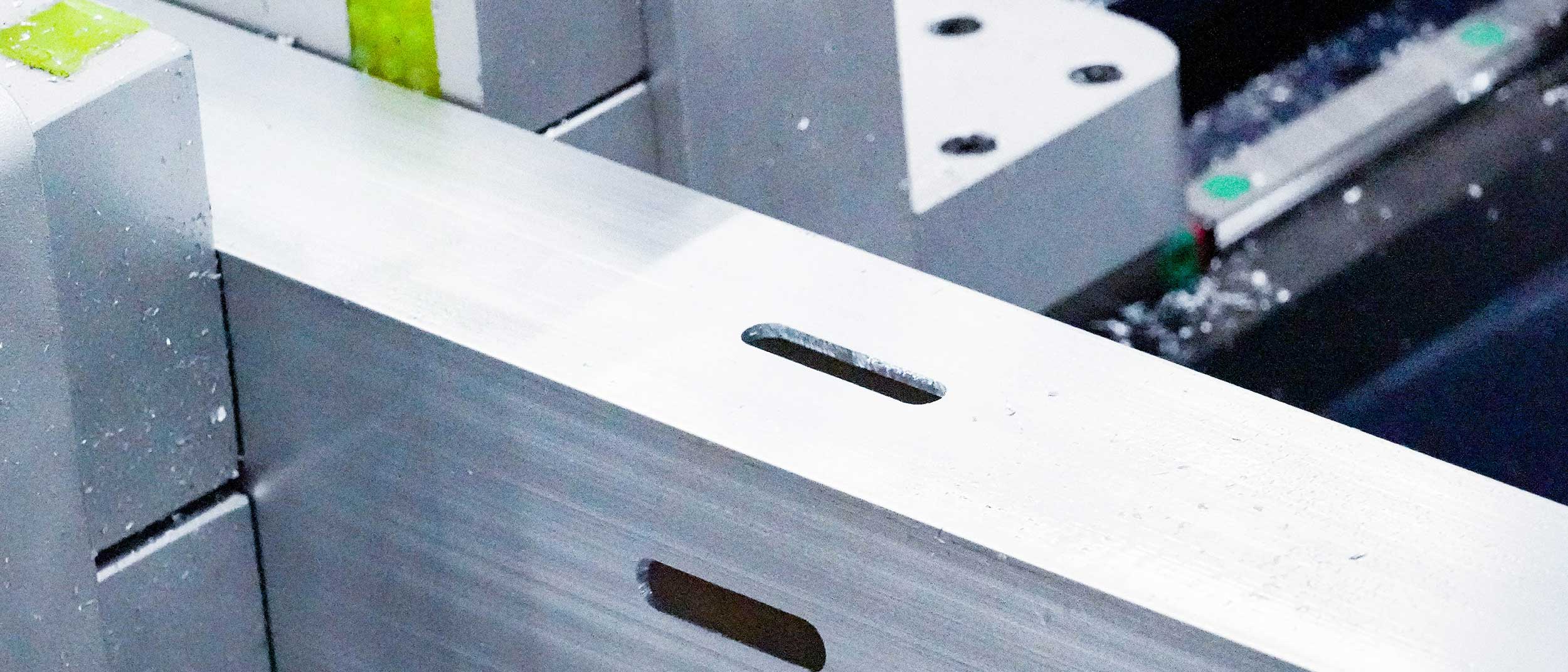

  • One-Step Clamping: Capable of completing all machining tasks in one setup, including sawing, milling end tenons, lock slots, drainage grooves, pressure balance holes, and installation holes. Effectively a "one-person" window production line.

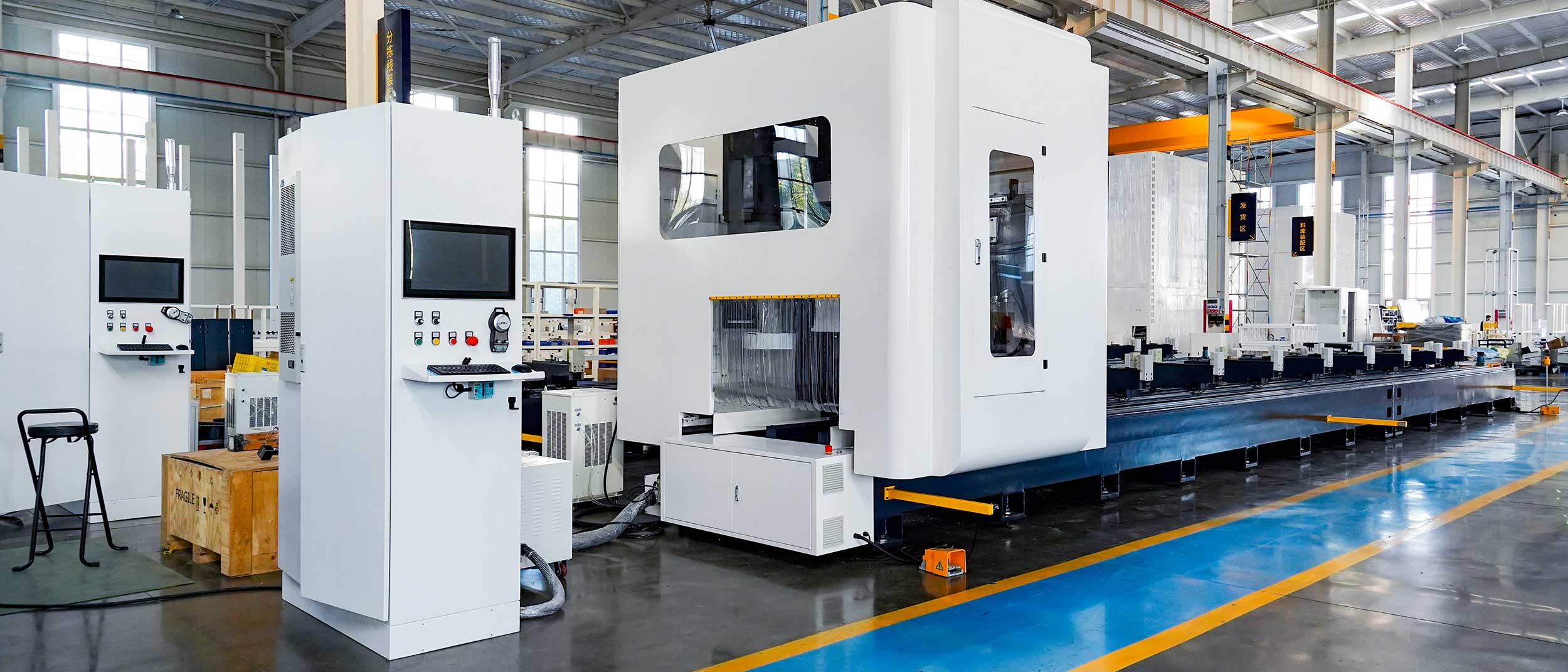

  • Advanced Gantry Structure: Features a moving beam and moving column gantry design for stable operation and enhanced machine rigidity.

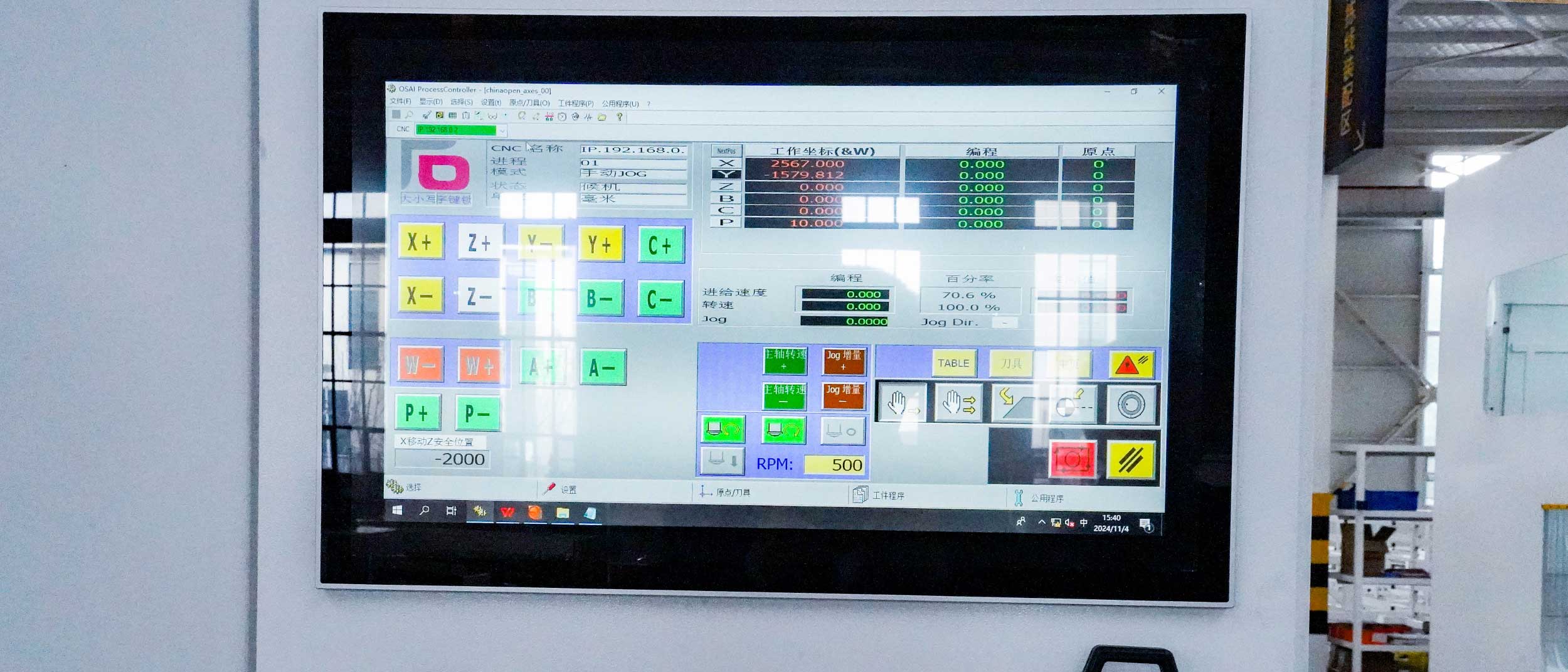

  • High-End CNC System: Equipped with premium CNC systems from Beckoff (Germany).
  • Precision Components: Utilizes imported high-quality servo motors, ball screws, linear guides, and bearings, ensuring high processing accuracy, stability, and reliability. Pre-tensioning of feed movement maintains precision.
  • Imported Five-Axis Head: Allows machining at any angle on all surfaces except the bottom. Includes an automatic tool changer with a disc-type tool holder.
  • Centralized Lubrication: Centralized and timed lubrication maintains precision stability.

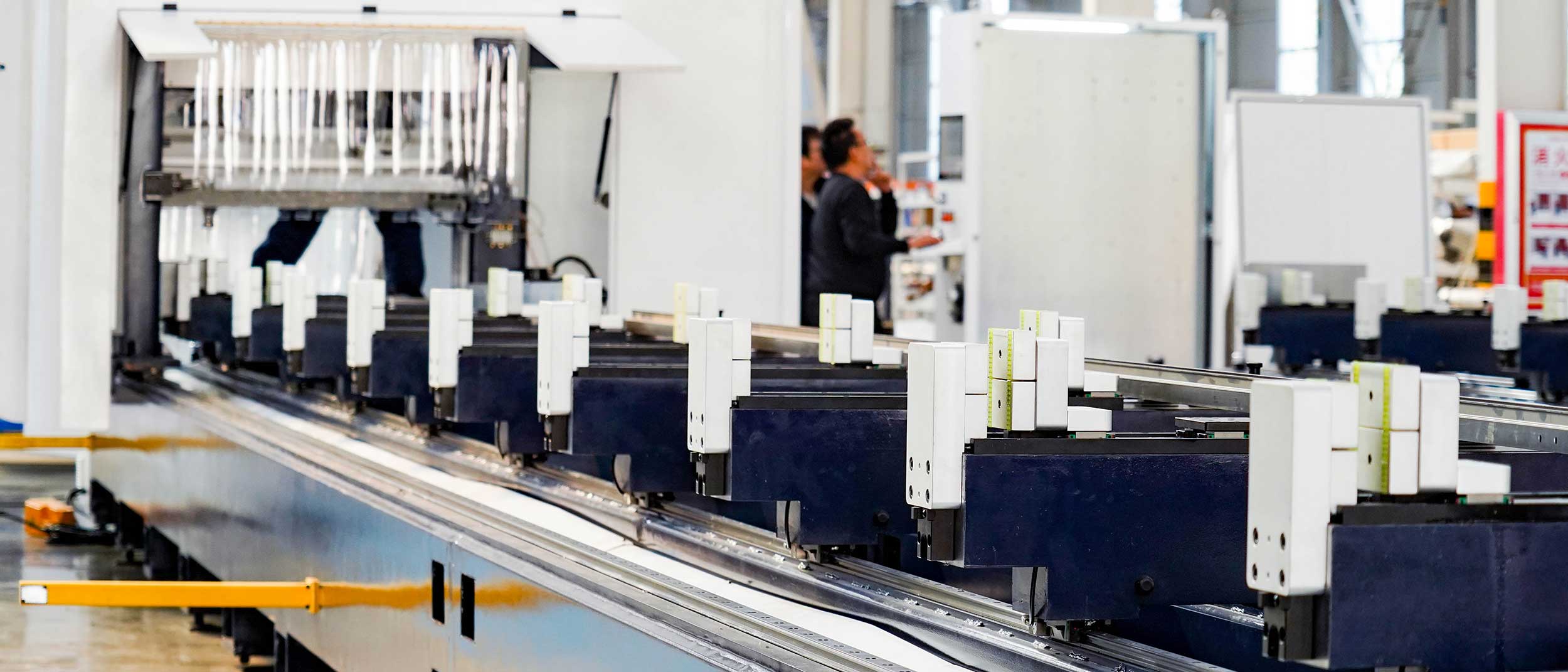

  • Pneumatic Clamping Table: Speeds up loading and unloading.
  • High-Accuracy Measurement: Equipped with Renishaw interferometers for precision compensation.
  • Dual Working Zones: Two independent working zones improve production efficiency.
  • System Protection: Includes UPS and AC to protect the operating system.
Drilling and Milling
Sawing
Tool Magazine

Specifications:

Machining Specifications Parameter Value
X-axis stroke 7,000/9,000/12,000mm
Y-axis stroke 1,730mm
Z-axis stroke 670mm
X-axis travelling speed 0~60m/min
Y-axis travelling speed 0~30m/min
Z-axis travelling speed 0~30m/min
B-axis swivel range ±185°
C-axis swivel range ±320°
B-axis speed Max120°/S
C-axis speed Max120°/S
Positioning accuracy ±0.03mm
Repeat positioning accuracy ±0.01mm
Cutting surface roughness Ra12.5µm
Spindle HSK-63F S1=15KW S6=17KW 24,000rpm
Type of tool magazine Bucket hat type
Tool magazine capacity 12-18 pcs
Lubrication/cooling system Automatic
Clamp 8
General Specifications Parameter Value
Power 25KW
Power supply 380V/50Hz
Air pressure 0.6-0.8Mpa
Air consumption 120L/min
Weight 11,000kg
Overall Dimension 11,200×3,000×3,200mm

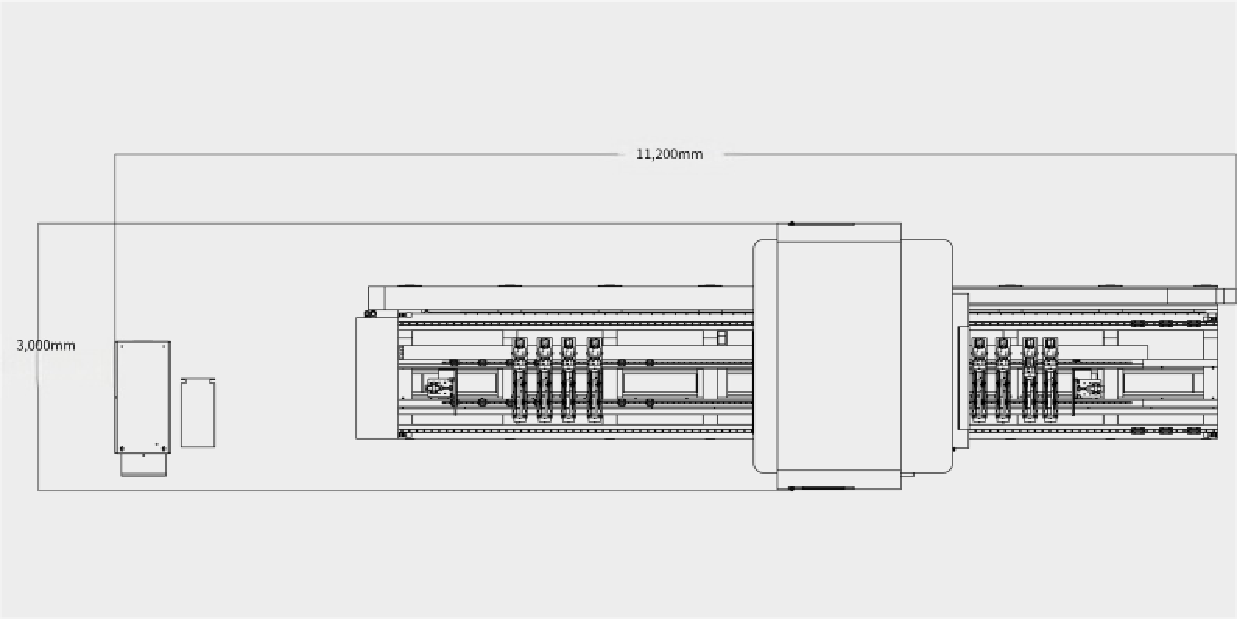

Layout:
