Aluminium Door and Window Machine

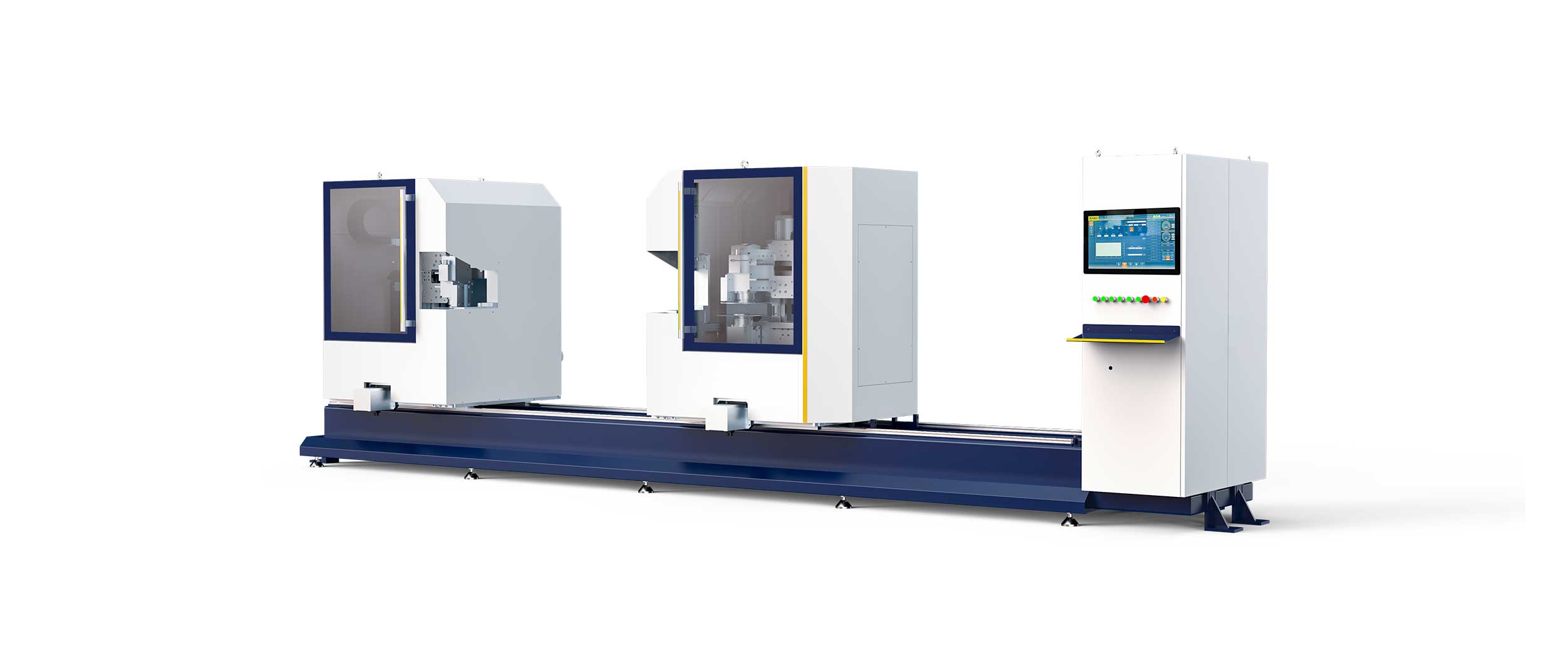

Diamond 350DR Intelligent End Milling Machine

Intelligent End Milling Machine

Model: Diamond 350DR

High-Efficiency Automated Milling Machine – Designed for Aluminum Windows, Doors, and Curtain Walls.

This machine offers high automation, precision, and production efficiency while reducing labor costs and simplifying maintenance.

Key Features:

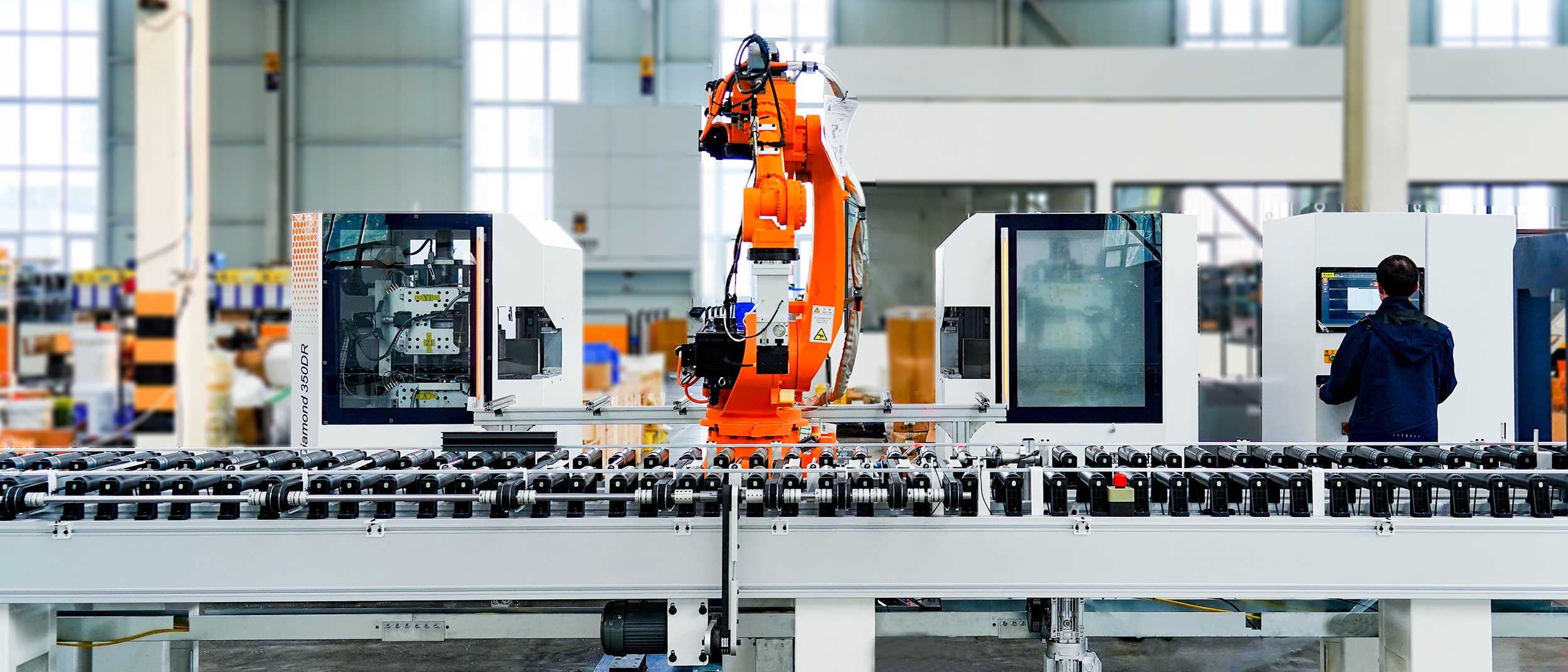

  • Automatic Feeding, Milling, and Unloading: Seamless operation with feeding, pushing, and unloading devices.
  • Software Integration: Supports seamless integration with various software systems to boost productivity and quality.

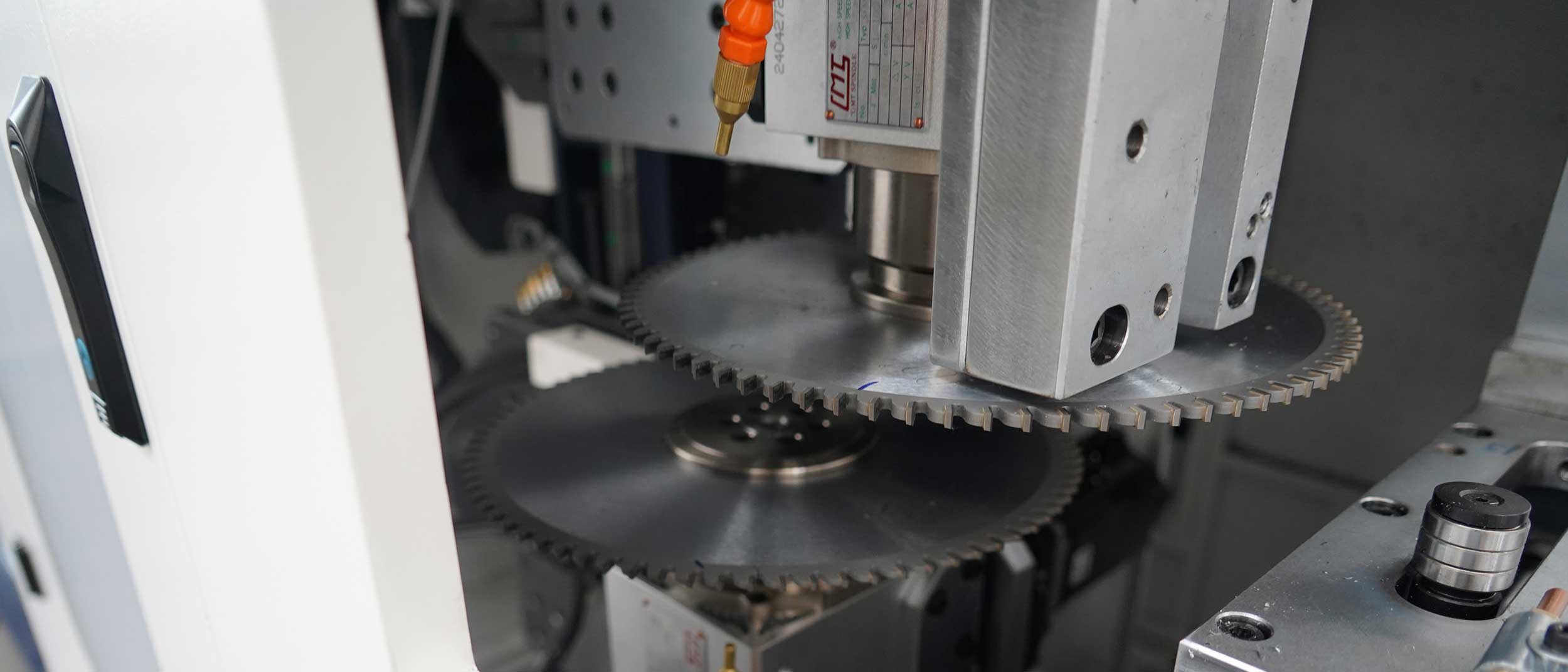

  • Dual Movable Milling Heads: Two milling heads for versatile machining.

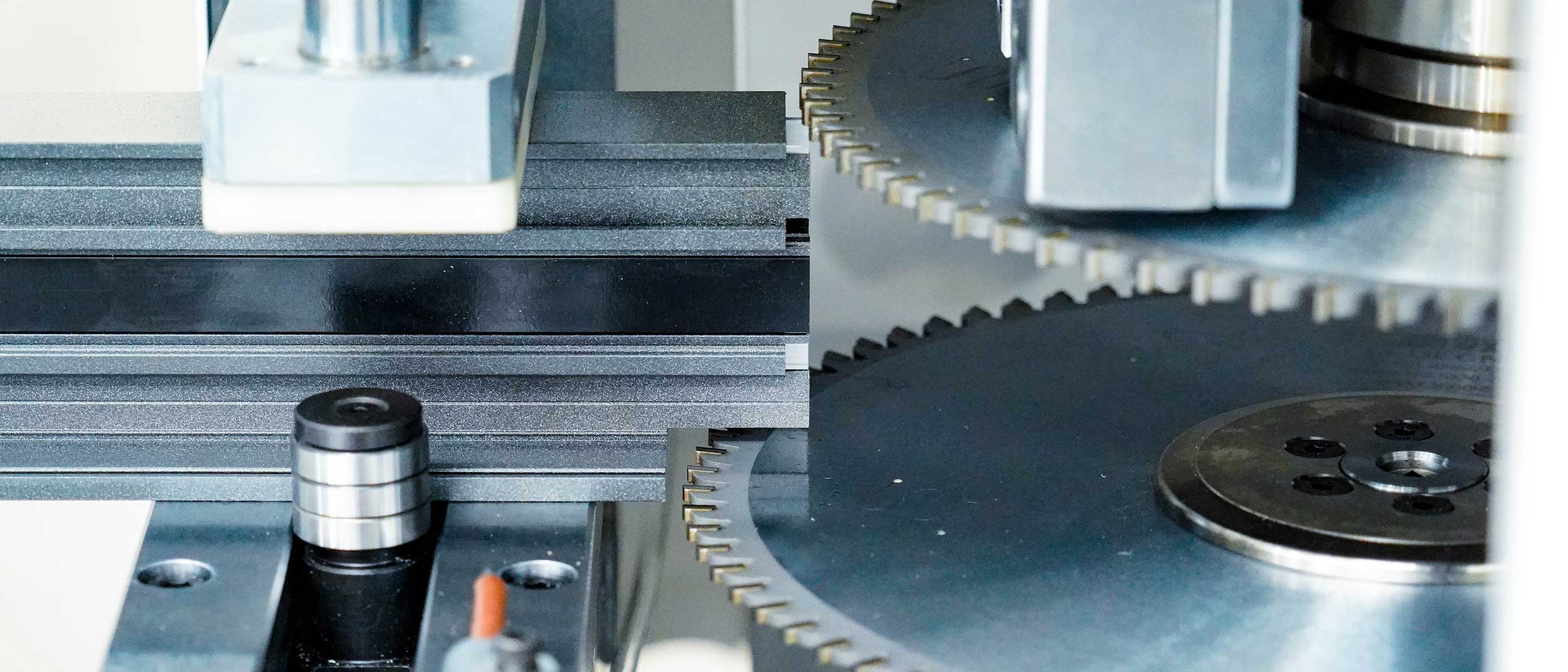

  • Adjustable Saw Blade: Machining angles from 0° to 90° for flexible operations.
  • CNC System: Ensures precision and control for complex tasks.
Intelligent operating system
Servo-controlled tool lateral machining
Servo-controlled tool longitudinal machining

Specifications:

Machining Parameters Parameter Value
Max. processing length 360-3,000 mm
Processing profile width 50-150 mm
Processing profile height 50-130 mm
Machining Precision Parameter Value
Processing Precision ± 0.1 mm
Repeatable positioning accuracy ± 0.02 mm
Cutting surface roughness Ra12.5 µm
Technical Parameters Parameter Value
Cutting tool diameter max 300 mm
Saw blade φ300×5.5×φ30 φ300×3.2×φ30 mm
Feed speed 0~3 m/min
General Parameters Parameter Value
Machine size (L×W×H) 6,400mm×1,400mm×1,900mm
Machine weight 3,500 KG
Air pressure 0.5-0.8 MPa
Air consume 400V 50HZ, 22.5KW
Air consumption per minute approx 200L with spraying
Power output per motor 2.2 kw
Motor speed 2,800 r/min

Documentation

Diamond 350DR Intelligent End Milling Machine

A high-efficiency automated milling machine for aluminum windows and doors, offering precision, automation, reduced labor costs, and a 0° to 90° adjustable saw blade for enhanced productivity and quality.
